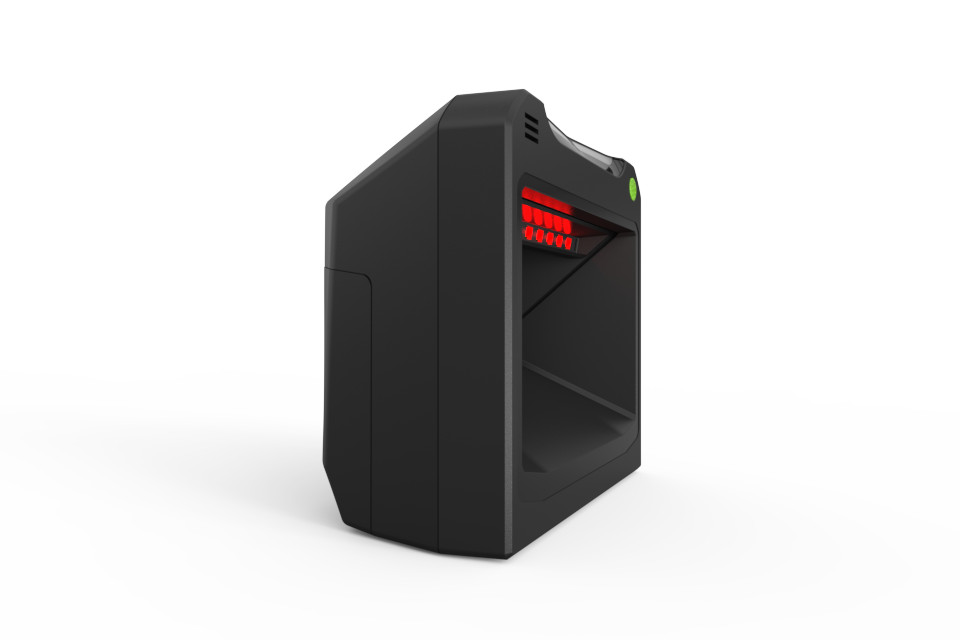

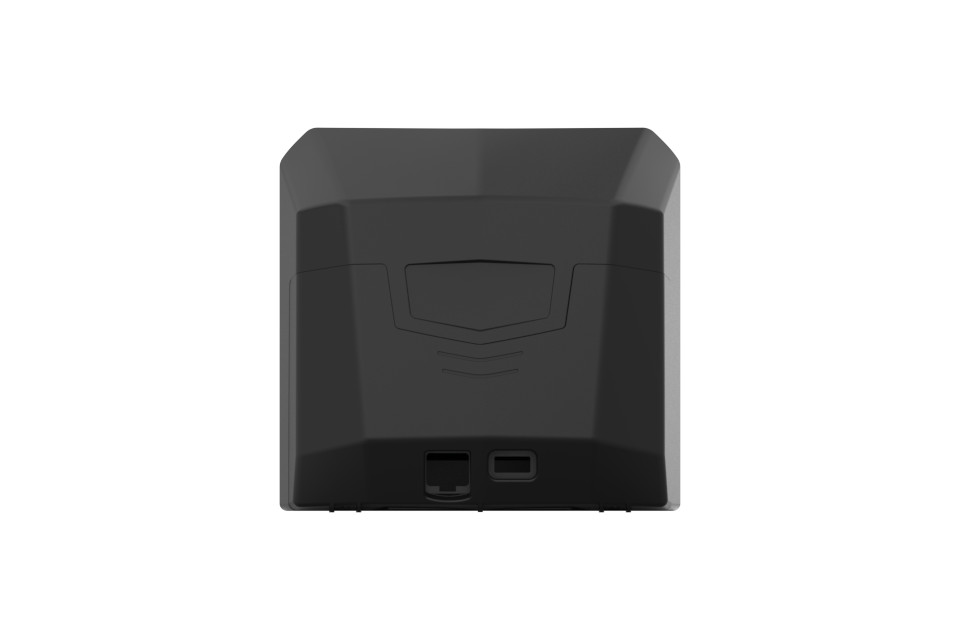

DT-9800 is an omnidirectional presentation imager. It provides high performance 2D CMOS imager with elegant and durable design which makes the DT-9800 suitable for point-of-sale (POS) check-out applications, reading e-barcodes in marketing promotion applications, medical industry and banking industry. DT-9800 is engineered to decode most of standard 1D, PDF and 2D codes easily. E-barcodes and poorly printed codes are readable. Retailers can accommodate customers who download mobile coupons, mobile loyalty cards and more. Restaurants can accept mobile coupons at the register. Hotels can allow guests to use electronic loyalty cards stored on their mobile phones, eliminating the need to carry physical cards. Theaters, theme parks and stadiums can scan e-tickets as easily as a paper ticket. They can offer customers an added convenience: paperless ticketing.
specification
General
Interface
USB-KB / USB-COM / RS-232
Readable Codes 1D
UPC-A, UPC-E, EAN-13, EAN-8, Code 128, GS1-128, Code-39, Code-32, Code-93, Pharmacode Codabar/NW7, MSI, Interleaved 2 of 5, GS1 DataBar-14, GS1 DataBar Stacked, GS1 DataBar Limited GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, Composite Component A / B / C
Readable Codes 2D
PDF 417, MicroPDF 417, QR Code, Micro QR Code, Dara Matrix, Aztec, Maxi Code, Dot Code
Optical
Optical System
1280 H x 800 V pixels
Light Source
Illumination: Red 630nm LEDs
Resolution
3mil Code-39, 6.67mil DataMatrix
Frame Rate
60 FPS
Field of View
Horizontal: 61°; Vertical: 41°
Indicator
Speaker, LED
Electrical
Voltage
DC 5V
Scanning Currents
230 mA
Standby Currents
160 mA
Environment
Operating Temperature
0 °C to 40 °C (32ºF to 104ºF)
Storate Temperature
-40°C to 70 °C (-40ºF to 158ºF)
Relative Humidity
5% - 95% RH (non-condensing)
Shock resistance
1.5m drops
Physical
Weight
510g w/cable
Dimensions
148.8mm (W) x 97.41mm (H) x 142.59m (D)
Housing Material
PC + ABS plastic
Cable
Length: 5ft (150cm), USB Type: A, RS-232
Warranty
1 year
Certificate
CE / FCC
