Hand Free Area Image Scanner

DT-6800

  • Read 4 mil minimum barcode resolution
  • Read all 1D standard and 2D barcodes
  • Wide reading angle
  • Adjustable body

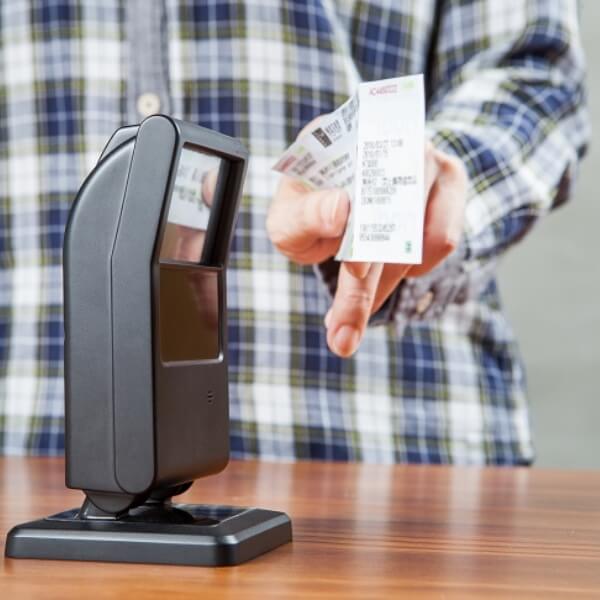

DT-6800 is an omnidirectional presentation imager. It provides high performance 2D CMOS imager with elegant and durable design which makes the DT-6800 suitable for point-of-sale (POS) check-out applications, reading mobile phones in marketing promotion applications, manufacturing applications, medical industry and banking industry.  DT-6800 engineered wide angle lens to decode most of standard 1D, PDF and 2D codes easily. Mobile phone and poorly printed codes are readable. Retailers can accommodate customers who download mobile coupons, mobile loyalty cards and more. Restaurants can accept mobile coupons at the register. Hotels can allow guests to use electronic loyalty cards stored on their mobile phones, eliminating the need to carry physical cards. Theaters, theme parks and stadiums can scan mobile tickets as easily as a paper ticket. They can offer customers an added convenience: paperless ticketing.

specification

General

  • Interface

    USB-KB / USB-COM / RS-232

  • Barcode Supported (1D)

    UPC/EAN/(UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 ISBN, Code 39, Code 39 Full ASCII, Code 32 / Italian Pharmacode, Code 128, Code 93, Codabar/ NW7, Interleaved 2 of 5,Industrial 2 of 5,Matrix 2 of 5,MSI, GS1DataBar, (Stacked, Limited, Expanded, Expanded Stacked)

  • Barcode Supported (2D)

    PDF417, Micro PDF417, Data Matrix, QR Code, MicroQR Code, Aztec, MaxiCode

Optical

  • Optical System

    752 H x 480 V pixels

  • Light Source

    Illumination: 630nm LEDs , Aiming pattem: single dot 625nm LED

  • Resolution

    4 mil (Code 39), 5 mil (PDF417)

  • PCS

    30%

  • Field of View

    Horizontal: 46.1°; Vertical: 30.4°

  • Indicator

    Beeper and LED

Electrical

  • Voltage

    DC 5V  +/- 0.5V

  • Scanning Currents

    260mA

  • Standby Currents

    140mA

Environment

  • Operating temperature

    0 °C to 40 °C (32ºF to 104ºF)

  • Storage temperature

    -40°C to 70 °C (-40ºF to 158ºF)

  • Operating humidity

    10% ~95% RH non-condensing

  • Storage humidity

    10% ~95% RH non-condensing

  • Shock resistance

    1.5m drops

Physical

  • Weight

    300g (incl. cable)

  • Dimensions

    75.91mm (W) x 70mm (H) x 142.7mm (D)

  • Housing Material

    PC + ABS plastic

  • Cable

    Length: 5ft (150cm), USB Type: A, RS-232

  • Warranty

    1 year

  • Certificate

    CE / FCC
