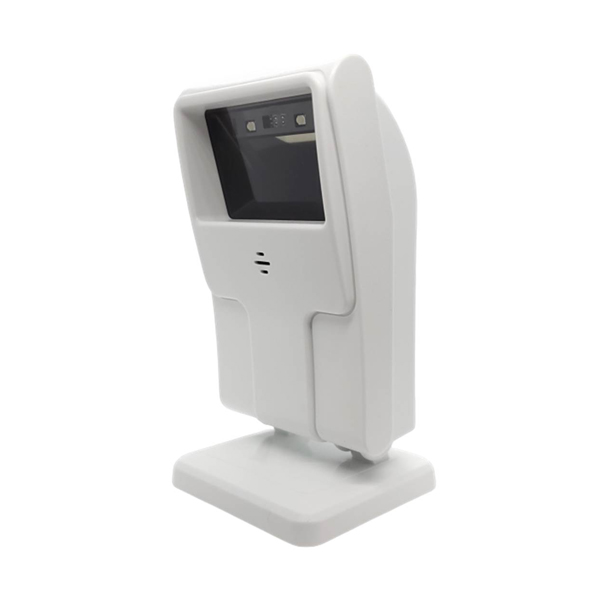

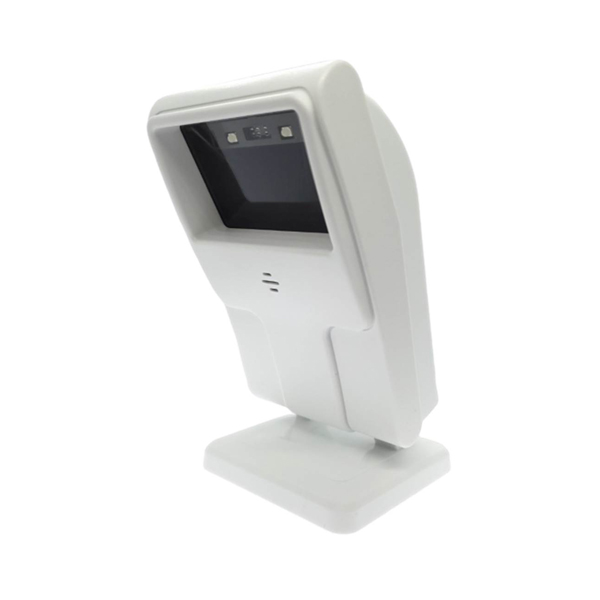

Antimicrobial Hand Free Area Imager
DT-6600 HC
- Read 4 mil minimum barcode resolution
- Auto-sense function saves power for improve life time
- Read all 1D standard and 2D barcodes
- Multi-interface solution
- With LEDs and speaker for scanning confirmation
Hands-free Barcode Scanner DT-6600HC is designed specifically for the application in a healthcare environment with antimicrobial protection to resist the growth of odor-and-stain-causing bacteria. It complies with JIS Z2801 : 2010 antimicrobial standard. The housing’s plastic material incorporates a silver inorganic antimicrobial agent that will not wear off during its lifetime and this provides an extra layer of protection against the growth of microorganisms. The DT-6600HC delivers outstanding scanning performance on all common 1D and 2D barcodes which making it also perfect for general purpose applications.
specification
General
Interface
USB-HID / USB-COM / RS-232
Barcodes Supported (1D)
UPC/EAN/(UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 ISBN, Code 39, Code 39 Full ASCII, Code 32 / Italian Pharmacode, Code 128, Code 93, Codeabar/ NW7, Interleaved 2 of 5, MSI, GS1DataBar, (Stacked, Limited, Expanded, Expanded Stacked)
Barcodes Supported (2D)
PDF417, Micro PDF417, Data Matrix, QR Code, MicroQR Code, Aztec, MaxiCode
Optical
Optical System
648 H x 488 V pixels
Light Source
Illumination: 630nm LEDs
Resolution
4 mil (Code 39), 7.5 mil (Data Matrix), 5 mil (PDF417)
Focusing Distance
Up to 267mm
Field of View
Horizontal: 48°; Vertical: 36°
PCS
30%
Indicator
Beeper and LED
Electrical
Voltage
DC 5V
Scanning Currents
< 230 mA
Environment
Operating Temperature
0℃ to 40℃ (32℉ to 104℉)
Storage Temperature
-40℃ to 70℃ (-40℉ to 158℉)
Relative Humidity
15% - 95% RH (non-condensing)
Shock Resistance
1.5m drops
Physical
Weight
305g w/cable
Dimensions
75.91mm (W) x 70mm (H) x 142.7mm (D)
Housing Material
PC + ABS plastic with Antimicrobial Additives (Silver inorganic antimicrobial agent)
Cable
Length: 5ft (150cm) / USB Type: A, RS-232
Warranty
1 year
Certificate
CE / FCC
