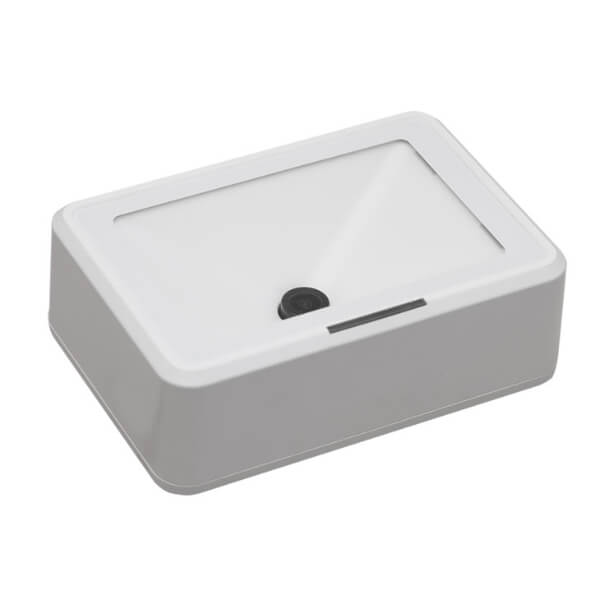

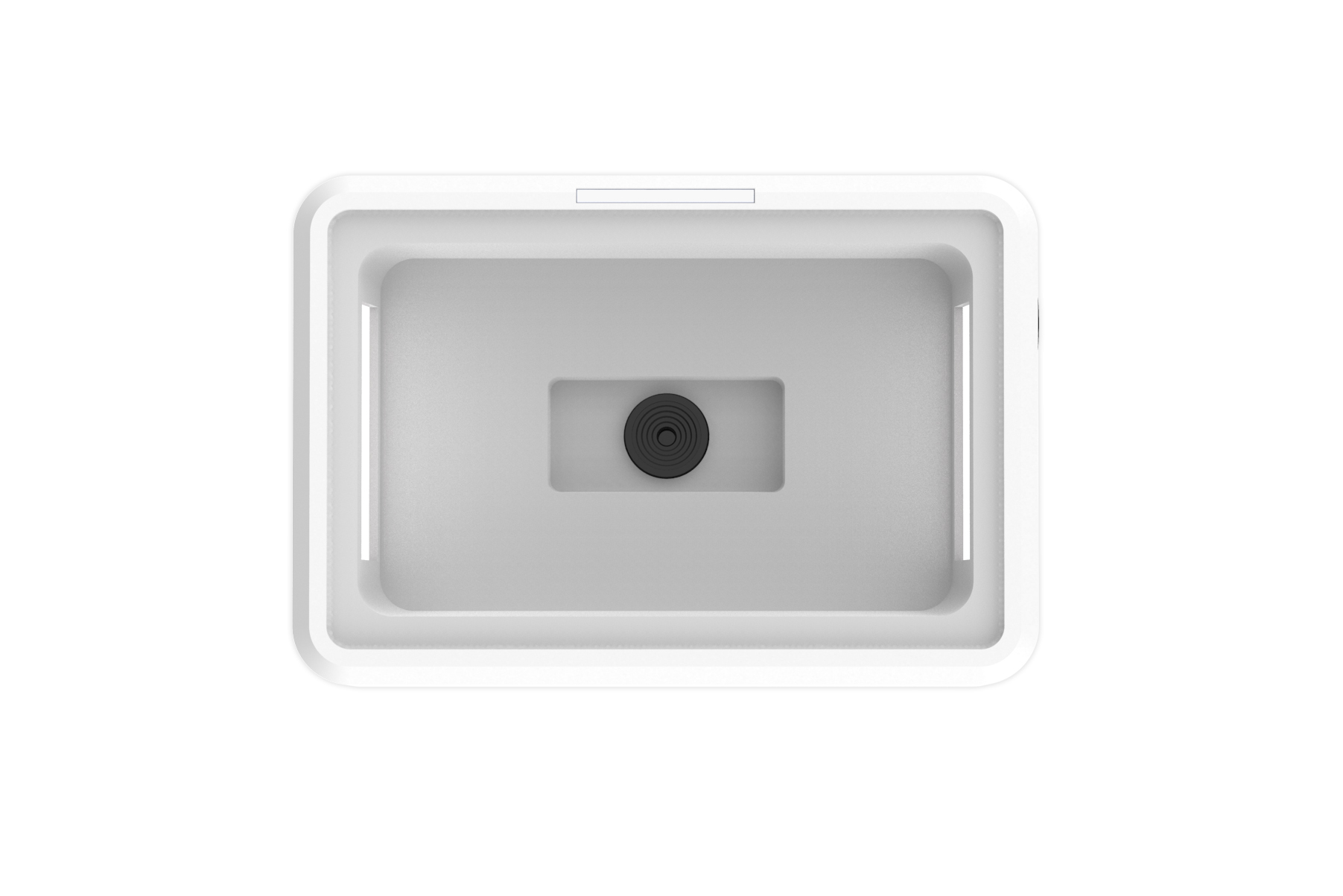

Stationary Area Imager
DT-20P
- Easy to scan e-barcode
- Scan area: 80mm x 60mm
- Stylish design
- Desktop or integrated in Kiosk

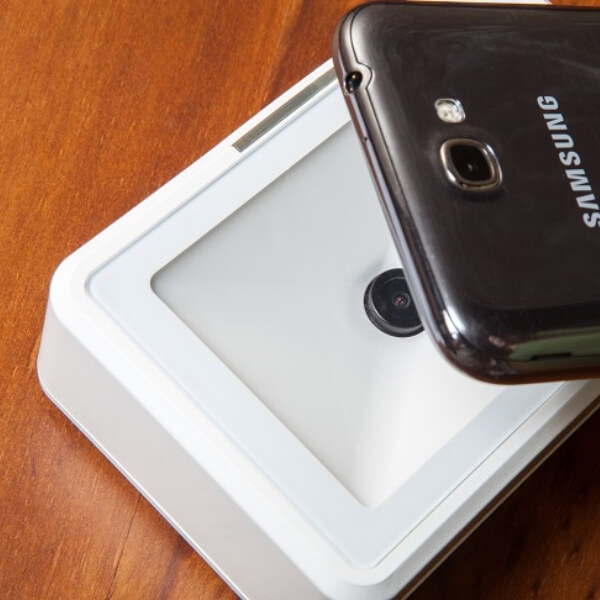

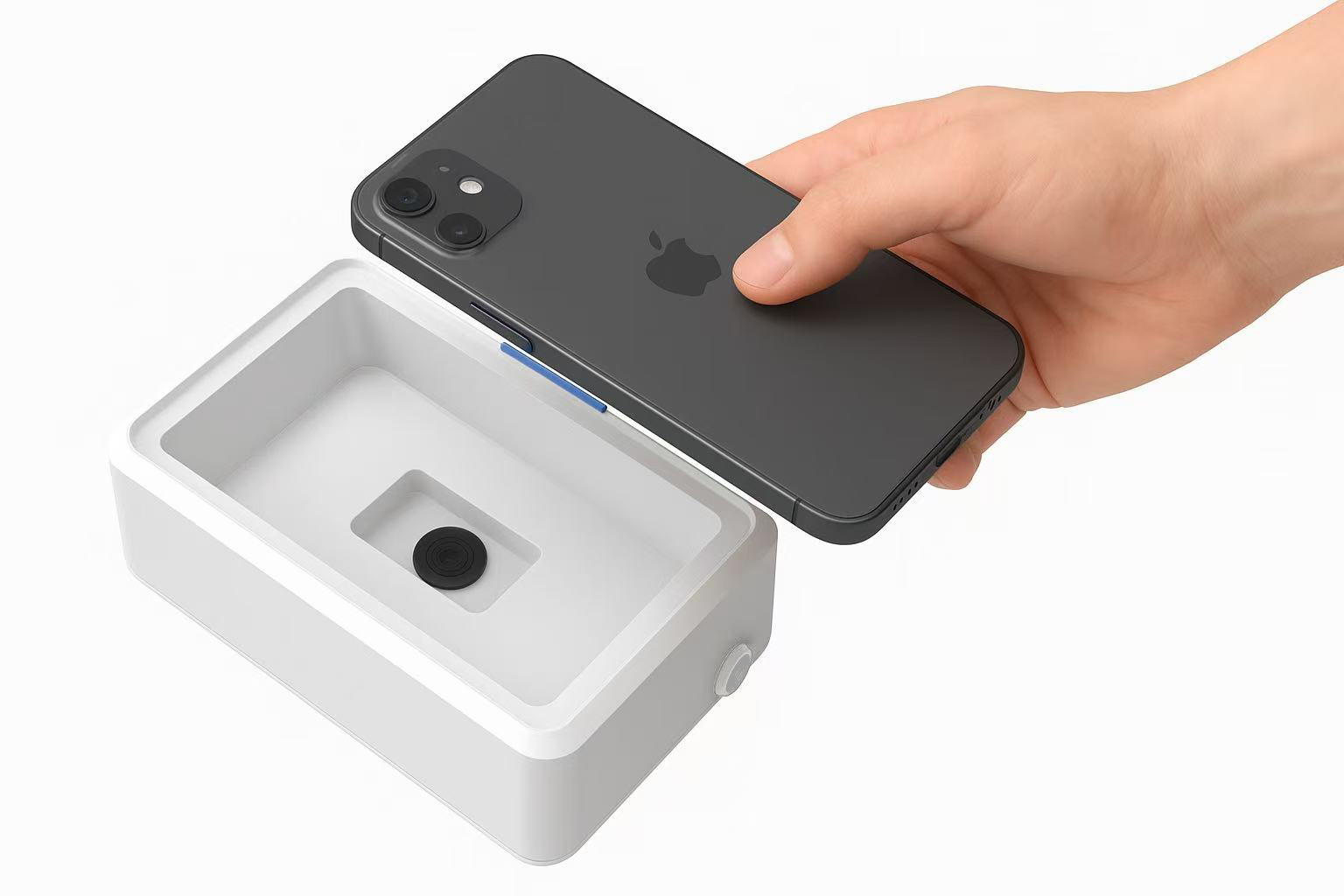

NUMA DT-20P stationary scanner is engineered to decode most of 1D, PDF and 2D codes. It’s excellent for reading smart phone QR codes and barcodes and also perfect performance for reading poorly printed codes on paper. It provides wide range of applications: such as retail stores connect to point-of-sale terminals to use mobile coupons, mobile loyalty cards promoting sales. Restaurants can accept mobile coupons at the register. Hotels can use electronic cards stored on guest’s smart phones. Theaters, theme parks, stadiums, museums can scan mobile tickets for entrance.
specification
General
Interface
USB-KB / USB-COM / RS-232
Readable Codes 1D
EAN-13/-8, (JAN-13/-8), UPC-A/-E, UPC/EAN(with add-on), Interleaved 2 of 5 (ITF), Standard 2 of 5 (STF), CODABAR (NW7), CODE 93, CODE 128, GS1-128 (EAN-128), GS1 DataBar (RSS)
Readable Codes 2D
QR code, Micro QR code, PDF417, Micro PDF, DataMatrix, Aztec, MaxiCode
Optical
Optical Sensor
1280 H x 1080 V pixels
Light Source
Illumination:3500K white LED
Minimum Resolution
3 mil Code39; 6.88 mil PDF
Frame Rate
120 FPS
Field of View
Horizontal: 70° ; Vertical: 62°
Print Contrast
15% minimum reflective difference
Scan Confirmation
Speaker and LED
Electrical
Voltage
DC 5V
Scanning Currents
500 mA
Environment
Operating Temperature
0 °C to 40 °C (32ºF to 104ºF)
Storage Temperature
-40 °C to 70 °C (-40ºF to 158ºF)
Relative Humidity
0% ~95% RH (non-condensing)
Shock Resistance
1.2m drops
Physical
Weight
230g (incl. cable weight)
Dimensions
128mm (L) x 88mm (W) x 45mm (H)
Housing Material
ABS plastic
Cable
Length: 5ft (150cm), USB Type: A, RS-232
Warranty
1 year
Certificate
CE / FCC / BSMI
