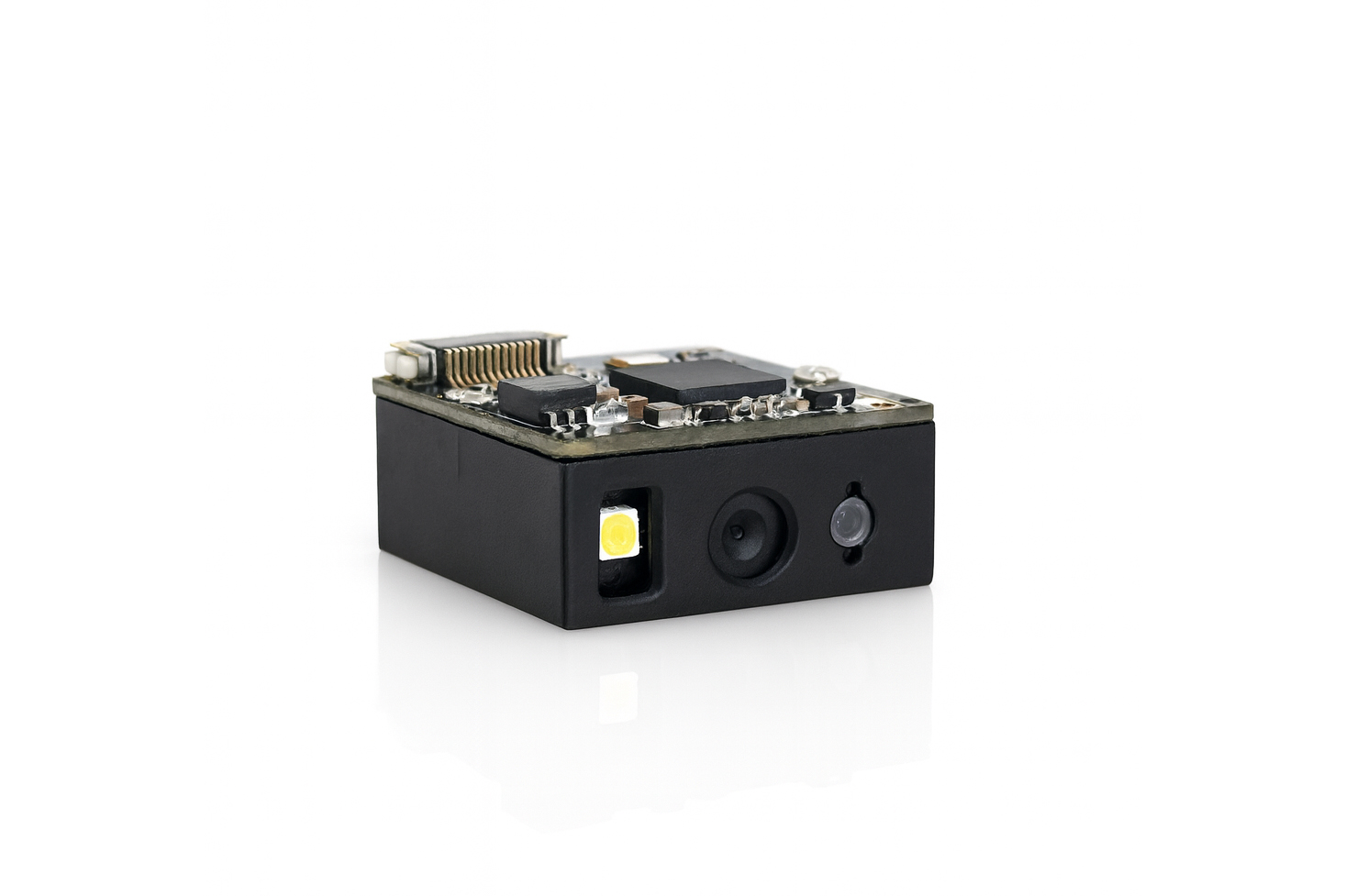

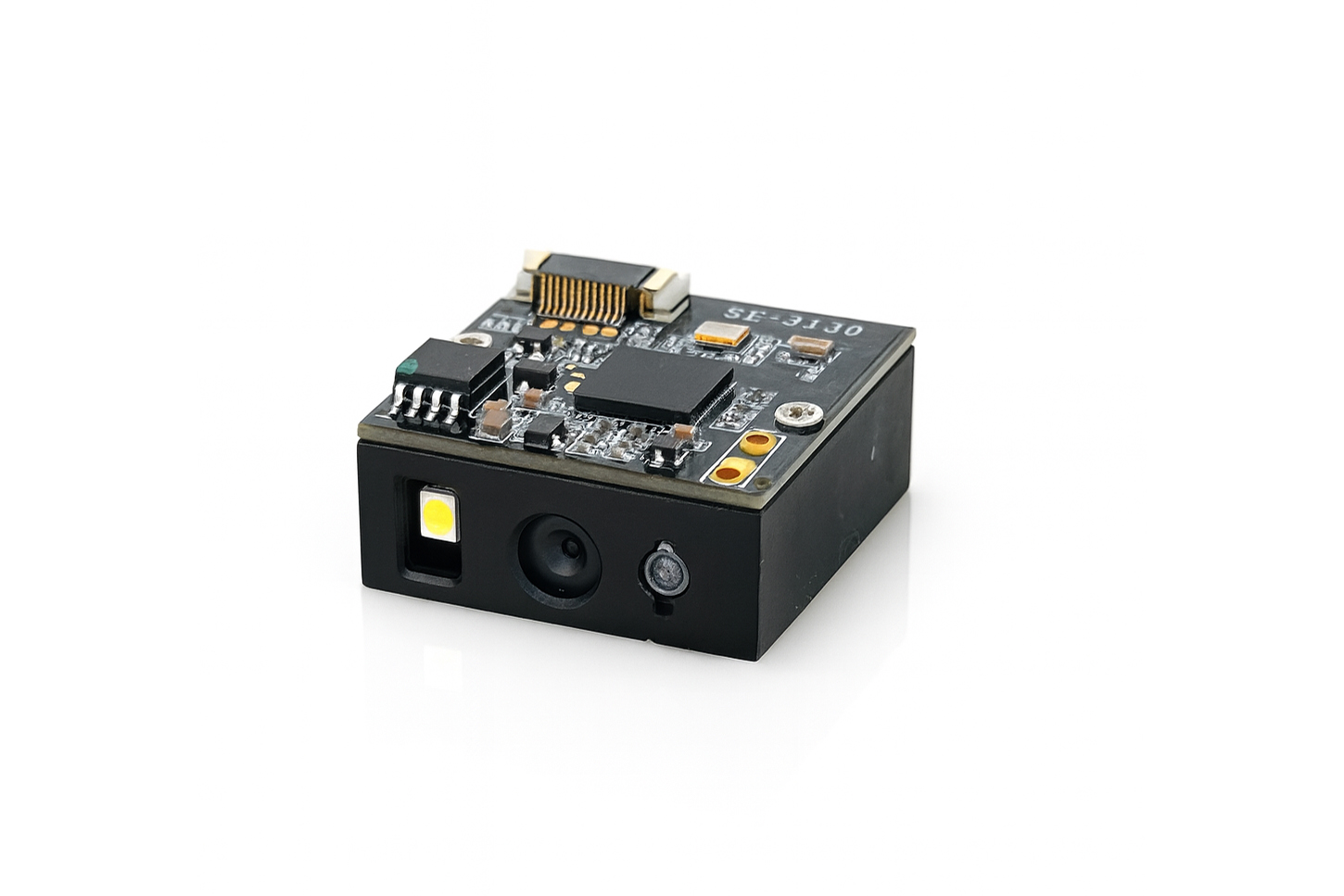

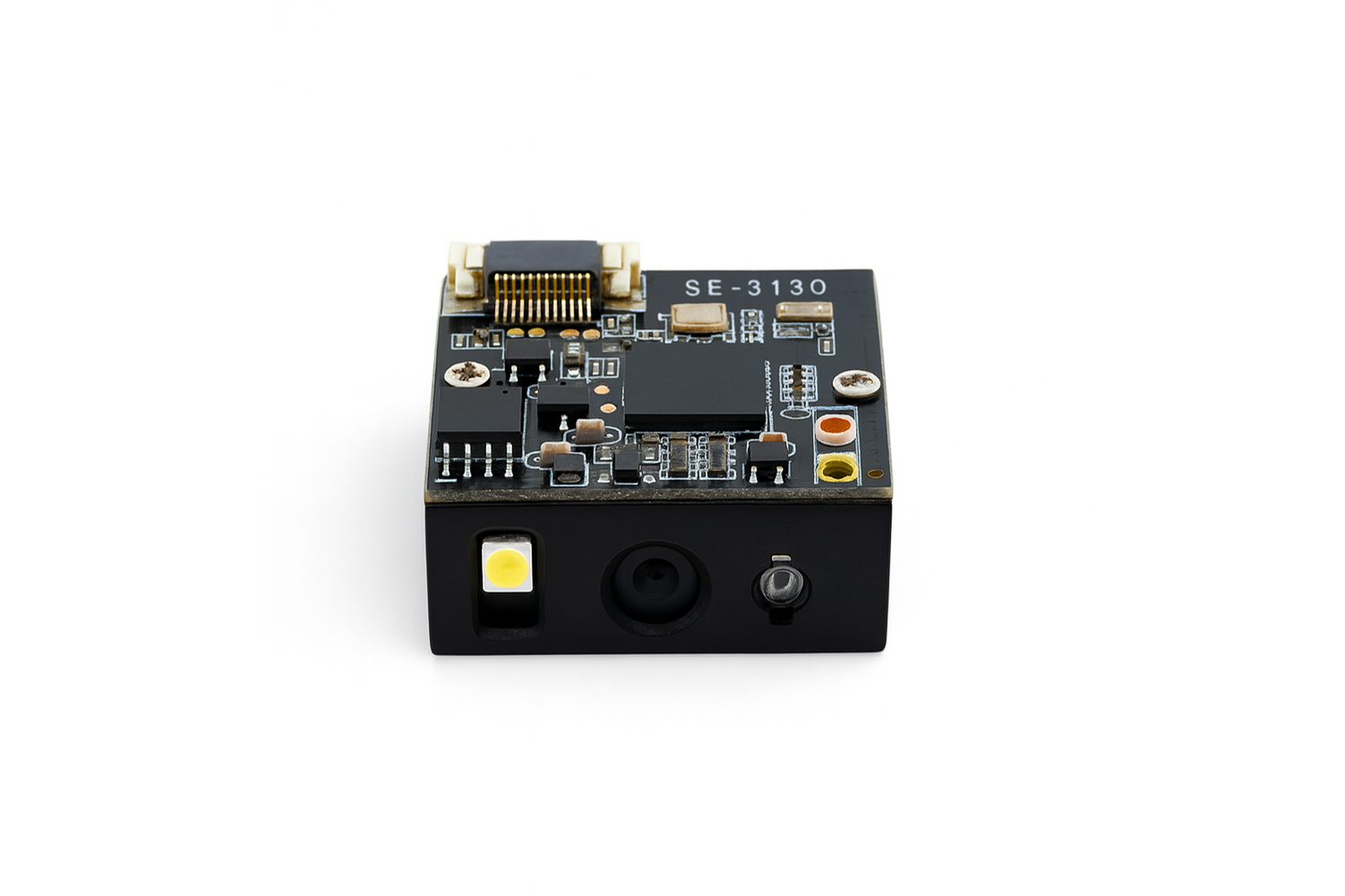

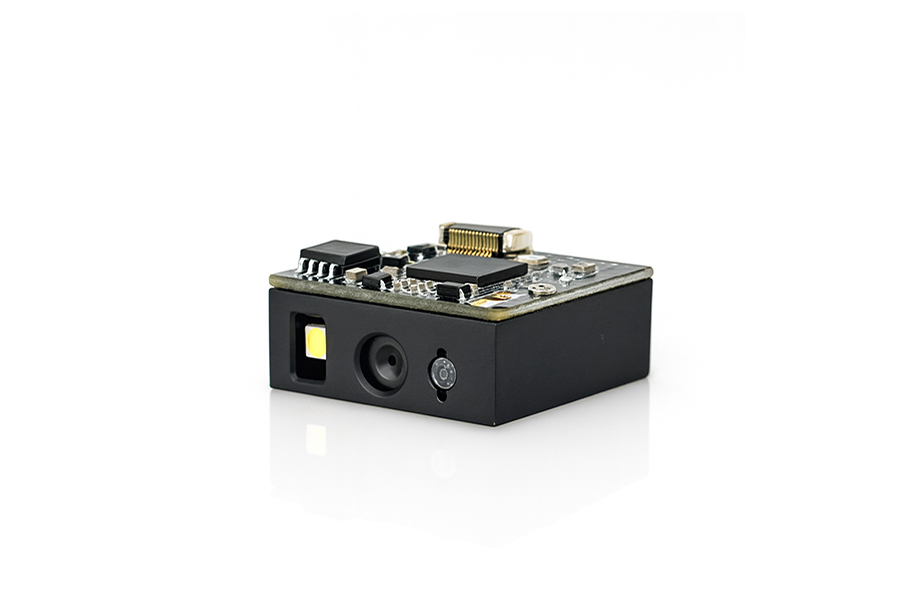

SE-3130 is a barcode scan engine which has powerful reading performance. Its small form factor can be integrated into various vending machines, barcode scanners or kiosks. With this scan engine you can reliably and consistently scan barcodes up to 18 cm.
specification
General
Interface
USB-KB / USB-COM / RS-232
Barcodes supported (1D)
All UPC/EAN/JAN, Code 39, Code 39 full ASCII, Code 32 / Italian Pharmacode, Code 128, CODABAR, Interleaved 2 of 5, MSI, Code 93, GS1 DataBAR 14, GS1 DataBar Expanded, GS1 Expanded Stacked, GS1 Data Bar Limited, GS1 Composite Component A/B/C
Barcodes supported (2D)
PDF 417, Micro PDF 417, DataMatrix, QR Code, Micro QR Code, Aztec, Maxicode, Dot Code
Optical
Optical sensor
640 (H) x 480 (V) Pixels
Light Source
610 nm RED LED / White LED 6000- 6,500K
Resolution
4 mil (Code 39), 6.6 mil (DataMatrix)
Depth of Field
Code 39 50 mm - 100 mm (4mil)
QR Code 45 mm - 110 mm (20mil)Frame Rate
120 fps
Field of View
Horizontal: 28°; Vertical: 36°
PCS
30%
Electrical
Voltage
3.3V - 5 V
Scanning Current
260 mA
Standby Current
88 mA
Environment
Operating Temperature
0℃ to 40℃ (32℉ to 104℉)
Storage Temperature
-40℃ to 70℃ (-40℉ to 158℉)
Operating Humidity
10 to 95% RH (Non-condensing)
Ambient Light
0~100000 lux (direct sunlight)
Storage Humidity 10% - 85% RH (Non-condensing)
Physical
Weight
5g
Dimensions
26(W) x20(D) x13(H)mm
Warranty
1 year
Cable FPC Cable: 12Pin Pitch 0.5
Certificate CE / FCC
