NRS-60

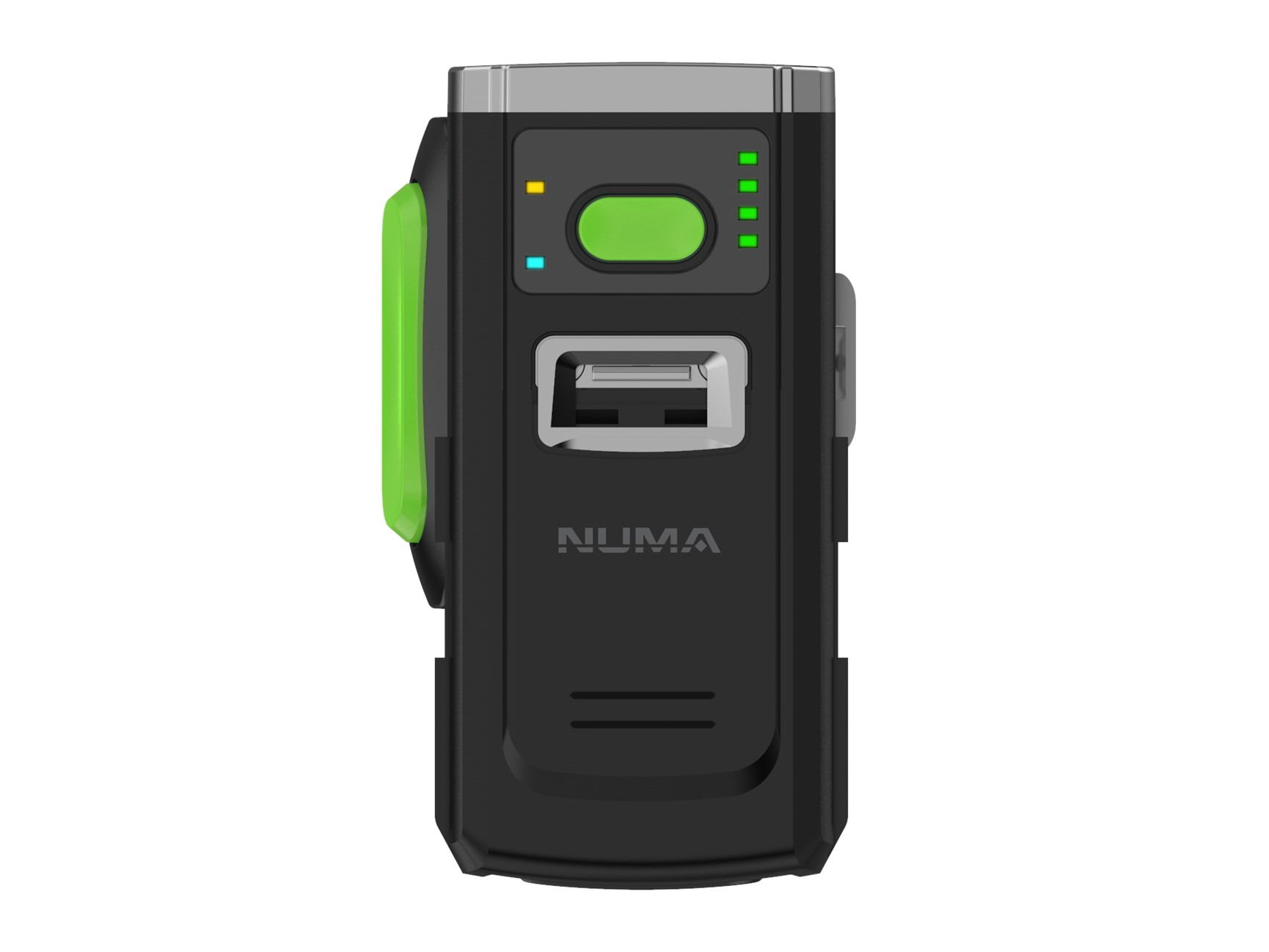

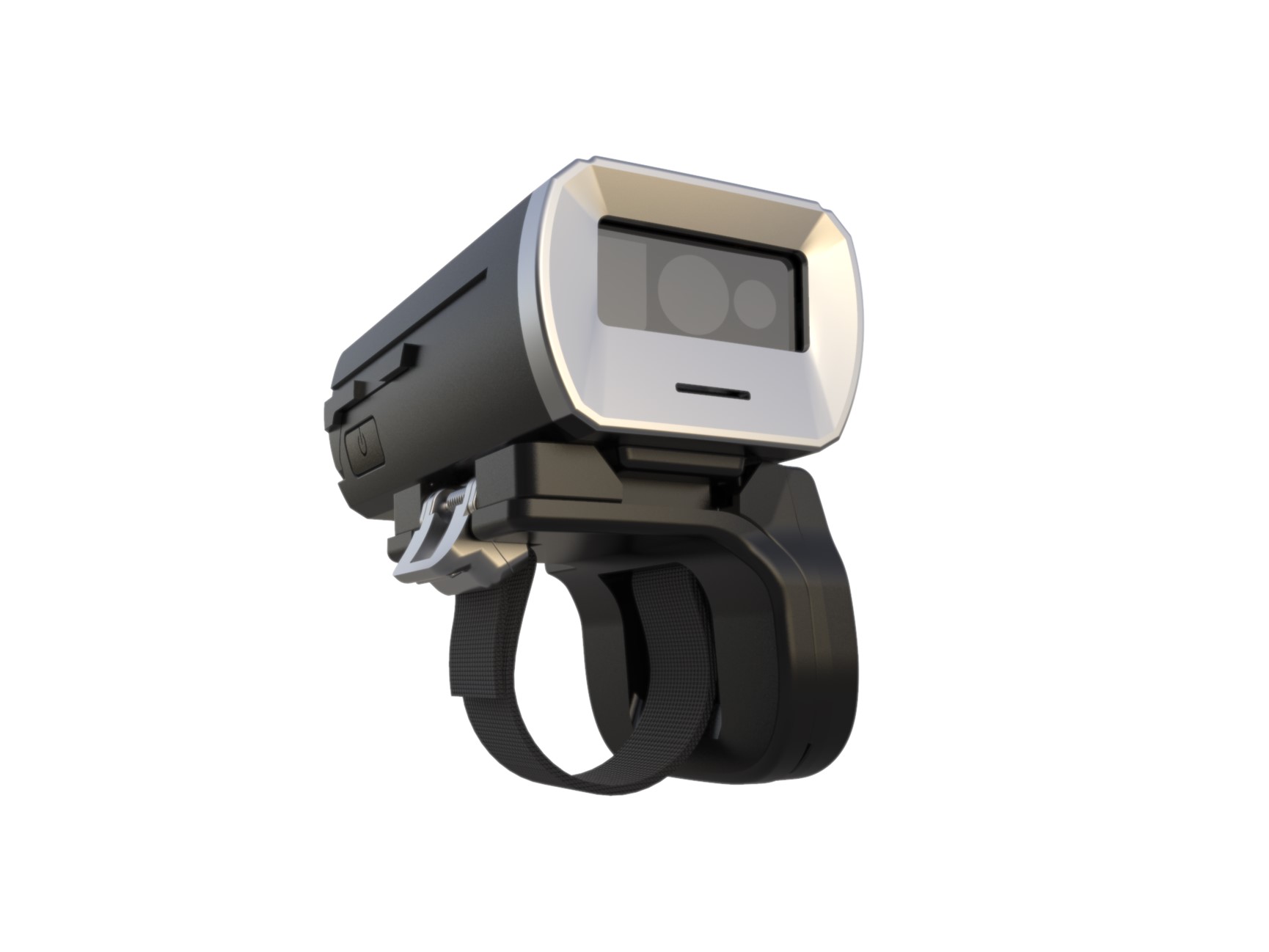

Bluetooth 2D Wearable Ring Barcode Scanner

Ambidextrous Ring Scanner | Instant Pairing 2D CMOS Wearable Scanner

Experience ultimate efficiency with NUMA Bluetooth 2D Wearable Ring Barcode Scanner, an ultra-compact wearable ring scanner. Its sleek design and Bluetooth 5.0 connectivity ensure seamless integration with a wide range of smart devices. User-friendly LED indicators provide real-time feedback, while instant pairing and efficient charging optimize workflow. Perfect for retail, logistics, healthcare and manufacturing, the Wearable Ring Scanner delivers unparalleled performance and comfort for extended use.

Inquire Now

Why Choose NUMA

NUMA Bluetooth 2D Wearable Ring Barcode Scanner is a cutting-edge solution designed to revolutionize barcode scanning in industries such as retail, logistics, healthcare and manufacturing. With its sleek and ergonomic design, this wearable device offers unparalleled convenience and efficiency. Our product design options allow you to tailor the scanner to your exact needs. Backed by our manufacturing experiences, we ensure that every device meets stringent quality standards and complies with international safety regulations, including FCC, CE, and more. Experience the future of barcode scanning with our innovative wearable solution.

Features

Ultra-Compact and Comfortable Design – Say goodbye to bulky scanners! Lightweight and ergonomic, designed for extended wear and use.
Bluetooth 5.0 Multi-Mode Connectivity – Supports HID, BLE, and SPP modes, ensuring seamless compatibility with various smart devices.
Intuitive LED Indicators – User-facing LED indicators provide real-time updates on scanning status and battery life for easy monitoring.
Removable Dual-Hand Trigger Design – Flexible removable trigger allows for effortless use with either the left or right hand.
Instant Pairing Capability – Enjoy quick and hassle-free pairing with your devices for a smooth setup and operation experience.
Efficient Multi-Scanner and Battery Management – Designed for managing multiple scanners with ease, featuring convenient battery charging solutions to keep your devices powered up.

Specification

Symbologies Supported

1D code: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 39, Code 93, Code 32, Code 128, GS1-128, MSI, GS1 Databar, GS1 Databar 14, GS1 Databar Expanded , GS1 Expanded Stacked, GS1 Data Bar Limited, GS1 Composite Component A/B/C, Interleaved 2 of 5
2D code: PDF417, MicroPDF417, QR Code, Micro QR Code, Datamatrix, Aztec Code, MaxiCode, Dot Code

Communication

Bluetooth: Ver. 5.0 Bluetooth BLE, HID, SPP
USB Dongle: USB-KB, USB Virtual COM Port, HID-POS (Human Interface Device)

2D Imager Optics

Light source: Red LED (aiming) and warm white LED (illumination)
Scan method: CMOS area sensor, 640 x 480 pixels
Scan rate: 120 fps
Imager field of view : Horizontal 36°, Vertical 28°
Min. resolution at pcs 0.9: 1D 3 mil, 2D 5mil
Min. pcs value: 20%
Depth of field at code 39: 35 - 90 mm (3 mil) / 60 - 220 mm (10 mil) / 100 - 280 mm (20 mil)
Depth of field at QR code: 40 - 60 mm (5 mil) / 30 - 120 mm (10 mil) / 30 - 190 mm (20 mil)
Depth of field at Code 128: 30 - 140 mm (7 mil)
Depth of field at EAN/UPC: 50 - 200 mm (13 mil)
Depth of field at PDF417: 30 - 90 mm (5 mil) / 40 - 180 mm (15 mil)
Depth of field at Data Matrix: 40 - 70 mm (5 mil) / 30 - 130 mm (10 mil) / 30 - 220 mm (20 mil)

Operating Indicators

Visual: LEDs
Non-visual: Buzzer, Vibrate

Operation

CPU: 32-bit RISC
RTC: Supports year, month, day, hour, minute, second

Operating Keys

Entry options: 1 scan key, 1 function key

Memory

Flash: 244 KB

Power

Rechargeable battery: Polymer Lithium 800 mAh
Operating time : 8hrs (Scan 1 time per 10 seconds when fully charged)
Max. charging time: 3hrs

Durability

Temperature in operation: 0°C to 50 °C
Temperature in storage: -40°C to 70 °C
Humidity in operation: 5% - 90% (non-condensing)
Humidity in storage: 5% - 90% (non-condensing)
Ambient light immunity: Sunlight 100,000 lux max.
Drop test: 1.8m drop onto concrete surface
Protection rate: IP54

Physical

Dimensions (WxHxD): Scanner: 72.43mm x 34.6mm x 23.65mm
Weight: Scanner: 56g

Regulatory & Safety

FCC, CE, TELEC, VCCI, NCC, BSMI, IEC-62471, EN 55032, EN 55035

Let's revolutionize your business together. Contact us for further information.

Certificate

Bluetooth RF test report of NUMA wireless barcode scanners according to RF & RFPHY test specification

Accessories

Removable ring trigger designed for comfortable hands-free barcode scanning and flexible left- or right-hand use.
Adjustable glove with strap provides a secure and comfortable fit for wearable barcode scanning applications.
Optional handheld grip converts a compatible wearable ring scanner into a compact handheld scanner for flexible operation.

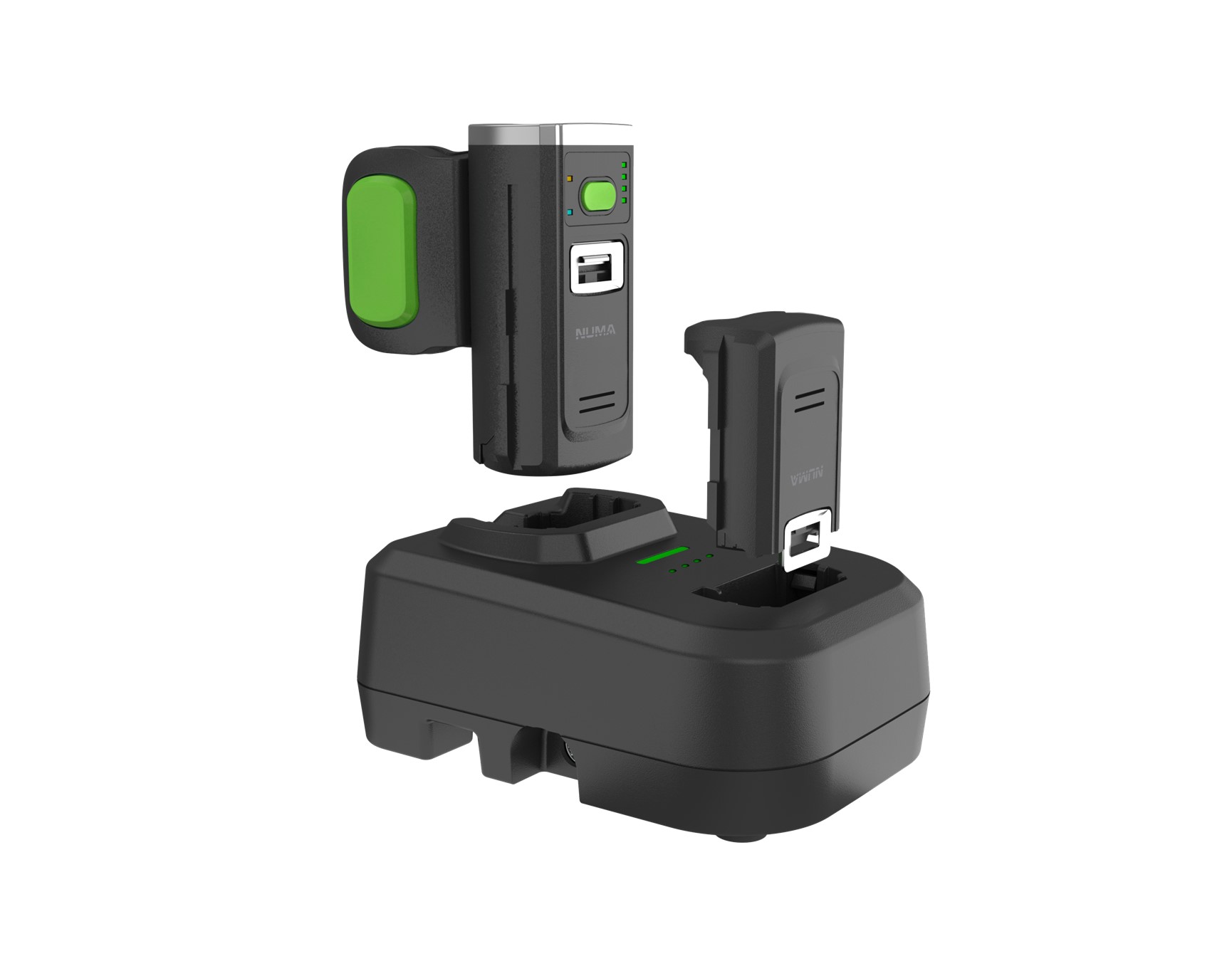

2-in-1 charging station simultaneously charges a compatible ring scanner and spare battery for continuous operation.
4-slot charger provides centralized charging for multiple compatible wearable barcode scanners.
8-slot battery charger charges up to eight spare batteries simultaneously for efficient battery management.
