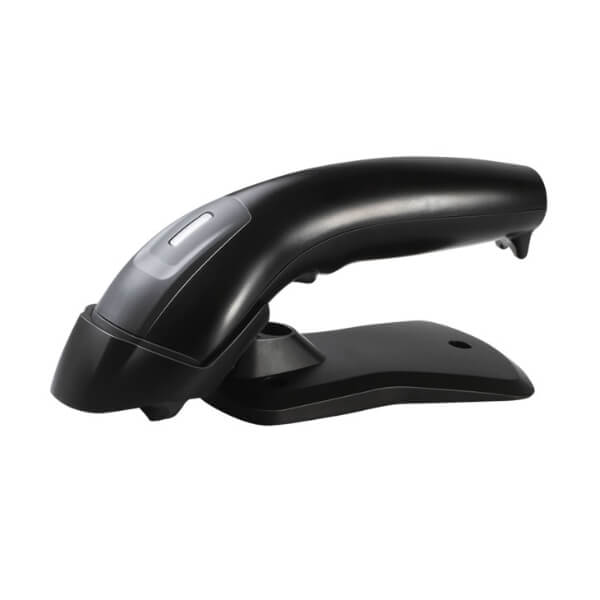

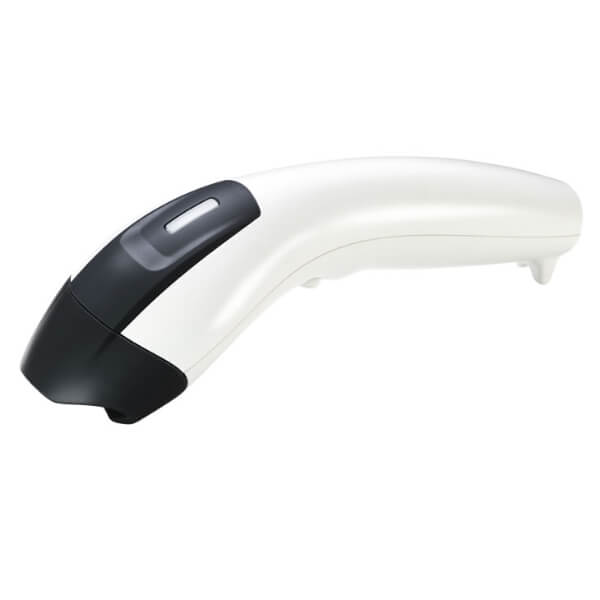

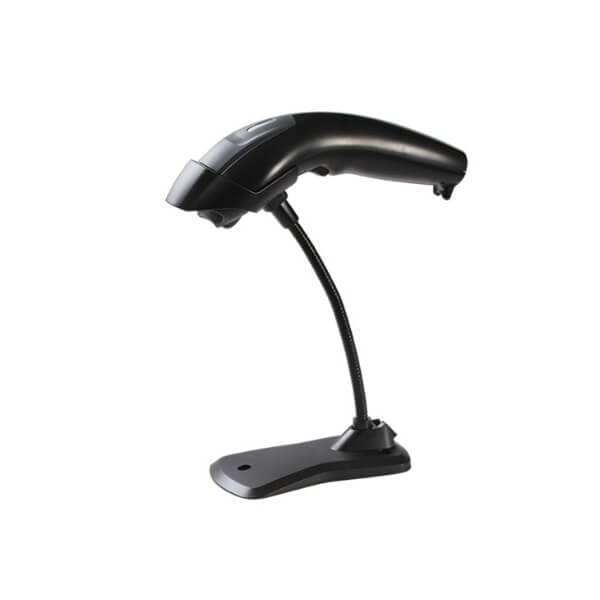

KL-5200 delivers aggressive scan performance on all linear barcodes. It provides fast and reliable scanning performance that scans 100 times per second. It’s ergonomic design and available with 3 in 1 combo interface that changes interface by replacing cable. KL-5200 is valued product of general purpose cabled scanner and perfect for using in retail, document/billing process and banking/finance environment.
specification
General
Interface
USB-HID / USB-COM / RS-232
Barcode supported
All UPC/EAN/JAN, EAN128 Code, Code 39, Code 39 Full ASCII, Code32 / Italian Pharmacode, Code 128, CODABAR/NW7, Interleave 2 of 5, Industrial 2 of 5, Matrix 2 of 5, MSI/PLESSEY, Telepen, Code 93, Code 11, China Postage, GS1 DataBar
Optical
Optical sensor
Laser
Light Source
Laser diode (650mm)
Resolution
4 mil
Depth of Field
up to 400mm
Scan rate
100 scans/sec
PCS
45%
Indicator
Beeper and LED
Electrical
Voltage
+ 5V ± 5%
Scanning currents
< 110mA
Standby currents
< 90 mA
Environment
Operating temperature
0 °C to 40 °C / 32 °F to 104 °F
Storage temperature
-40 °C to 70 °C / -40 °F to 158 °F
Operating humidity
10% ~95% RH non-condensing
Storage humidity
10% ~85% RH non-condensing
Shock resistance
1.5m drops
Physical
Weight
190g (w/cable)
Dimensions
185.5mm (L) x 66.6mm (W) x 90.8mm (H)
Housing Material
ABS plastic
Cable
Length: 5ft (150cm) / USB Type: A or C, RS-232
Warranty
1 year
Certificate
CE, IEC-60825
