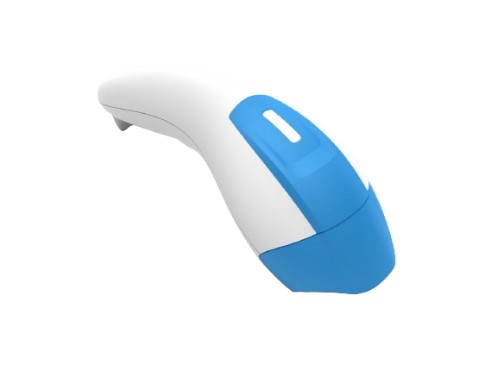

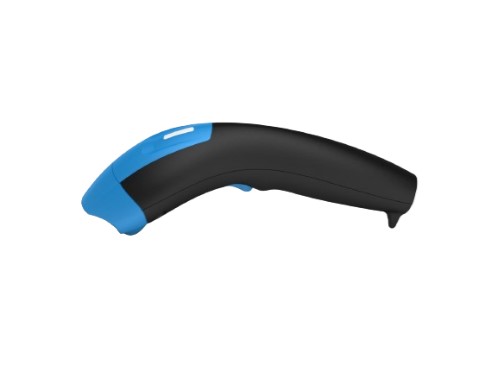

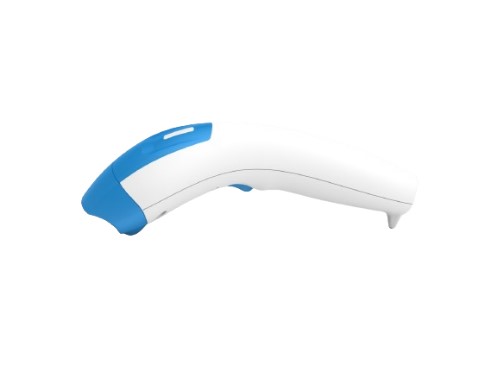

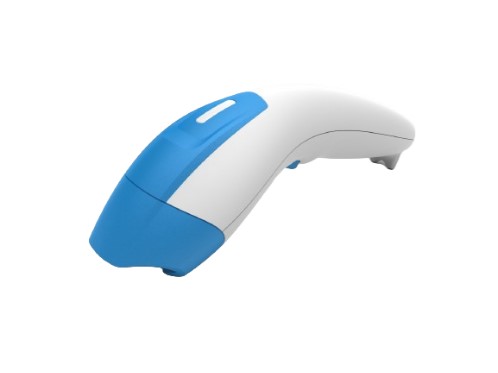

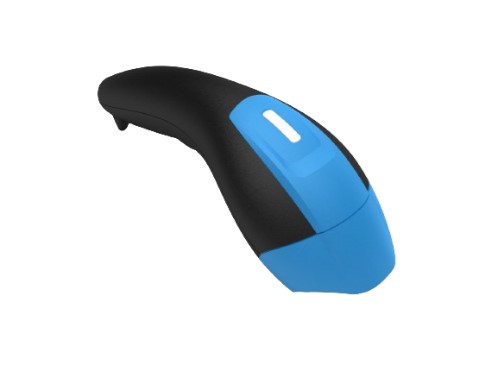

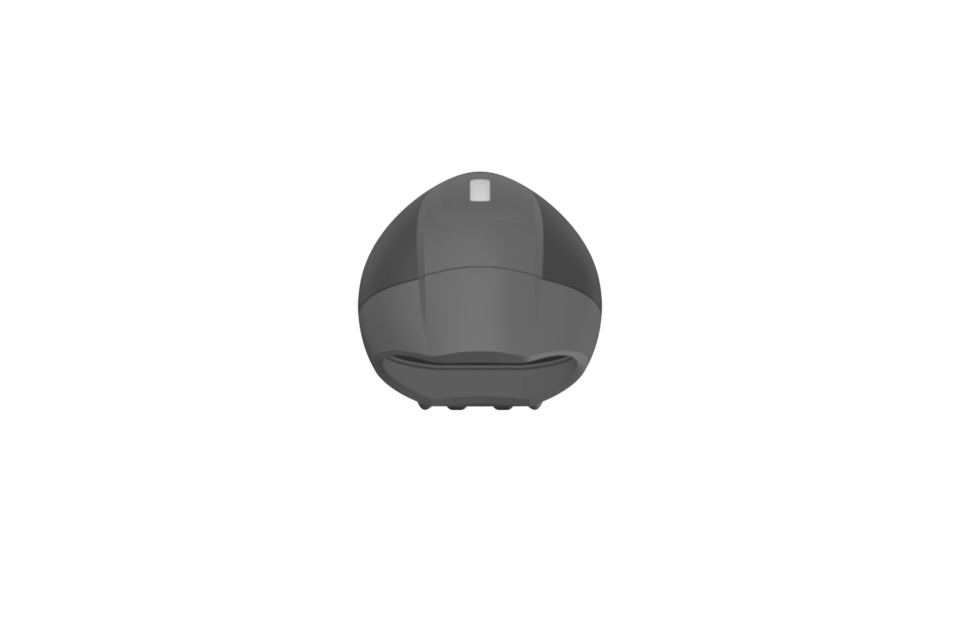

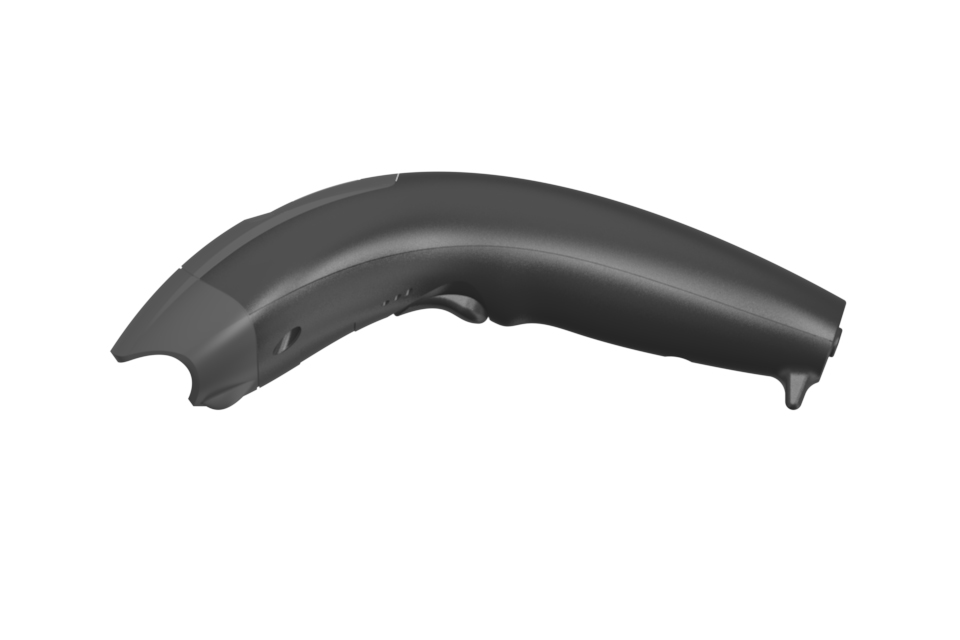

KD-5230BT combines energy efficiency and high performance with the unprecedented versatility of a wireless area imager. KD-5230BT has a secure range of up to 70 meters and an aggressive and robust linear and area imager that scans 120fps per second. KD-5230BT is high performance, ergonomic design and plug & play installation combines simple reliability with the flexibility and convenience of a wireless scanner.
specification
General
USB Dongle Interface
USB-KB / USB-COM
Barcodes supported (1D)
All UPC/EAN/JAN, Code 39, Code 39 full ASCII, Code 32/ Italian Pharmacode, Code 128, CODABAR, Interleaved 2 of 5, MSI, Code 93, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, Industrial 2 of 5, Matrix 2 of 5
Barcodes supported (2D)
PDF417, Micro PDF 417, Data Matrix, Maxicode, QR Code, Micro QR, Aztec
Communication
RF Standard
Bluetooth 5.0
Working Distance
70M (Open environment)
Optical
Optical System
640 (H) x 480 (V) pixels
Light Source
Aiming red LED, 6000-6500k white illumination LED
Resolution
4 mil (Code 39), 6.67 mil (Datamatrix)
Frame Rate
120 FPS
Field of View
Horizontal: 28°; Vertical: 36°
PCS
30%
Indicator
Beeper, LED, Vibration
Electrical
Voltage
DC 3.3V
Currents
Power off: 27uA , Standby:150mA , Scaning:200mA
Environment
Operating Temperature
0℃ to 40℃ (32℃ to 104˚F)
Storage Temperature
-40℃ to 70℃ (-4℃ to 158 F)
Operating Humidity
10% - 95% RH (Non-condensing)
Storage Humidity
10% - 85% RH (Non-condensing)
Drop
1.5m drops
Light Levels
100,000 lux
Physical
Weight
145g
Dimensions
185.48mm (L) x 66.57mm (W) x 90.83mm (H)
Housing Material
ABS plastic
Warranty
One year
Certificate
FCC , TELEC , NCC
Battery
Battery Type
Polymer 3.7V 1050mAh
Battery Capacity
1050mAh good for 21,000 scan per charge
Charge
By USB power retrieving cable
Time of Charge
About 4 hours
