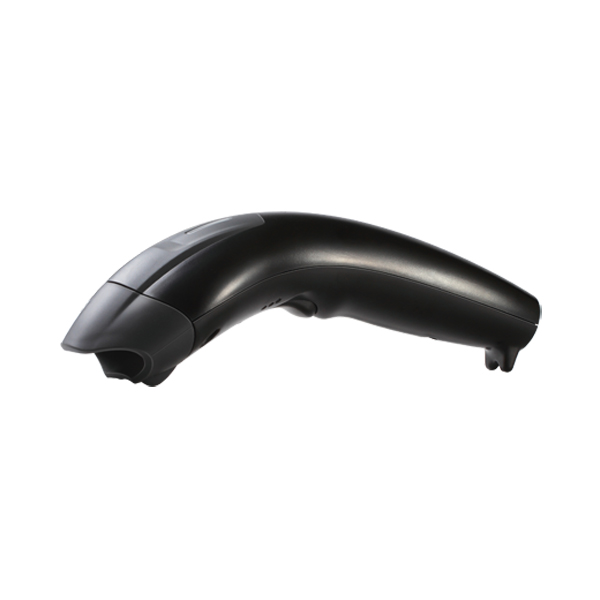

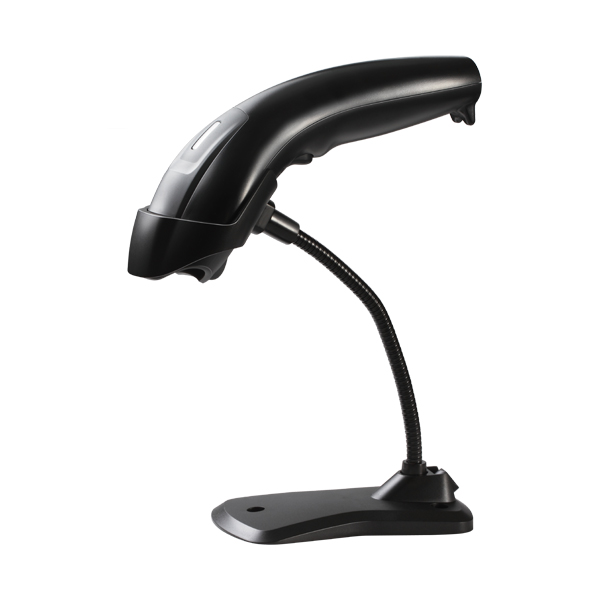

KD-5230 delivers aggressive scan performance on all linear barcodes and 2D codes. It provides fast and reliable scanning performance. It’s ergonomic design and available with multiple interfaces that changes interface by replacing cable. KD-5230 is valued product of general purpose cabled scanner. It’s perfect for using in retail, document/billing process and banking/finance environment, health care, medical industry.
specification
General
Interface
USB-KB / USB-COM / RS-232
Barcodes supported (1D)
UPC-A, UPC-E, EAN-13, EAN-8, Code 128, GS1-128, Code-39, Code-32, Code-93, Pharmacode Codabar/NW7, MSI, Interleaved 2 of 5, GS1 DataBar-14, GS1 DataBar Stacked, GS1 DataBar Limited, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, Composite Component A / B / C
Barcodes supported (2D)
PDF 417, MicroPDF 417, QR Code, Micro QR Code, Dara Matrix, Aztec, Maxi Code, Dot Code
Optical
Optical sensor
CMOS area sensor, 640 x 480 pixels
Light Source
610 nm RED LED /White LED 6000- 6,500K
Resolution
3 mil (Code 39), 6.67 mil (Data Matrix, QR Code)
Field of View
Horizontal: 36°; Vertical: 28°
Frame Rate
120 fps
PCS
30%
Indicator
Beeper and LED
Electrical
Voltage
DC 5V
Scanning Currents
130mA
Standby Currents
95mA
Environment
Operating temperature
0℃ to 40℃ (32℉ to 104℉)
Storage temperature
-40℃ to 70℃ (-40℉ to 158℉)
Operating Humidity
10% - 95% RH non-condensing
Storage Humidity
10% - 85% RH non-condensing
Shock resistance
1.5m drops
Physical
Weight
180g (w/cable)
Dimensions
185mm (L) x 67mm (W) x 91mm (H)
Housing Material
ABS plastic
Cable
Length: 5ft (150cm) / USB Type A or C, RS-232
Warranty
1 year
Certificate
CE / FCC
