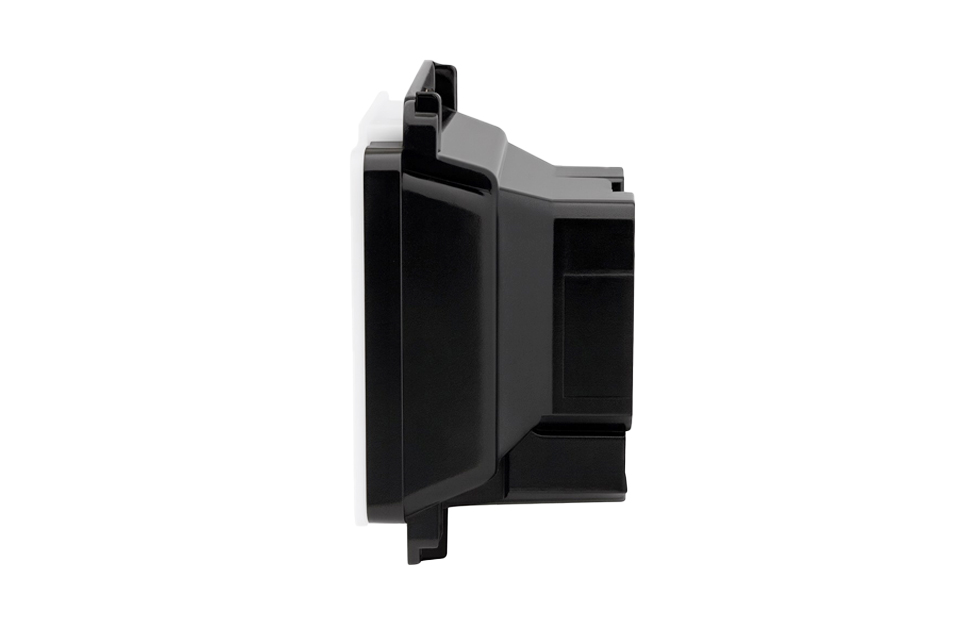

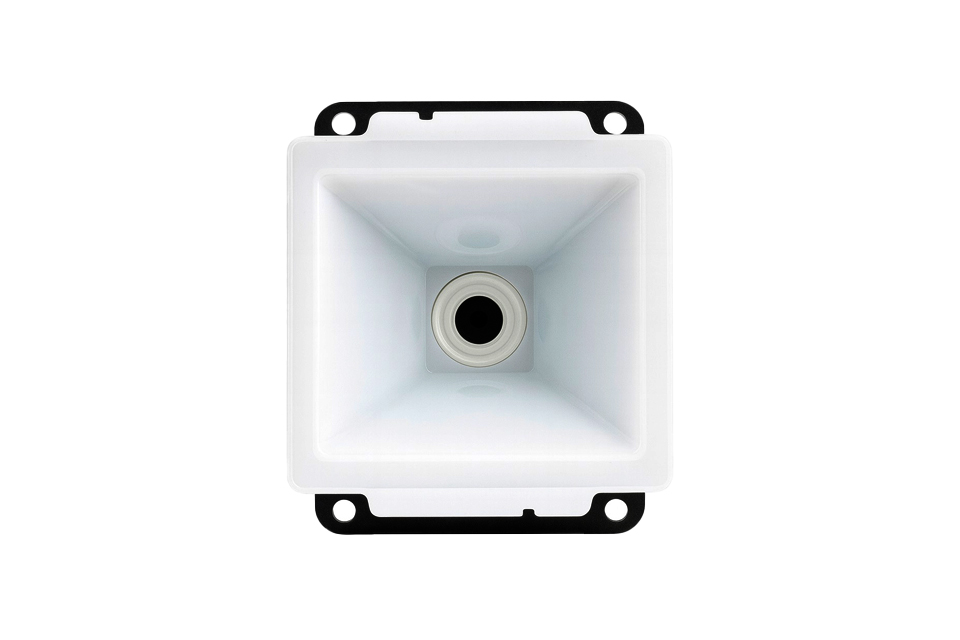

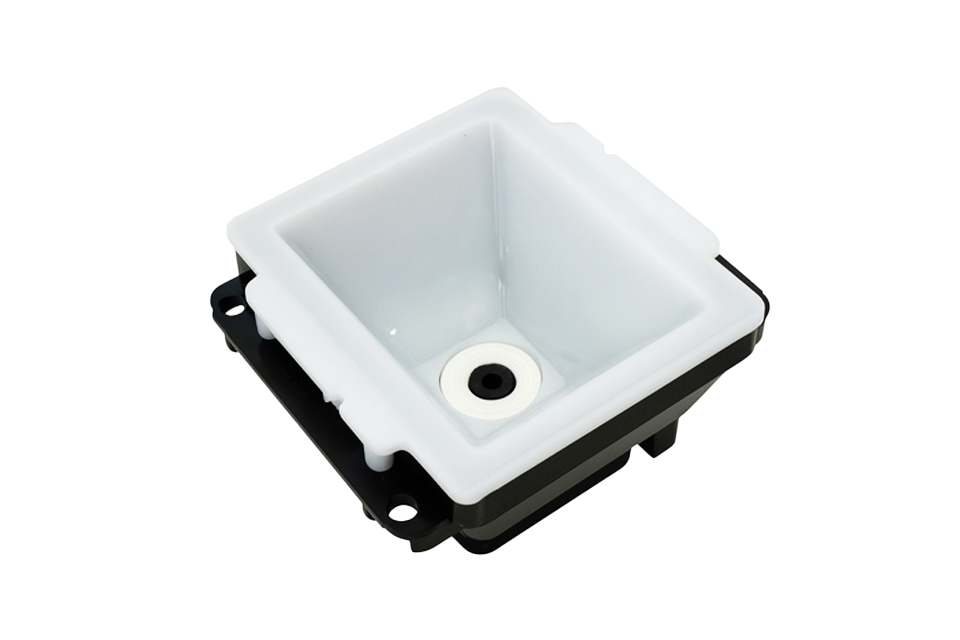

FX-60 area imager module is engineered to decode most of 1D, PDF and 2D codes. It's excellent for reading smart phone QR codes and barcodes and also perfect performance for reading poorly printed codes on paper. It provides wide range of applications: such as self-payment, self-order systems, self-takeout or registration. The wide reading area enhances reading performance.
specification
General
Interface
USB-KB / USB-COM / RS-232
Barcodes Supported (1D)
All UPC/EAN/JAN, Code 39, Code 39 full ASCII, Code 32 / Italian Pharmacode, Code 128, CODABAR, Interleaved 2 of 5, MSI, Code 93, GS1 DataBAR 14, GS1 DataBar Expanded, GS1 Expanded Stacked, GS1 Data Bar Limited, GS1 Composite Component A/B/C
Barcodes Supported (2D)
PDF417, Micro PDF417, DataMatrix, QR Code, Micro QR Code, Aztec, Maxicode
Optical
Optical Sensor
640 (H) x 480 (V) pixels
Light Source
White LED
Resolution
4 mil (Code 39), 6.67mil (DataMatrix)
Indicator
Beeper
Frame Rate
120 FPS
Field of View
Horizontal: 75° ; Vertical: 68°
PCS
30%
Electrical
Voltage
DC 5V
Scanning Currents
180 mA
Standby Currents
160 mA
Environment
Operating Temperature
-20℃ to 55℃ (-4℉ to 131℉)
Storage Temperature
-40℃ to 70℃ (-40℉ to 158℉)
Operating Humidity
10% ~95% RH (non-condensing)
Storage Humidity
10% ~95% RH (non-condensing)
Drop
1.5 drops
Light Levels
100,000 lux
Physical
Weight
98g w/cable
Dimensions
64.4mm (L) x 61mm (W) x 38.1mm (H)
Housing Material
ABS plastic
Cable
Length: 5ft (150cm) / USB Type: A, RS-232
Warranty
1 year
