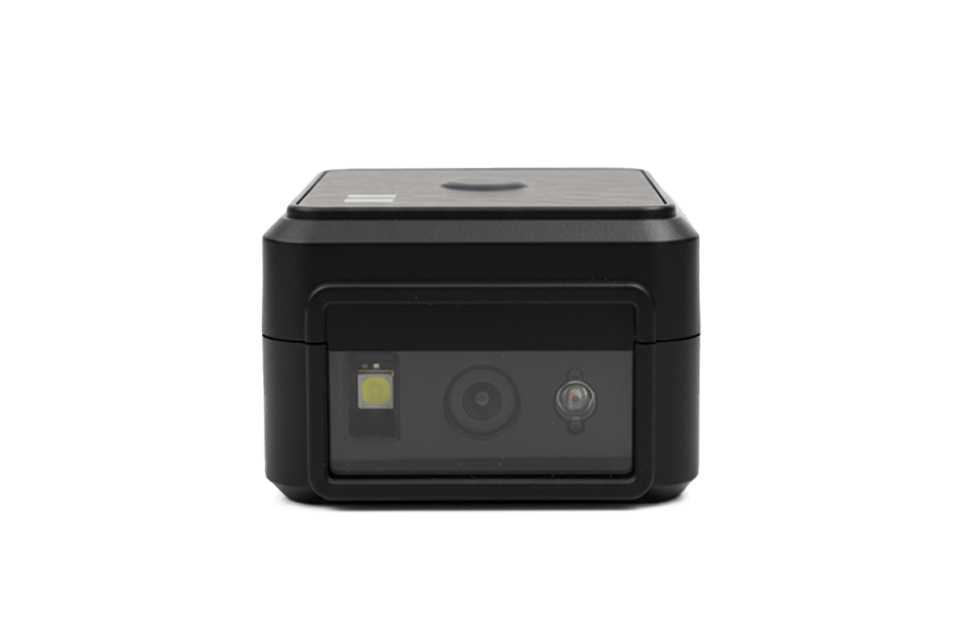

FX-50D can capture DPM codes regardless of size, surface, contrast or density — including the most challenging mark, dot peen, as well as laser etch, ink mark, chemical etch, inkjet mold, cast and thermal spray. It's suitable for medical industrial and production conveyor.
specification
General
Interface
USB-HID / USB-COM / RS-232
Barcode supported (1D)
UPC/EAN/(UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus supplemental, ISBN, ISSN, Coupon Code), Code 39, Code 39 Full ASCII, Trioptic, Code 32 (Italian Pharmacode), Code 128, (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated), Code 93, Codeabar/NW7, Interleaved 2 of 5, Descrete 2 of 5, IATA Chinese 2 of 5, Matrix 2 of 5, Code 11), MSI Plessey, GS1Databar, (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked)
PDF417 (and variants)
PDF417 (Standard, Macro), MicroPDF417 (Standard, Marco), Composite Code (CC-A, CC-B, CC-C)
Readable Codes 2D
MaxiCode, Data Matrix, Data Matrix inverse, QR Code, QR Inverse, Micro QR Code, Aztec Code, Aztec Inverse
Postal
U.S. Posnet and Planet, U.K. Post, Japan Post, Australian Post, Netherlands KIX Code, Royal Mail 4 State Customer, UPU FICS 4 State Postal, USPS 4CB
Optical
Optical System
1280 x 960 pixels
Light Source
Aiming Pattern: 655nm Laser, Illumination: 2X Warm white LEDs
Ambient Light
Max 96,900 lux (direct sunlight)
Resolution
3 mil (Code 39), 5 mil (Data Matrix), 5 mil (PDF 417)
Focusing Distance
Up to 185 mm
Field of View
Horizontal: 31°, Vertical: 23°
Indicator
Beeper and LED
Electrical
Voltage
5V
Scanning currents
360mA
Standby currents
15mA
Environment
Operating temperature
0 °C to 40 °C (32ºF to 104ºF)
Storage temperature
-40°C to 70 °C (-40ºF to 158ºF)
Operating humidity
10% ~95% RH non-condensing
Storage humidity
10% ~85% RH non-condensing
Shock resistance
1.5m drops
Physical
Weight
85g (incl. cable weight)
Dimensions
46.42mm (L) x 36.5mm (W) x 21.7mm (H)
Housing Material
ABS plastic
Cable
Length: 5ft (150cm), USB Type: A or C, RS-232
Warranty
1 year
Certificate
CE / FCC
