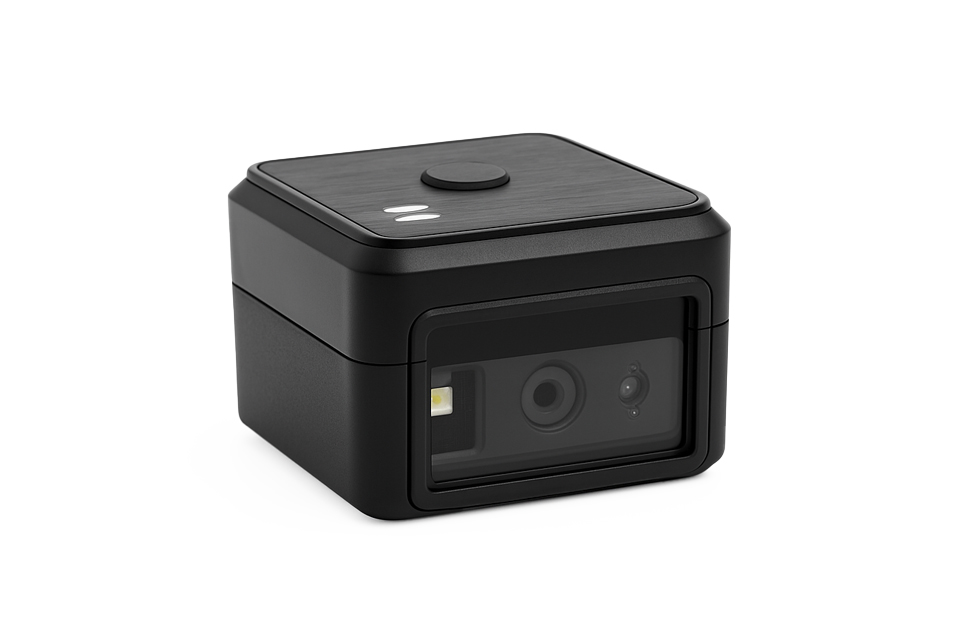

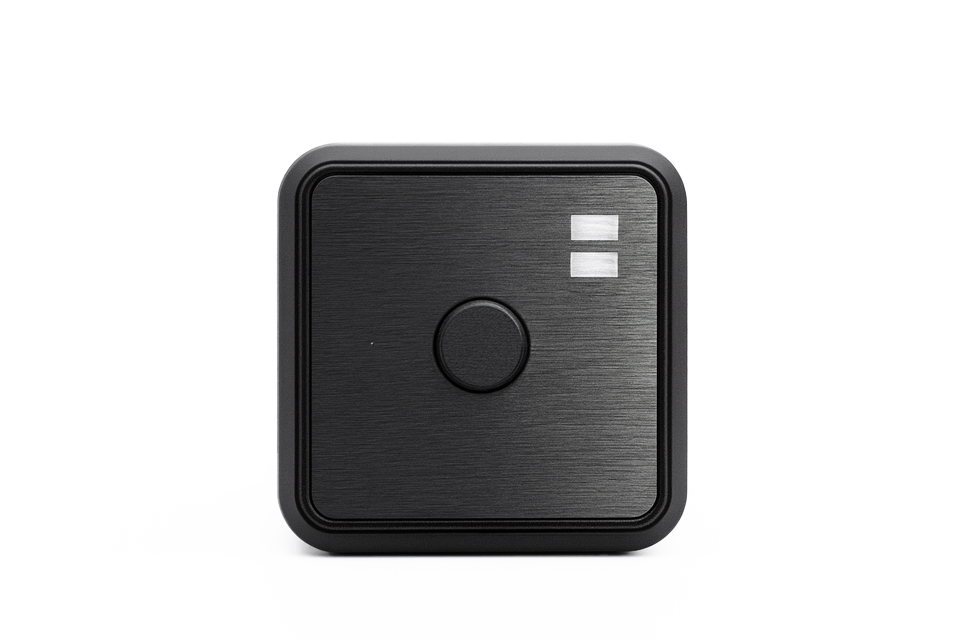

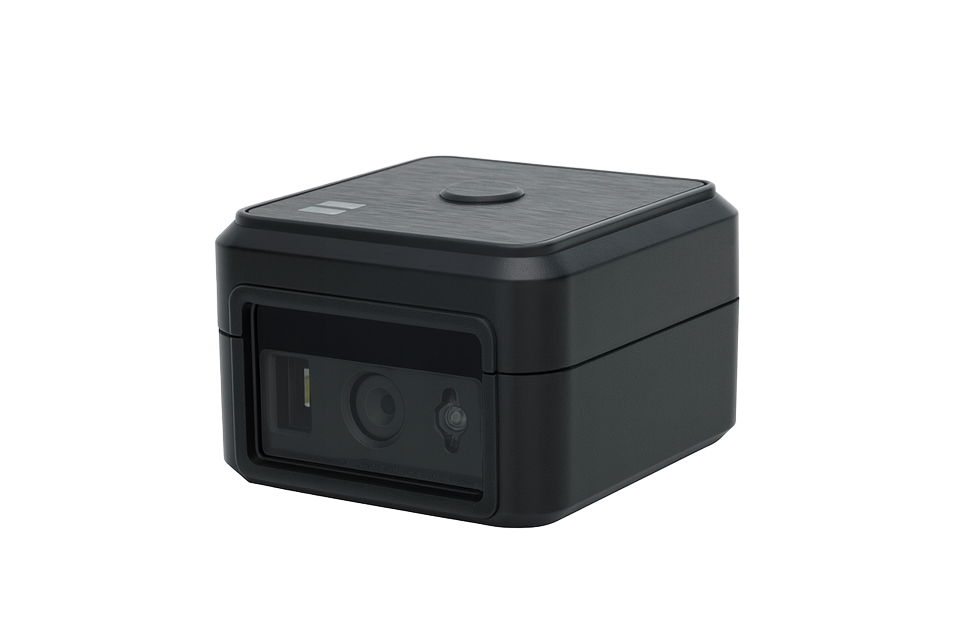

NUMA FX-30D fixed area imager is engineered to decode most of 1D, PDF and 2D codes. It's excellent for reading smart phone QR codes and barcodes and easy to integrate into POS or Kiosk system. It provides wide range of applications: such as retail stores connect to point-of-sale terminals to use mobile coupons, mobile loyalty cards promoting sales. Factory can integrate on conveyor for production tracking or integrate on kiosk for payment usage.
specification
General
Interface
USB-KB / USB-COM / RS-232
Barcode supported (1D)
UPC-A, UPC-E, EAN-13, EAN-8, Code 128, GS1-128, Code-39, Code-32, Code-93, Pharmacode Codabar/NW7, MSI, Interleaved 2 of 5, GS1 DataBar-14, GS1 DataBar Stacked, GS1 DataBar Limited GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, Composite Component A / B / C
Barcode supported (2D)
PDF 417, MicroPDF 417, QR Code, Micro QR Code, Data Matrix, Aztec, Maxi Code, Dot Code
Optical
Optical sensor
640 (H) x 480 (V) Pixels
Light source
Aiming 610nm red LED Illumination 6000-6500k white LED
Frame Rate
120 fps
Resolution
3 mil (Code 39), 6.67 mil (Data Matrix, QR Code)
Field of View
Horizontal: 28°; Vertical: 36°
PCS
30%
Indicator
Beeper and LED
Electrical
Voltage
DC 5V
Scanning currents
260 mA
Standby currents
88 mA
Environment
Operating temperature
0 °C to 40 °C / 32 °F to 104 °F
Storage temperature
-40 °C to 70 °C / -40 °F to 158 °F
Operating Humidity
10% ~95% non-condensing
Storage Humidity
10% ~85% non-condensing
Shock resistance
1.5M (5') drops
Physical
Weight
35g (excl. cable weight)
Dimensions
35mm (L) x 35.5mm (W) x 22.7mm (H)
Housing Material
ABS plastic
Cable
Length: 5ft (150cm) / USB Type: A or C, RS-232
Warranty
1 year
Certificate
CE / FCC / VCCI
