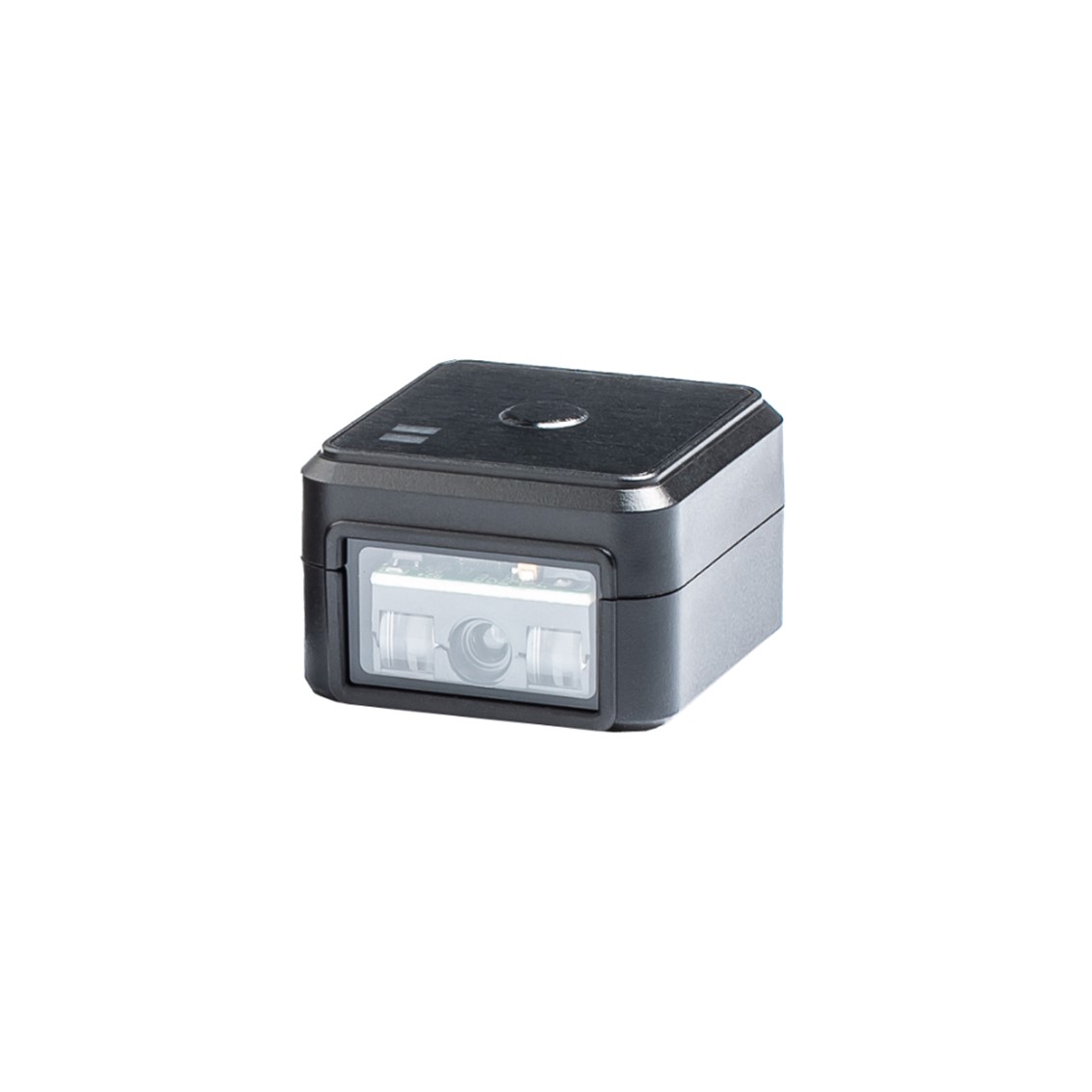

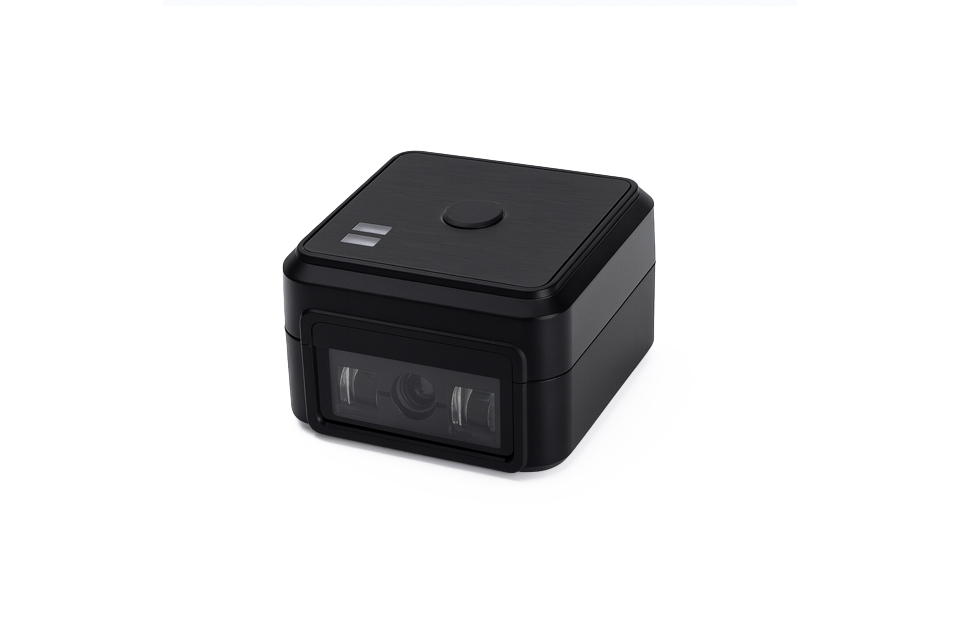

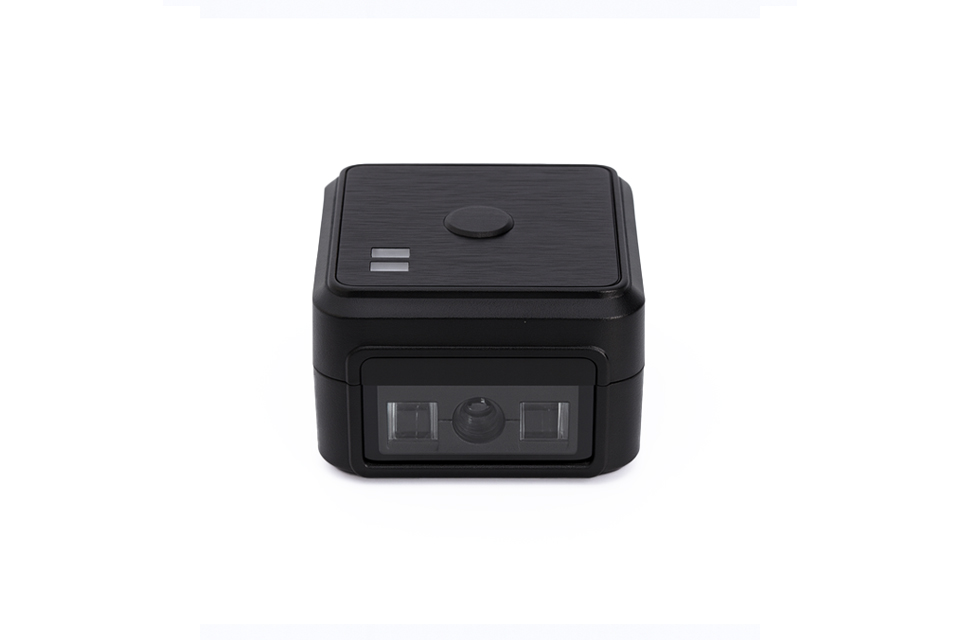

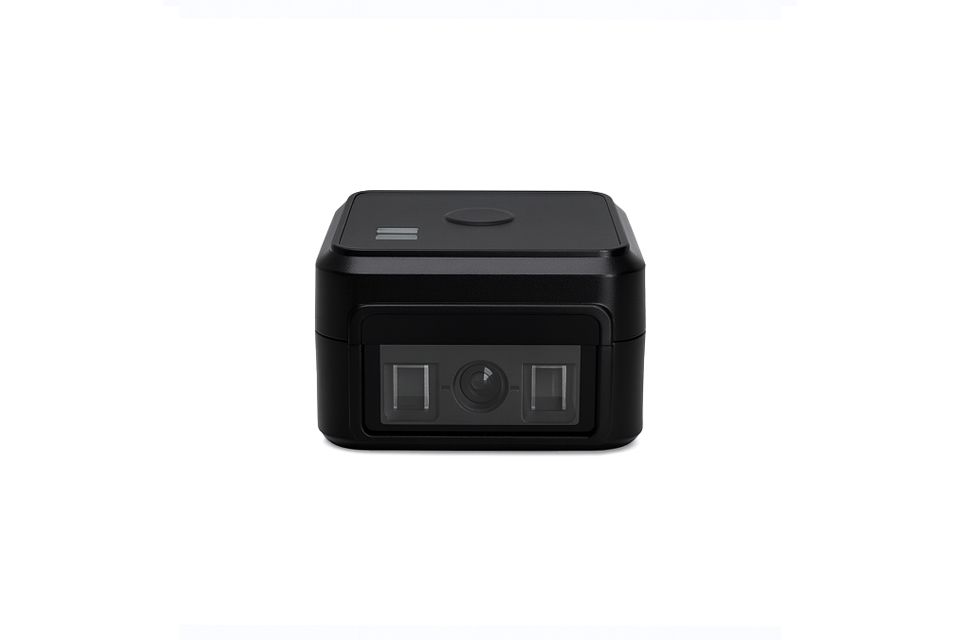

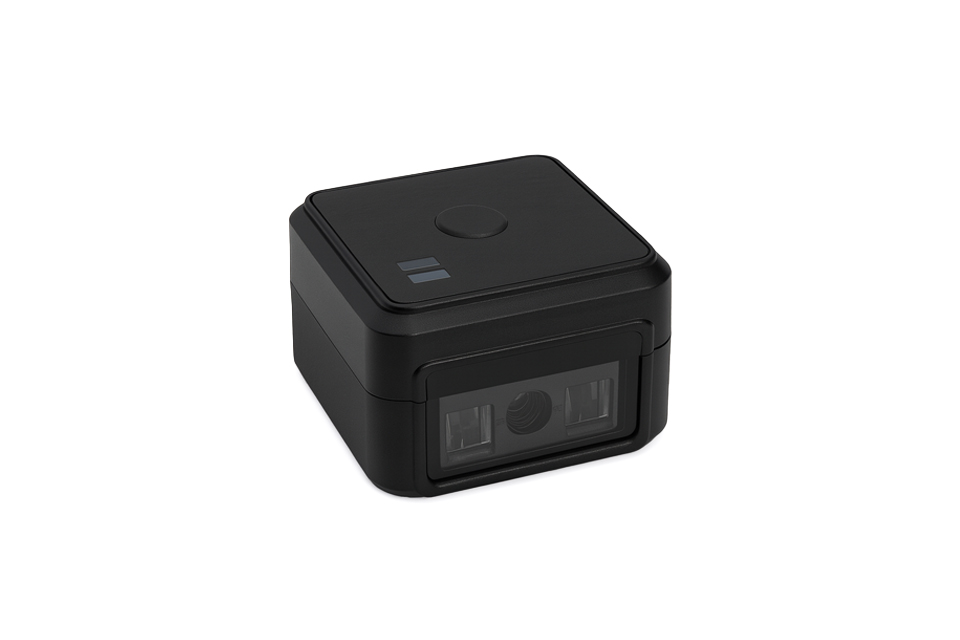

CCD Fixed Scanner
FX-30C
- Reading most 1D barcodes
- Stylish design
- Compact size
- Reading printing barcodes and e-barcodes
FX-30C fixed imager is engineered to decode most of 1D codes. It’s excellent for reading smart phone 1D barcodes and easy to integrate into POS or Kiosk system. It provides wide range of applications: such as retail stores connect to point-of-sale terminals to use mobile coupons, mobile loyalty cards promoting sales. Restaurants can accept mobile coupons at the register. Theaters, theme parks, stadiums, museums can scan e-tickets for entrance.
specification
General
Interface
USB HID / RS-232 / USB-COM
Barcode supported (1D)
EAN-13/-8, (JAN-13/-8), UPC-A/-E, UPC/EAN(with add-on), Interleavd 2 of 5 (ITF), Standard 2 of 5 (STF), CODABAR (NW -7), CODE93, CODE 128, GS1-128 (EAN-128), GS1 DataBar (RSS)
Optical
Image Sensor
2500pixel linear imager 612nm-624nm
Light Source
612nm-624nm red LED 40% minimum reflective difference
Resolution
4 mil
PCs
40%
Indicator
Beeper and LED
Electrical
Voltage
DC 5V +/- 10%
Environment
Operating temperature
0 °C to 40 °C / 32 °F to 104 °F
Storage temperature
-40 °C to 70 °C / -40 °F to 158 °F
Operating Humidity
10% ~95% non-condensing
Storage Humidity
10% ~85% non-condensing
Shock resistance
1.5M (5') drops
Physical
Weight
34g
Dimensions
35mm (L) x 35.5mm (W) x 22.7mm (H)
Housing Material
ABS plastic
Cable
Length: 5ft (150cm) / USB Type: A or C, RS-232
Warranty
1 year
Certificate
CE / FCC / VCCI
