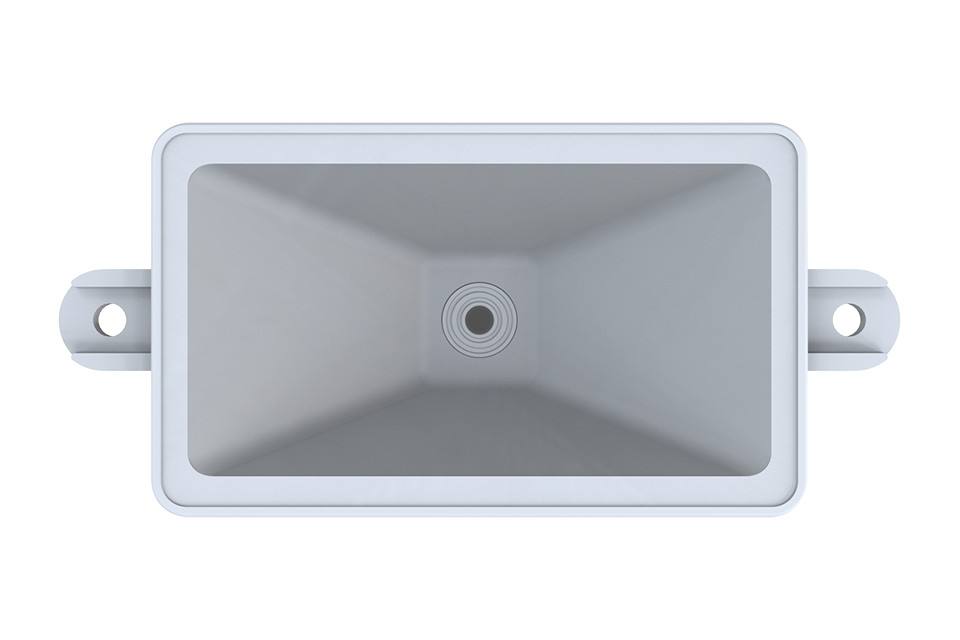

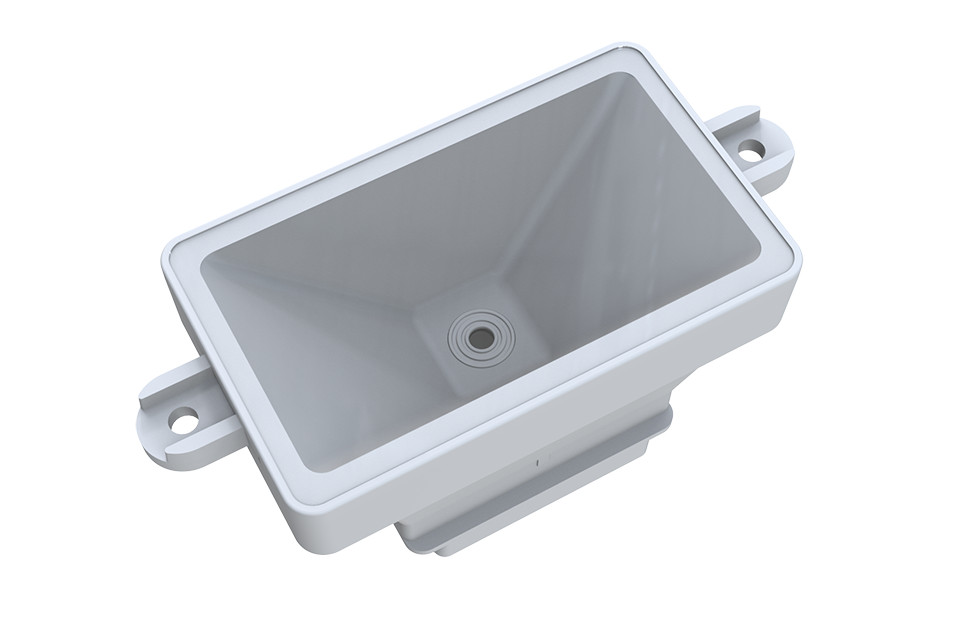

FX-10 area imager module is engineered to decode most of 1D, PDF and 2D codes. It's excellent for reading electronic QR codes and barcodes and also perfect performance for reading poorly printed codes on paper. It provides applications: such as self-payment, self-order systems, self-takeout or registration. The wide reading area enhances reading performance.
specification
General
Interface
USB-KB / USB-COM / RS-232
Barcodes Supported (1D)
All UPC/EAN/JAN, Code 39, Code 39 full ASCII, Code 32 / Italian Pharmacode, Code 128, CODABAR, Interleaved 2 of 5, MSI, Code 93, GS1 DataBAR 14, GS1 DataBar Expanded, GS1 Expanded Stacked, GS1 Data Bar Limited, GS1 Composite Component A/B/C
Barcodes Supported (2D)
PDF417, Micro PDF417, DataMatrix, QR Code, Micro QR Code, Aztec, Maxicode
Optical
Optical System
640 (H) x 480 (V) pixels
Light Source
Warm White LED
Resolution
3 mil (Code 39), 6.67 mil (DataMatrix)
Frame Rate
120 FPS
Field of View
Horizontal: 75°; Vertical: 68°
PCS
20%
Indicator
Beeper
Electrical
Voltage
DC 5V
Scanning Currents
180mA
Standby Currents
189mA
Environment
Operating Temperature
0℃ to 50℃ (32℉ to 122℉)
Storage Temperature
-40℃ to 70℃ (-40℉ to 158℉)
Operating Humidity
10% - 95% RH (Non-condensing)
Storage Humidity
10% - 95% RH (Non-condensing)
Light Levels
100,000 lux
Physical
Weight
80g w/cable
Dimensions
58.32mm (L) x 30.17mm (W) x 33 mm (H)
Housing Material
ABS plastic
Cable
Length: 5ft (150cm) / USB Type: A, RS-232
Warranty
1 year
Certificate
FCC / CE / BSMI / VCCI
