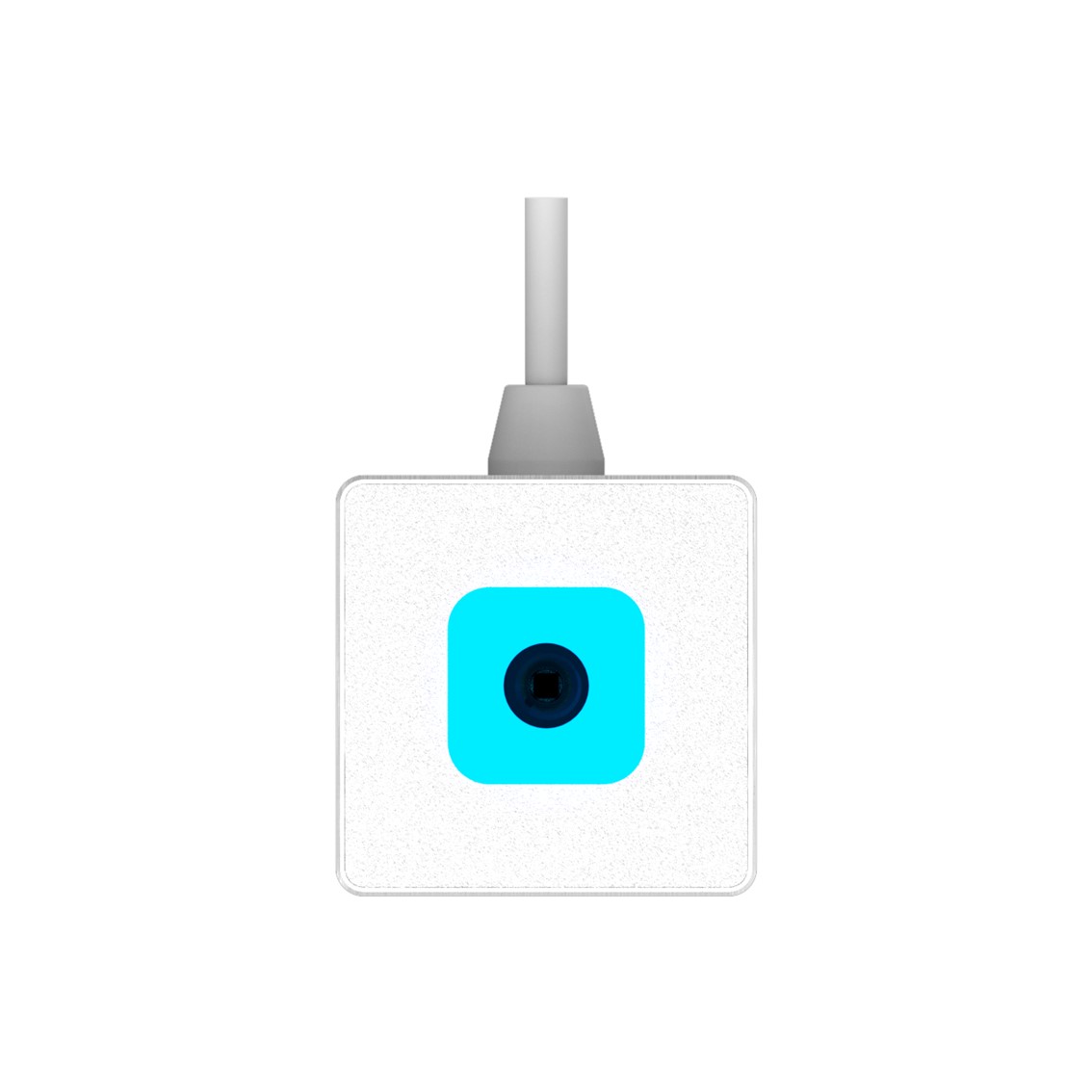

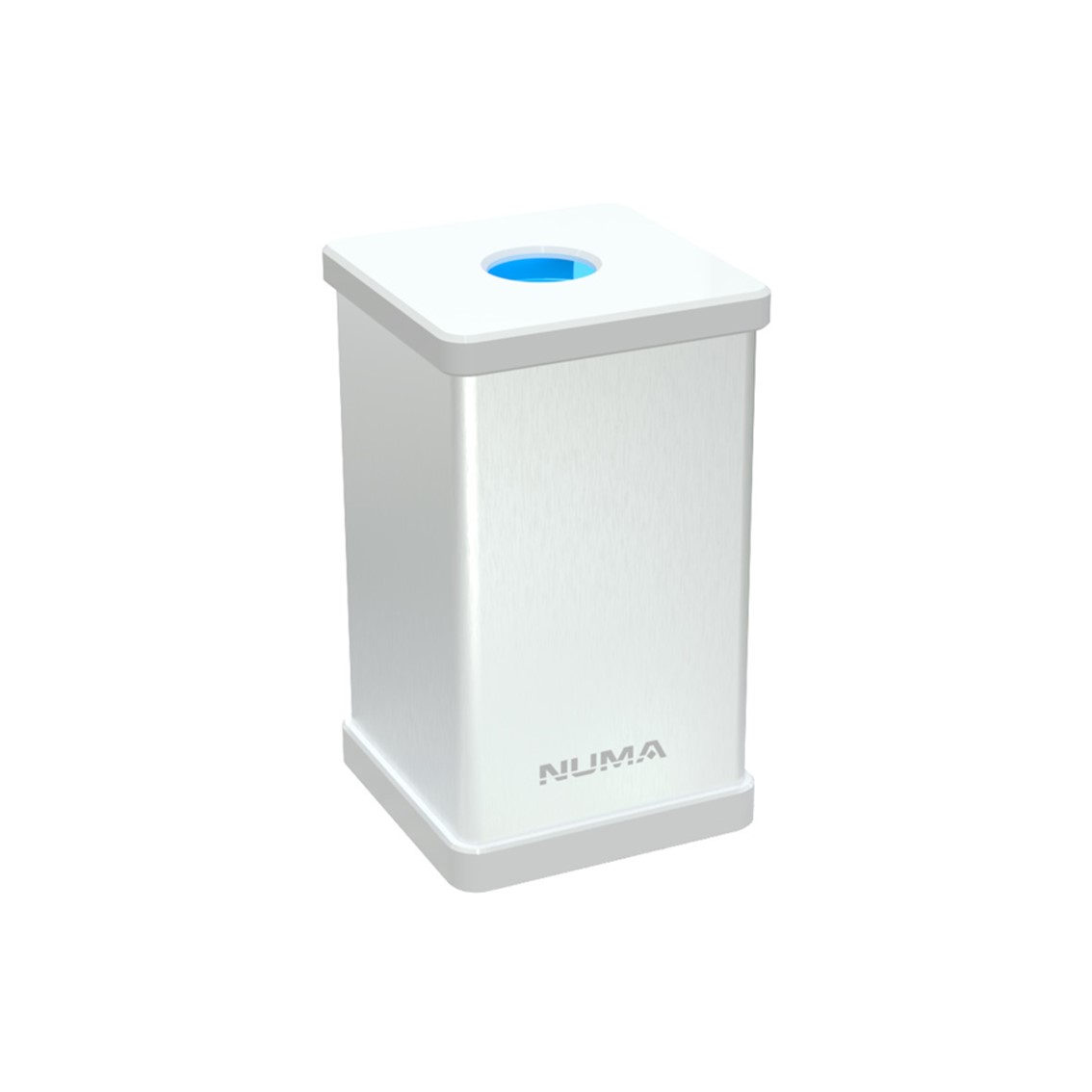

Medical Data Matrix Reader

DT-10

  • Plug & Play
  • Medical Use
  • Instrument Identification
  • Scan Codes on All Surfaces

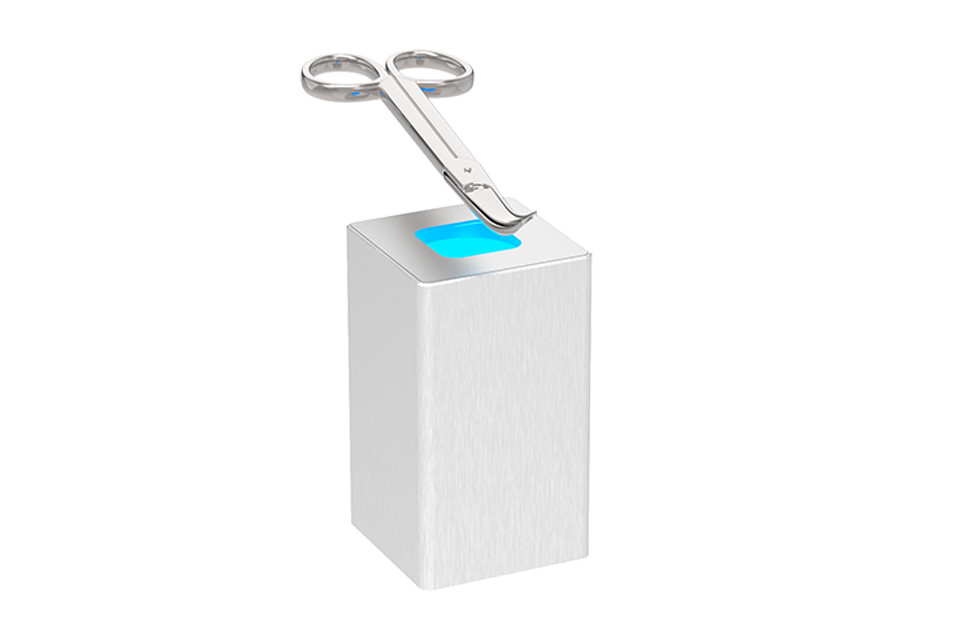

The DT-10 reading system was specially developed by NUMA to quickly and reliably identify surgical instruments by reading their DataMatrix codes. In today's medical world, efficient cost management together with patient safety and legal security are more important than ever. Identification and traceability of the products are necessary according to the UDI identificiation. The DT-10 system can easily read codes on any variety of brushed, matt or mirror finished surfaces. Regardless of the code size, the system can reliably read markings on highly curved surfaces or cylinders with small radii.

specification

General

  • Interface

    USB-KB, USB-COM

  • Barcodes Supported (2D)

    DataMatrix, QR Code

Optical

  • Optical System

    640 (H) x 480 (V) pixels

  • Light Source

    Blue LED

  • Resolution

    1.8mm x 1.8mm DataMatrix

  • Frame Rate

    120FPS

  • Indicator

    Beeper

Electrical

  • Voltage

    DC 5V

  • Scanning Current

    180 mA

  • Standby Current

    179 mA

Environment

  • Operating Temperature

    -20℃ to 50℃

  • Storage Temperature

    -40℃ to 70℃

  • Operating Humidity

    10% - 95% RH (Non-condensing)

  • Storage Humidity

    10% - 95% RH (Non-condensing)

  • Drop

    1.8 M drops

  • Light Level

    100,000 lux

Physical

  • Weight

    263g with cable

  • Dimensions

    45mm (L) x 45mm (W) x 78mm (H)

  • Housing Material

    Aluminum / Window - Tempered glass

  • Cable

    Length: 5ft (150cm) / USB Type A

  • Warranty

    1 year

  • Certificate

    FCC / CE / UKCA / VCCI / BSMI
