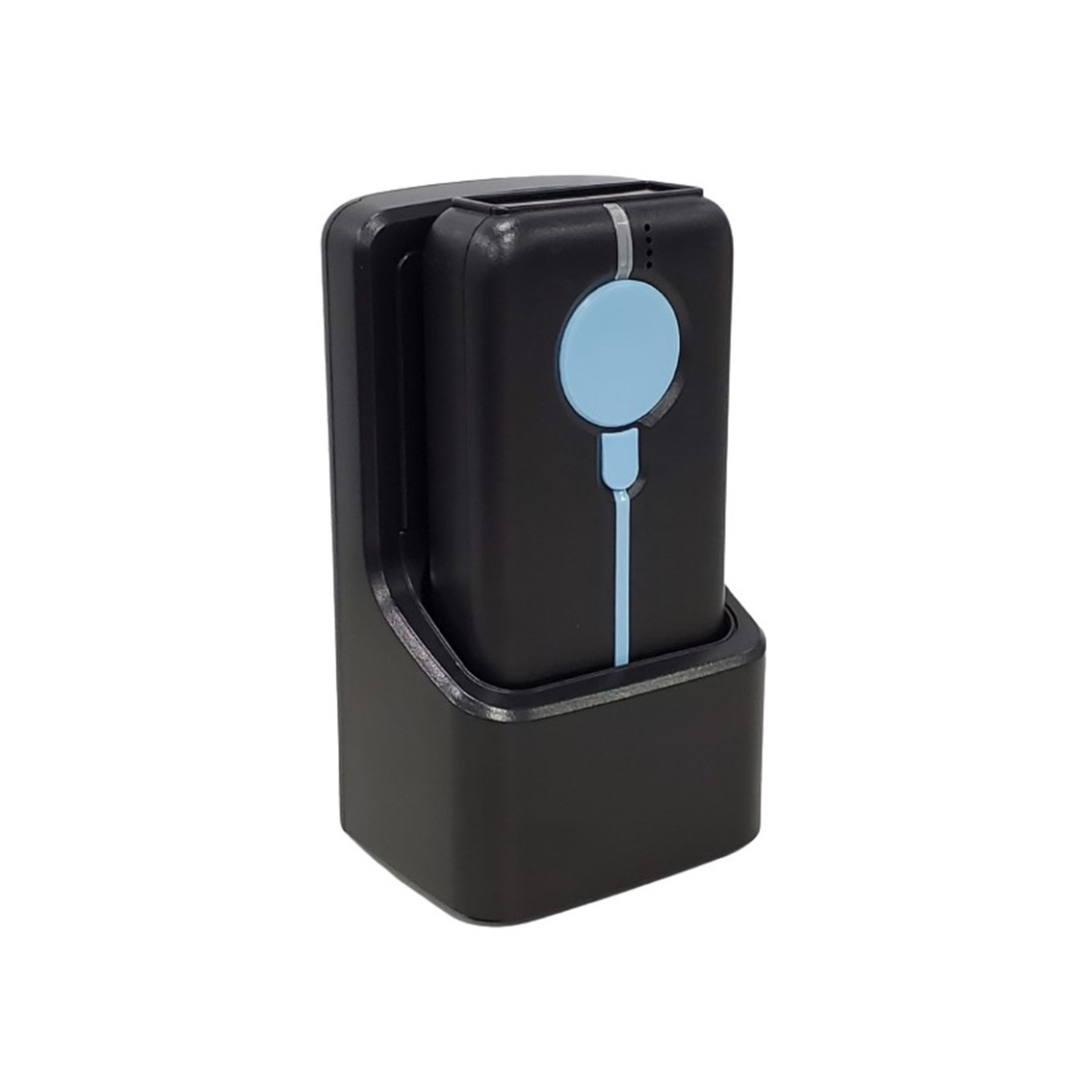

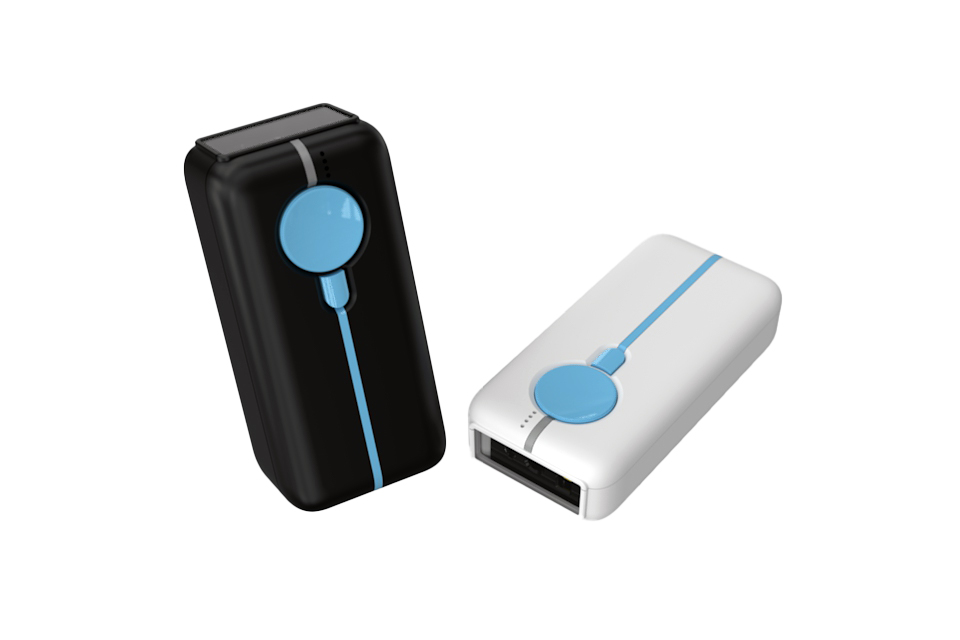

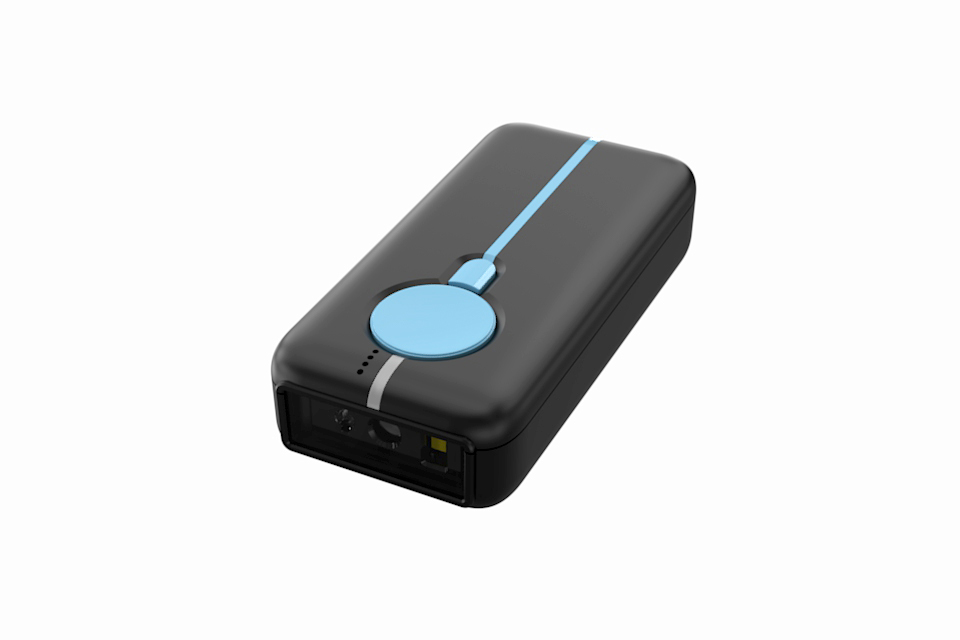

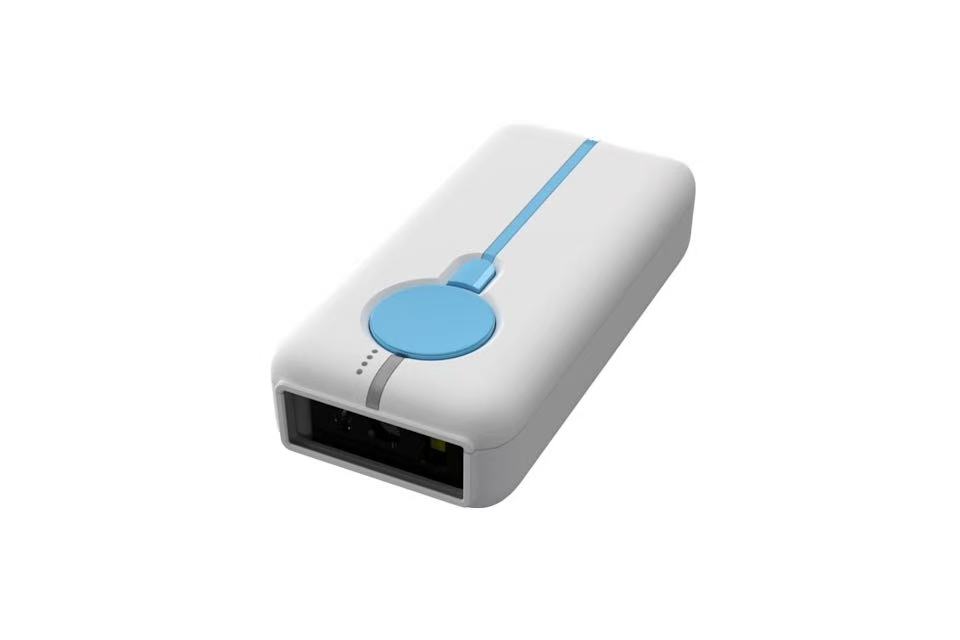

The BT-680S-D is compactly designed, making it ideal for the logistics market and hospitals. Its lightweight and tiny body make it easy to carry in a pocket or bag for mobile use. It connects seamlessly to a wide range of mobile devices via Bluetooth technology, compatible with Android, iOS, and Windows systems. Scanned data can be instantly transferred to corresponding application programs or stored in the built-in memory. With a reading speed of up to 120 FPS, it efficiently scans the majority of 1D and 2D barcodes. The elegantly designed contact charging cradle allows users to charge the battery conveniently whenever the device is placed in the cradle.
specification
General
Interface
Micro USB
Barcodes supported (1D)
All UPC/EAN/JAN, Code 39, Code 39 full ASCII, Code 32 / Italian Pharmacode, Code 128, CODABAR, Interleaved 2 of 5, MSI, Code 93, GS1 DataBAR 14, GS1 DataBar Expanded, GS1 Expanded Stacked, GS1 Data Bar Limited, GS1 Composite Component A/B/C
Barcodes supported (2D)
PDF417, Micro PDF417, DataMatrix, QR Code, Micro QR Code, Aztec, Maxicode, DotCode
Communication
RF Standard
Standard Bluetooth Version 5.0 with BLE, HID and SPP Profiles
Working Distance
50M (Open environment)
Optical
Optical Sensor
640(H) X 480(V) pixels
Light Source
Aiming pattern: 610nm Red LED. Illumination: White LED
Resolution
1D: 3mil 2D: 6.67mil
Frame Rate
120 fps
Depth of Field
50mm - 190mm ( EAN13)
PCS
20%
Indicator
Beeper, LED, Vibration
Electrical
Voltage
DC 3.3V ± 5%
Scanning Currents
270 mA
Environment
Operating temperature
0℃ to 50℃ (32℉ to 122℉)
Storage temperature
-20℃ to 60℃ (-4 ℉ to 140℉)
Operating humidity
10% ~ 90% RH (non-condensing)
Storage humidity
5% ~ 95% RH (non-condensing)
Shock resistance
1.5m drops
Ambient Light Immunity
Sunlight 100,000 lux
Battery
Battery Type
Lithiumion battery: Sanyo 553450 1150mAh
Number of Scan
15,500 scans (full charge, 1 scan / 1 sec.)
Charge
By cradle charge
Time Of Charge
About 3 hours
Physical
Weight
Scanner: 65g , Cradle: 52g
Dimensions
Scanner: 89mm x 42.5mm x 23mm Cradle: 56.5mm x 46mm x 95.29mm
Housing Material
ABS plastic
Warranty
1 year
Certificate
TELEC / FCC / NCC
