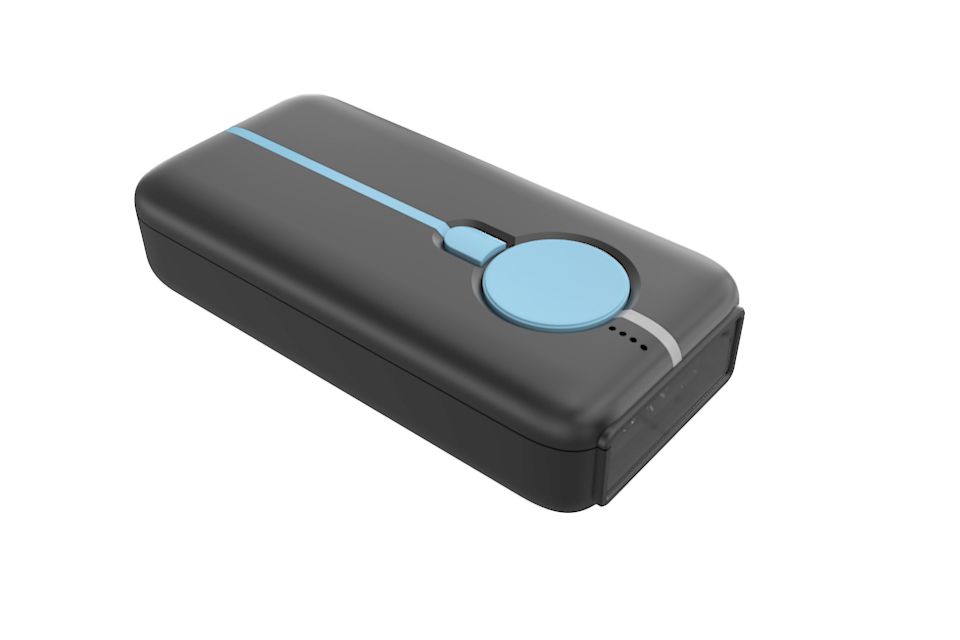

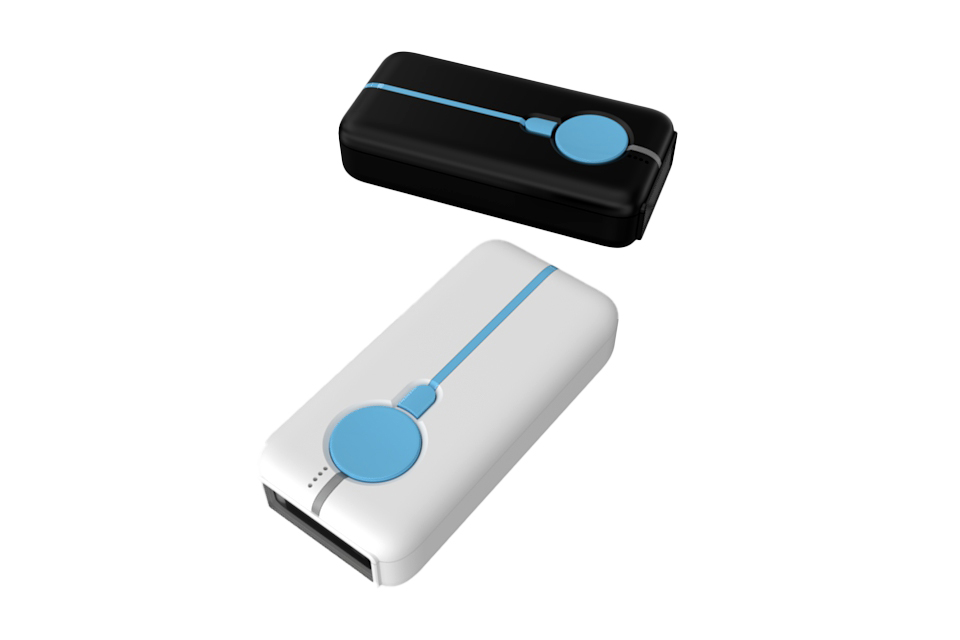

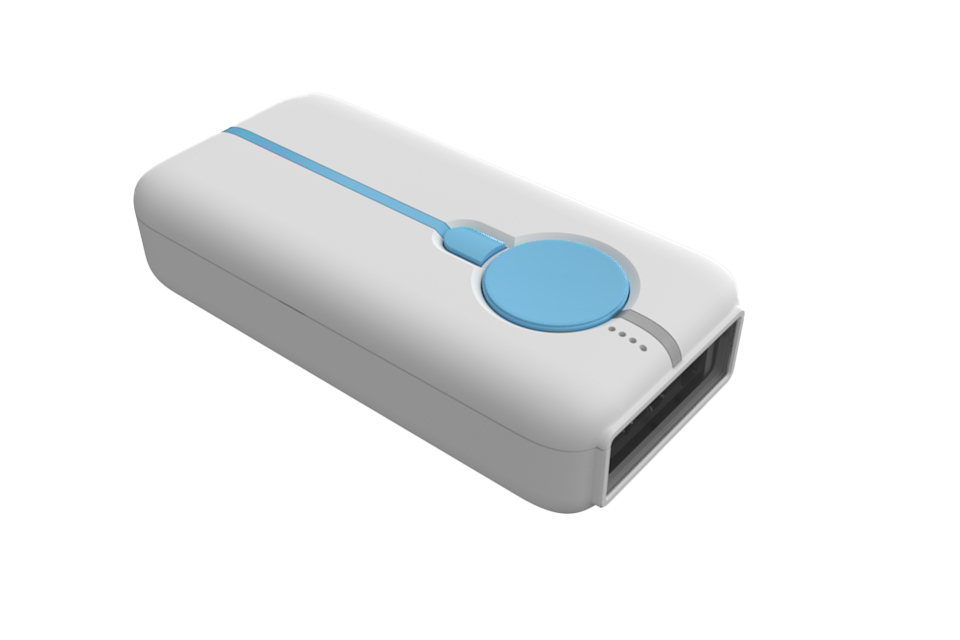

Compact Size Portable CCD Barcode Reader
BT-680C
- Compact size
- CCD sensor, 1500 pixels
- Scan rate 300 scans/sec
- Reading most of 1D codes
- Low power consumption
The BT-680C is a compact, lightweight scanner designed for logistics and healthcare applications. Its pocket-sized form factor makes it easy to carry and ideal for mobile use. Scanned data can be transferred directly to applications or stored in the built-in 4MB memory for later upload. Delivering up to 300 scans per second with a reading depth of up to 300mm, it ensures fast and accurate performance for most 1D barcodes. The elegantly designed contact charging cradle allows convenient battery charging whenever the scanner is placed in the cradle.
specification
General
Interface
Micro USB
Barcodes supported
JAN/UPC/EAN incl.add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128(EAN-128) GS1 DataBar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 fo 5, MSI/Plessey
Communication
RF standard
4.2
Working Distance
10M (Open environment)
Optical
Optical sensor
CCD linear sensor 1,500 pixels
Light Source
1 Red LED 624nm
Resolution
4 mil
Depth of Field
70mm - 250mm (EAN13)
Scan rate
300 scans/sec
PCS
30%
Indicator
Beeper, LED, Vibration
Electrical
Voltage
DC 3.3V ± 5%
Scanning Currents
110 mA
Standby Currents
80 mA
Environment
Operating temperature
0℃ to 50℃ (32℉ to 122℉)
Storage temperature
-20℃ to 60℃ (-4 ℉ to 140℉)
Operating humidity
10% ~90% RH (non-condensing)
Storage humidity
5% ~95% RH (non-condensing)
Shock resistance
1.5m drops
Ambient Light Immunity
Sunlight 100,000 lux
Battery
Battery Type
Lithiumion battery: Sanyo 553450 1150mAh
Number of Scan
41,000 scans (full charge, 1 scan / 1 sec.)
Charge
By USB power retrieving cable
Time Of Charge
About 2 hours
Physical
Weight
Scanner: 64g , Cradle: 52g
Dimensions
Scanner: 89mm x 42.5mm x 23mm Cradle: 56.5mm x 46mm x 95.29mm
Housing Material
ABS plastic
Warranty
1 year
Certificate
CE, FCC, NCC
