Bluetooth 2D Imager ESD Scanner

BD-9541BT ESD

  • Static-safe
  • BT 4.2
  • 1280 x 960 pixels, rolling shutter
  • IP 54 sealing

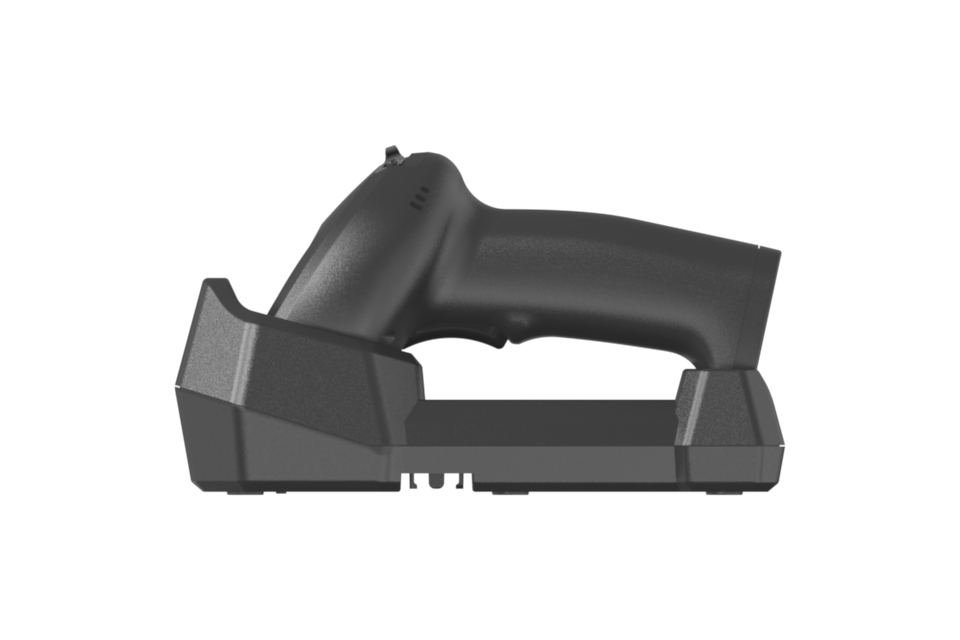

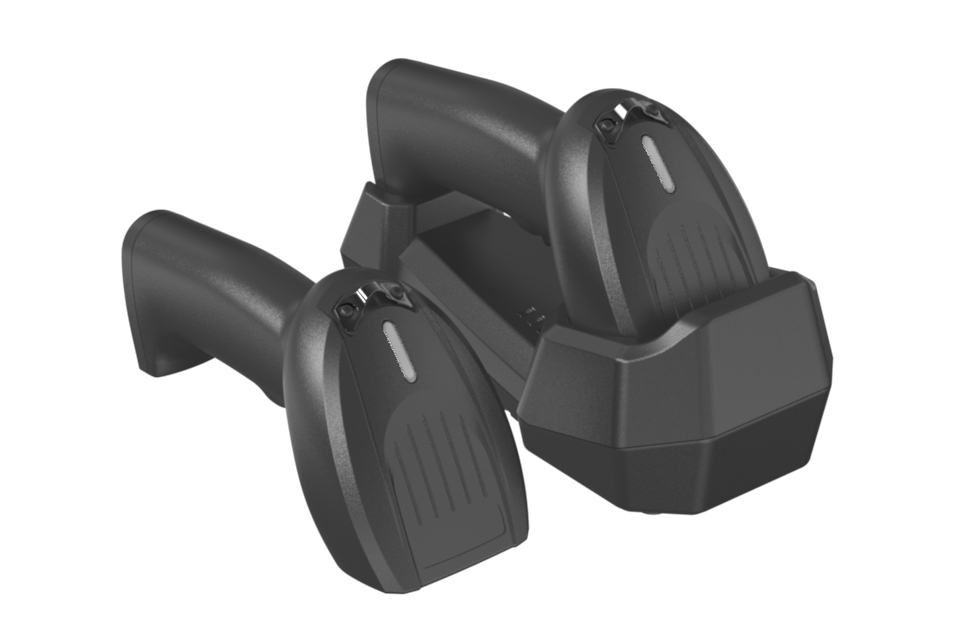

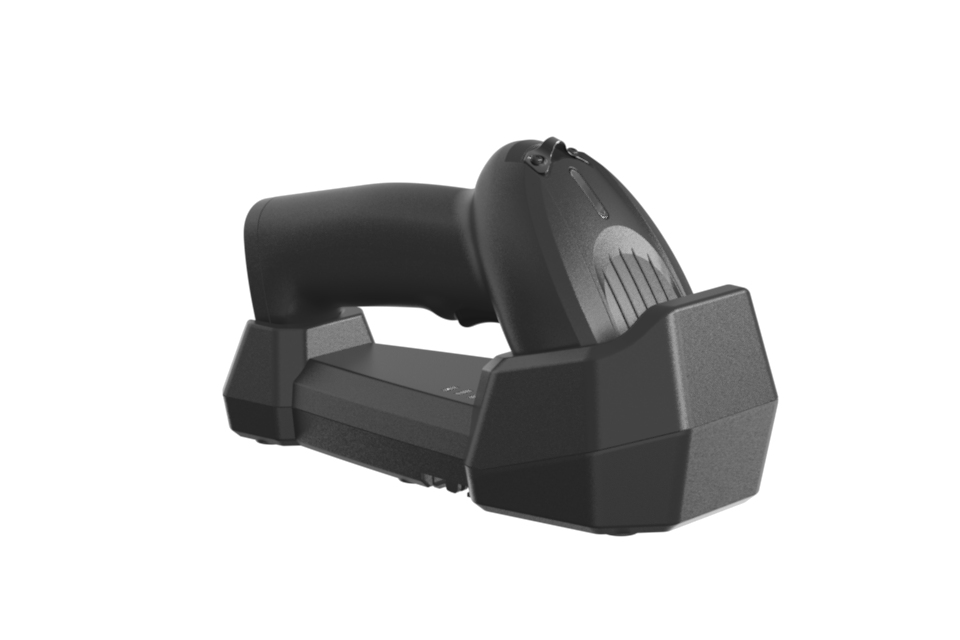

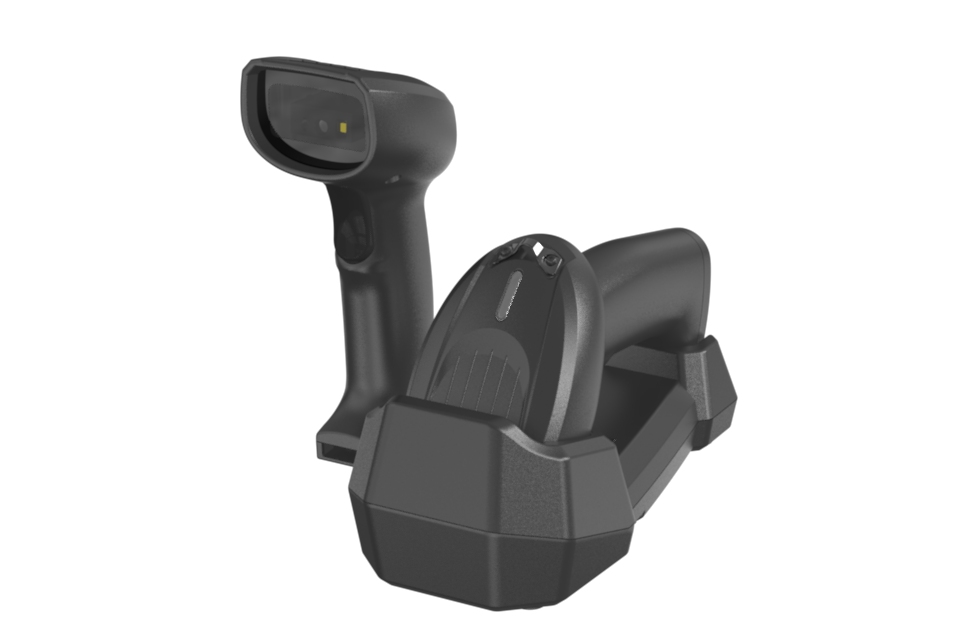

The BD-9541BT ESD delivers aggressive scan performance on linear barcodes and area imaging codes. It's ergonomic design and available with USB-KB, USB-COM, RS-232 and HID-USB interface. The advanced imager reads 1D and 2D barcodes displayed on a screen or printed on a label faster and farther then other standard range scanners. The BD-9541BT ESD is designed specifically to satisfy the stringent requirements of clean-rooms and static-safe manufacturing environments. It's integrated with BT 4.2 module which can connect with device directly or transmit data via cradle. The cradle itself functions as a battery charger, holder, and data receiver.


specification

General

  • Cradle Interface

    USB-KB / USB-COM / RS-232 / HID-USB

  • SE-4107 2D ENGINE
    Barcodes supported
    (1D)

    All UPC/EAN/JAN, EAN 128 Code, Code 39, Code 39 full ASCII, Code 32 / Italian Pharmacode, Code 128, CODABAR/NW 7, Interleaved 2 of 5,Industrial 2 of 5, Matrix 2 of 5, MSI, Telepen, Code 93, Code 11, China Postal, GS1 DataBAR, GS1 DataBAR Expanded,  GS 1DataBar Limited.

  • Barcodes supported
    (2D)

    PDF417, Micro PDF417, QR Code, Micro QR Code, GS1 QR Code, Aztec Code, Data Matrix, GS1 Data Matrix, Maxi Code, Grid Matrix, Han Xin, Postal Codes

Communication

  • RF Standard

    BT 4.2

  • Working Distance

    80M (Open environment)

Optical

  • Sensor Resolution

    1280 x 960 pixels, rolling shutter

  • Light Source

    Aiming LED: Green LED , Illumination: 1 warm white LED

  • Resolution

    5 mil (Code 39), 6.67mil (PDF417)

  • Focal Distance

    From front of engine: 6 in./15.25cm

  • Frame Rate

    60 fps

  • PCS

    25%

  • Indicator

    Beeper, LED, Vibration

Electrical

  • Operating temperature

    0℃ to 40℃ (32℃ to 104˚F)

  • Storage temperature

    -40℃ to 70℃ (-4℃ to 158˚F)

  • Operating Humidity

    10% - 95% RH (Non-condensing)

  • Storage Humidity

    10% - 85% RH (Non-condensing)

  • Shock Resistance

    1.5M drops

  • Light Levels

    100,000 lux

Physical

  • Weight

    Scanner: 190g ; Cradle: 307g

  • Dimensions

    Scanner: 84mm (L) x 65.5mm (W) x 164.14mm (H)
    Cradle:   69.5mm (L) x 89.71mm (W) x 198.08mm (H)

  • Housing Material

    ABS ESD plastic withstands ESD up to 105 - 109 ohms per square

  • Warranty

    1 year

  • Certificate

    CE / FCC

  • Sealing

    IP 54

Battery

  • Battery Type

    lithiumion battery:  Panasonic 18650;   2600mAh

  • Number of Scan

    50,000 scans ( full charge , 1 scan / 1 sec. )

  • Charge

    By cradle charge

  • Time of Charge

    About 5 hours
