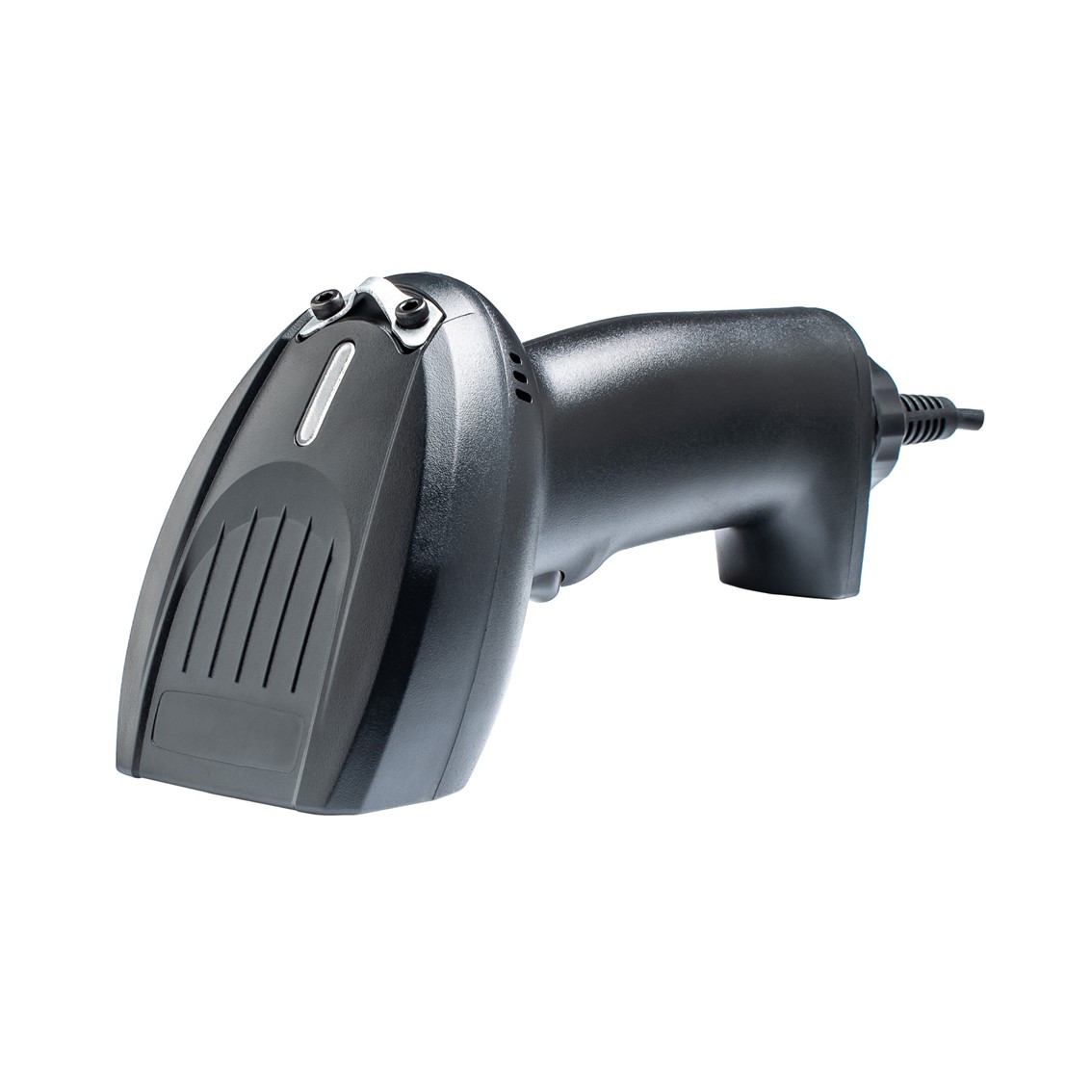

The BD-9500HD-ESD 2D Imager ESD Scanner is specifically designed to meet the stringent requirements of cleanrooms and static-safe manufacturing environments. It is manufactured using an internal mixed process with an antistatic agent to ensure protection. Both the scanner and its cable comply with the standards for ESD-protected areas and can withstand ESD up to 105 ~ 109 ohms per square.
General
Interface
USB-KB / USB-COM / RS-232
Barcodes Supported (1D)
UPC-A, UPC-E, EAN-13, EAN-8, Code 128, GS1-128, Code-39, Code-32, Code-93, Pharmacode Codabar/NW7, MSI, Interleaved 2 of 5, GS1 DataBar-14, GS1 DataBar Stacked, GS1 DataBar Limited GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, Composite Component A / B / C
Barcodes Supported (2D)
PDF 417, MicroPDF 417, QR Code, Micro QR Code, Dara Matrix , Aztec, Maxi Code, Dot Code
Optical
Optical System
CMOS area sensor 1280 x 800 pixels
Light Source
610nm Red LED / White LED 6000- 6,500K
Resolution
3 mil (Code 39), 5 mil (QR Code)
Depth of Field
30mm - 300mm (EAN-13 3 mil)
Frame Rate
60 fps
PCS
30%
Indicator
Beeper and LED
Electrical
Voltage
DC 5V
Scanning Currents
380 mA
Environment
Operating Temperature
0℃ to 40℃ (32℉ to 104℉ )
Storage Temperature
-40℃ to 70℃ (-40℉ to 158℉)
Relative Humidity
10% - 95%
Shock Resistance
1.8m drops
Physical
Weight
140g
Dimensions
161.73mm (L) x 65.5mm (W) x 84mm (H)
Housing Material
ABS ESD plastic Withstands ESD up to 105 - 109 ohms per square
Cable
Length: 180cm / USB Type: A or C, RS-232
Warranty
1 year
Certificate
CE / FCC / BSMI
Sealing
IP 54
