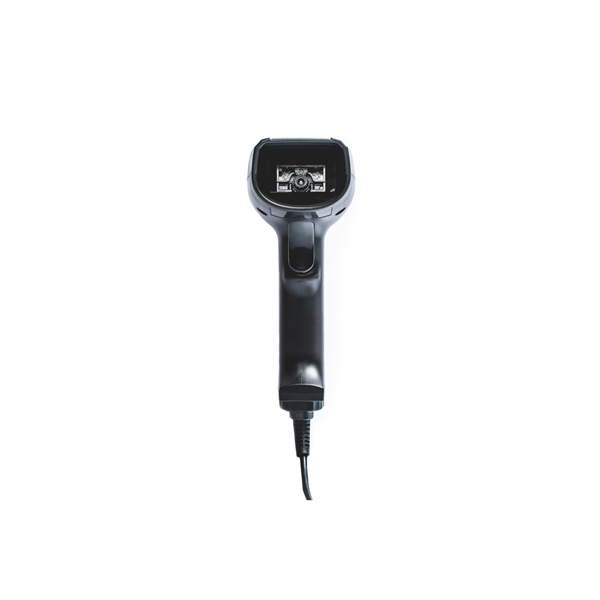

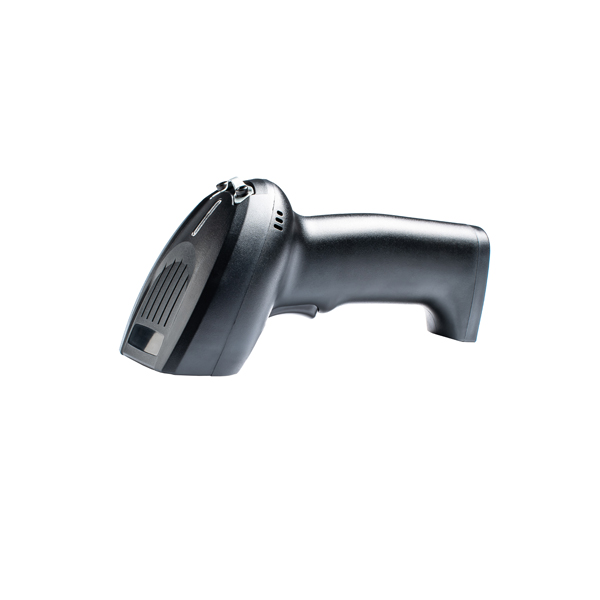

BD-9500HD delivers aggressive scan performance on linear barcodes and area imaging codes. It’s ergonomic design and available with multiple interface. BD-9500HD combines high resolution megapixel sensor for light industrial, retail, documents / billing process and banking / finance environment, health care, medical industry. It’s perfect to read 1D 3mil barcodes and 2D 5 mil barcodes. It is certificated by IP 54 and high performance to read on electronic display such as smart phone, tablet.
specification
General
Interface
USB-KB / USB-COM / RS-232
Barcodes supported (1D)
UPC-A, UPC-E, EAN-13, EAN-8, Code 128, GS1-128, Code-39, Code-32, Code-93, Pharmacode, Codabar/NW7, MSI, Interleaved 2 of 5, GS1 DataBar-14, GS1 DataBar Stacked, GS1 DataBar Limited, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, Composite Component A / B / C
Barcodes supported (2D)
PDF 417, Micro PDF 417, QR Code, Micro QR Code, Dara Matrix , Aztec, Maxi Code, Dot Code
Optical
Optical System
1280 x 800 pixels
Light Source
610nm Red LED / White LED 6000- 6,500K
Resolution
3 mil (Code 39), 5 mil (QR Code)
Depth of Field
30mm - 300mm (EAN-13 3 mil)
Frame Rate
60 fps
PCS
30%
Electrical
Voltage
DC 5V
Scanning Currents
380 mA
Environment
Operating temperature
0℃ to 40℃ (32℉ to 104℉ )
Storage temperature
-40℃ to 70℃ (-40℉ to 158℉ )
Relative Humidity
10% - 95%
Shock Resistance
1.8m drops
Physical
Weight
140g (excluding cable)
Dimensions
161.73mm (L) x 65.5mm (W) x 84mm (H)
Housing Material
ABS plastic
Cable
Length: 180cm / USB Type: A or C, RS-232
Warranty
1 year
Certificate
CE / FCC / BSMI
Sealing
IP 54
