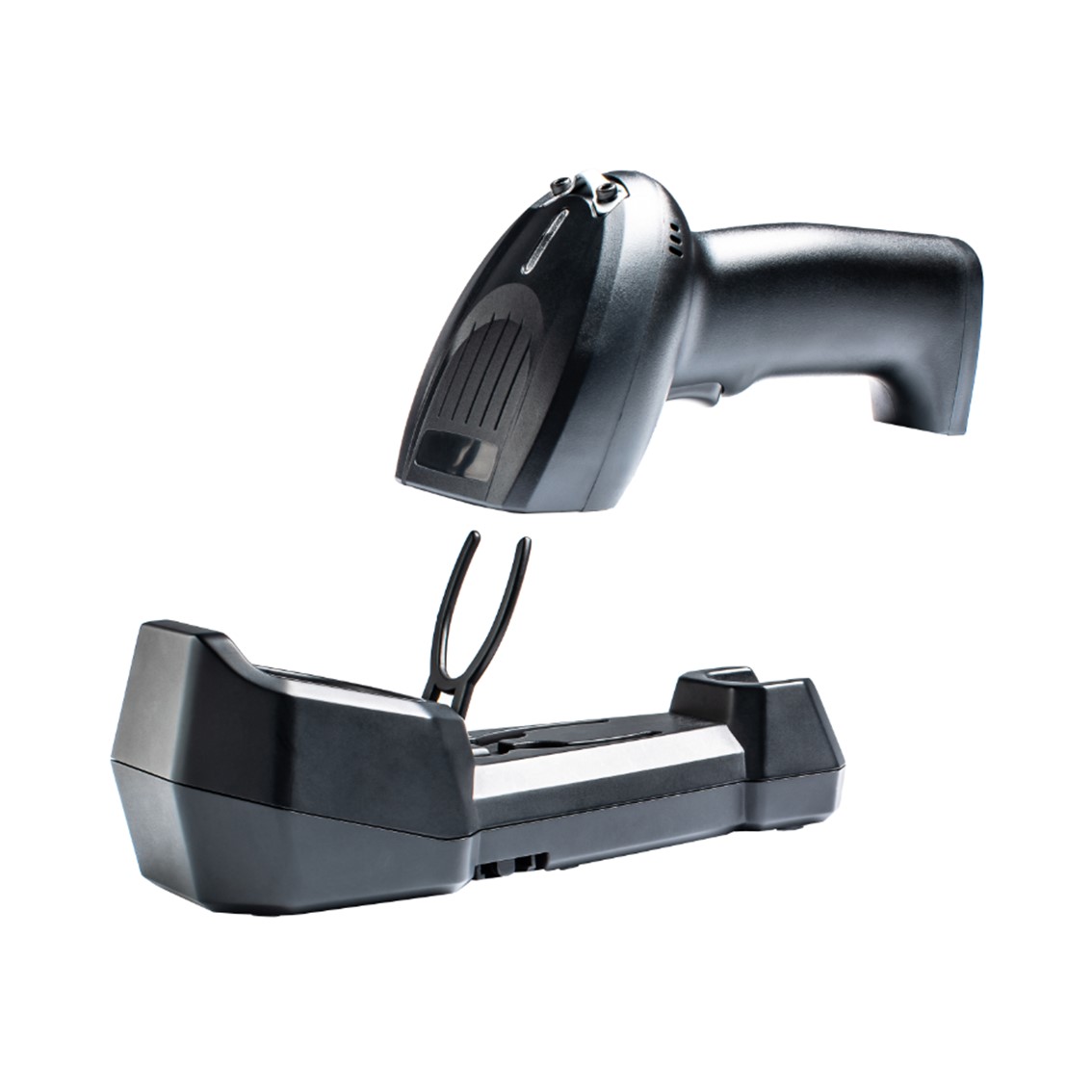

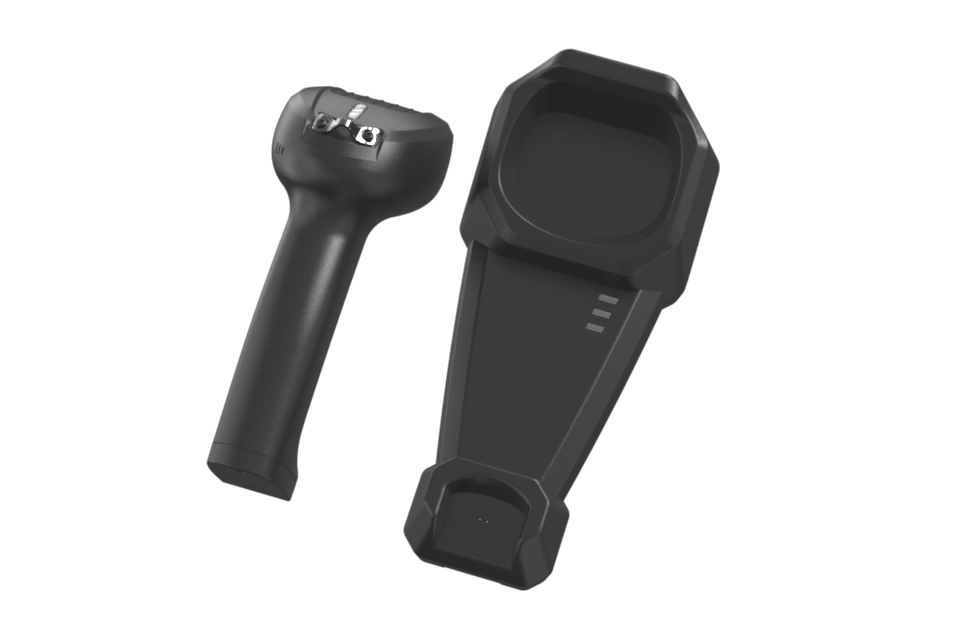

The BD-9500BT-ESD combines a high-resolution megapixel sensor, making it perfect for reading 1D barcodes as small as 3 mil and 2D barcodes as small as 5 mil. Its ergonomic design is complemented by multiple interface options, including USB-KB, USB-COM, RS-232, and HID-USB. It is engineered specifically to satisfy the stringent requirements of cleanrooms and static-safe manufacturing environments, the BD-9500BT-ESD features an integrated BT 4.2 module for direct device connection or data transmission via its cradle. The cradle itself functions as a battery charger, holder, and data receiver.
specification
General
Cradle Interface
USB-KB / USB-COM / RS-232 / HID-USB
Barcodes Supported (1D)
All UPC/EAN/JAN, Code 39, Code 39 full ASCII, Code 32 / Italian Pharmacode, Code 128, CODABAR, Interleaved 2 of 5, MSI, Code 93, GS1 DataBAR 14, GS1 DataBar Expanded, GS1 Expanded Stacked, GS1 Data Bar Limited, GS1 Composite Component A/B/C
Barcodes Supported (2D)
PDF417, Micro PDF417, DataMatrix, QR Code, Micro QR Code, Aztec, Maxicode, DotCode
Communication
RF Standard
BT 4.2
Working Distance
80M (Open environment)
Optical
Optical Sensor
1280(H) x 800 (V) pixels
Light Source
610nm Red LED / White LED 6000- 6,500K
Resolution
3 mil (Code 39), 5 mil (QR Code)
Depth of Field
30mm - 300mm (EAN-13 3 mil)
Frame Rate
60 fps
PCS
30%
Indicator
Beeper, LED, Vibration
Environment
Operating Temperature
0℃ to 40℃ (32℃ to 104˚F)
Storage Temperature
-40℃ to 70℃ (-40℃ to 158 F)
Operating Humidity
10% - 95% RH (Non-condensing)
Storage Humidity
10% - 85% RH (Non-condensing)
Drop
1.8m drops
Light Levels
100,000 lux
Physical
Weight
Scanner: 190g ; Cradle: 307g
Dimensions (L x W x H)
Scanner: 84mm x 65.5mm x 164.14mm; Cradle: 69.5mm x 89.71mm x 198.08mm
Housing Material
ABS ESD plastic Withstands ESD up to 105 - 109 ohms per square
Warranty
1 year
Certificate
BSMI / FCC / NCC
Sealing

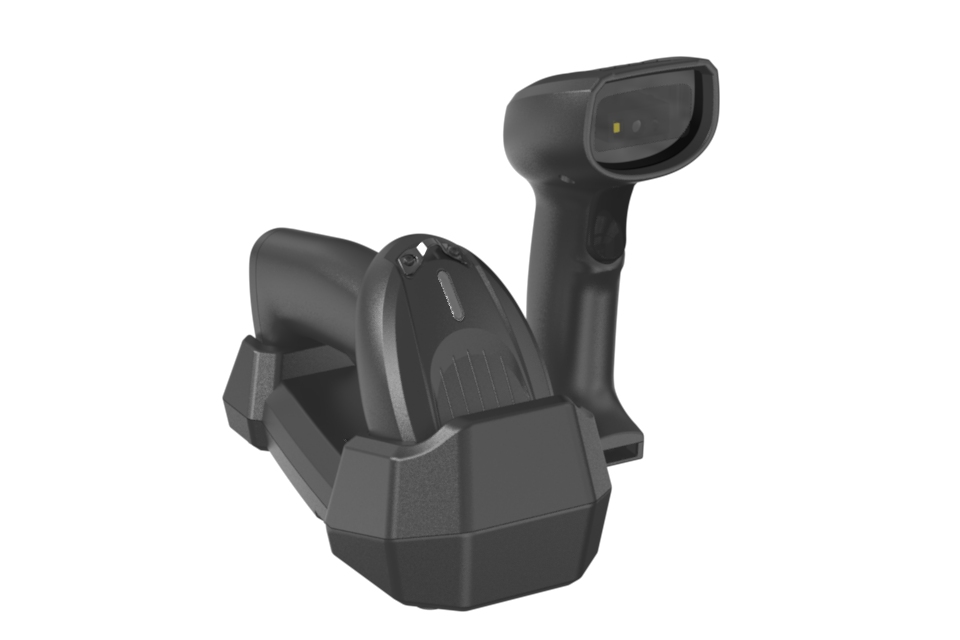

IP 54
Battery
Battery Type
lithiumion battery: Panasonic 18650; 2600mAh
Number of Scan
50,000 scans ( full charge , 1 scan / 1 sec. )
Charge
By cradle charge
Time of Charge
About 5 hours
