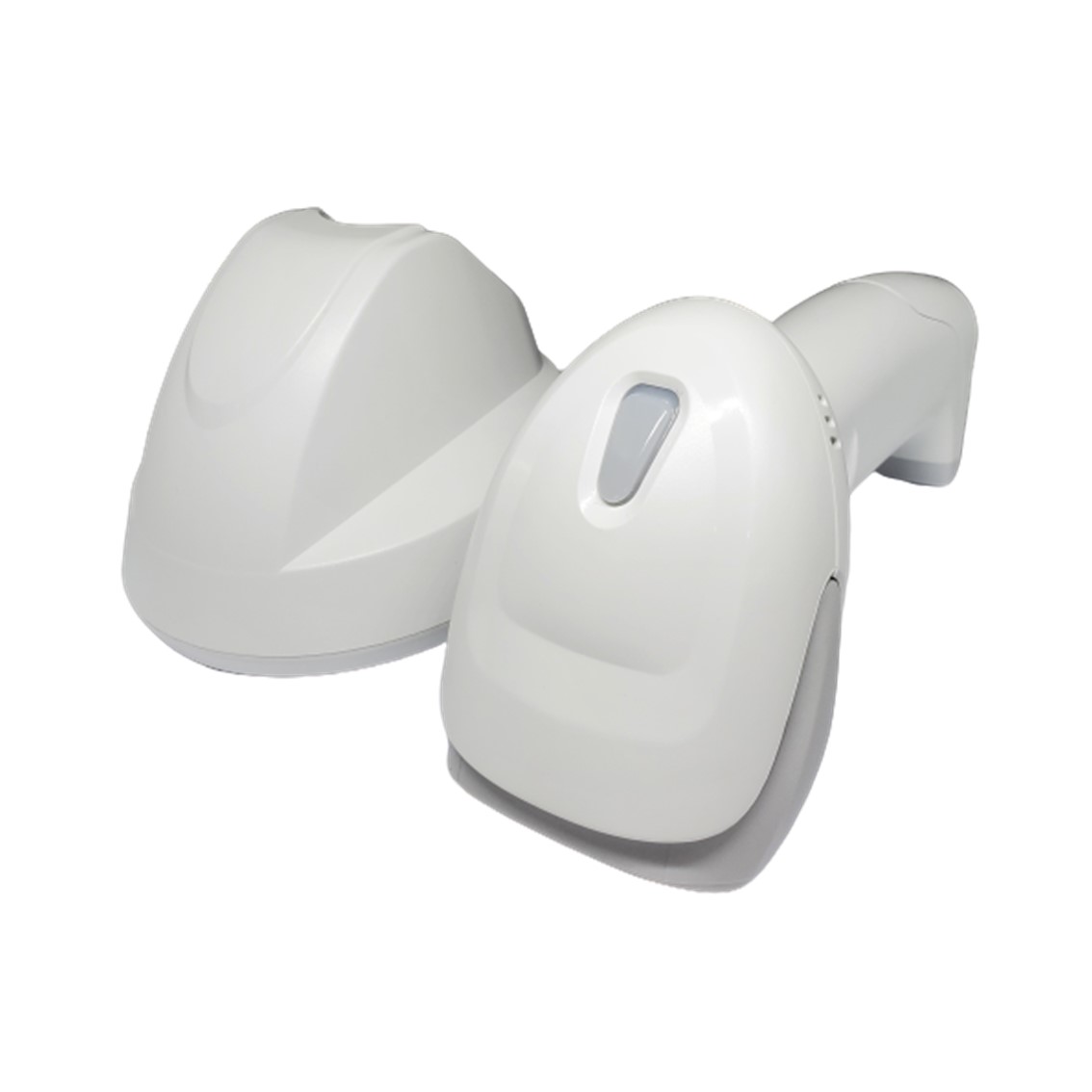

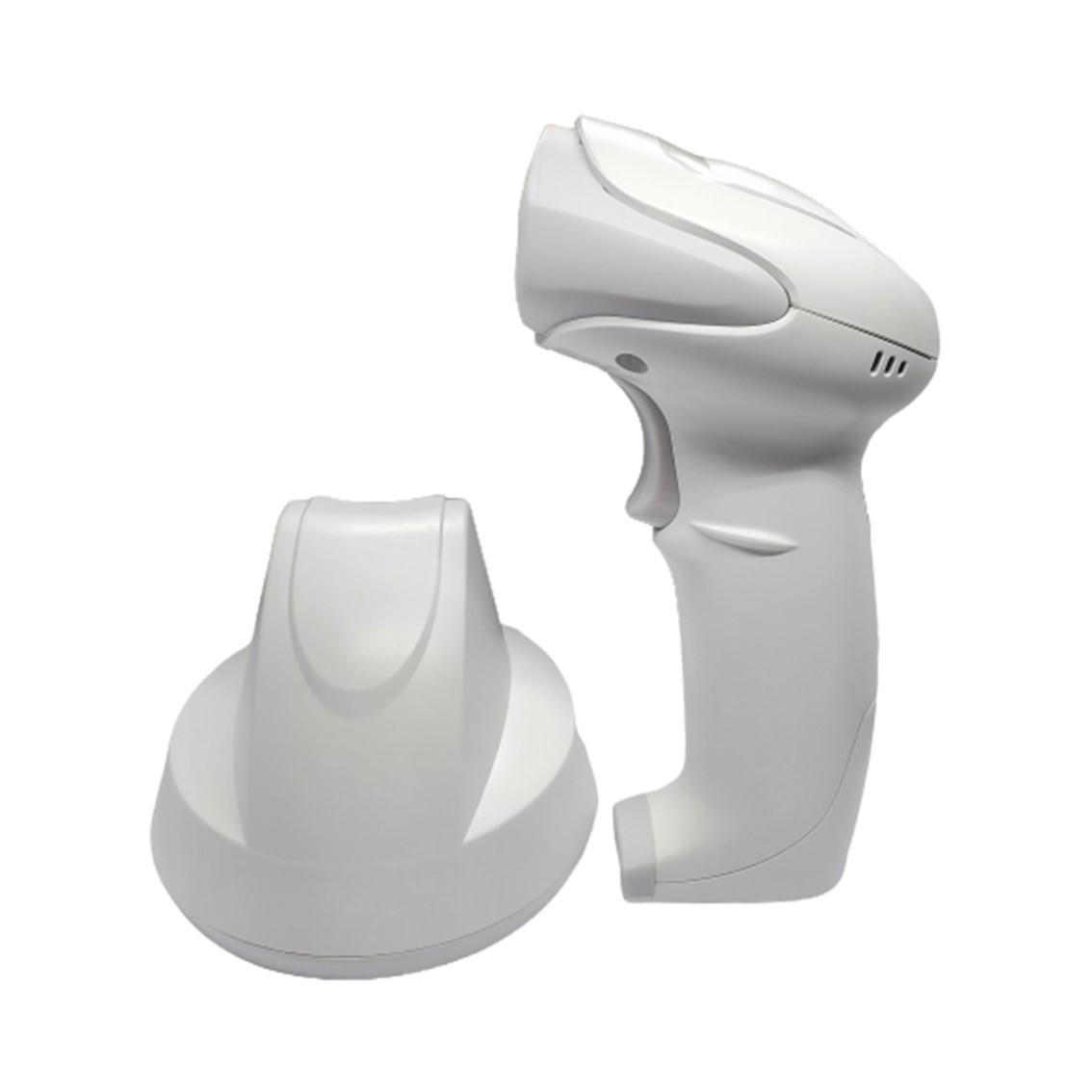

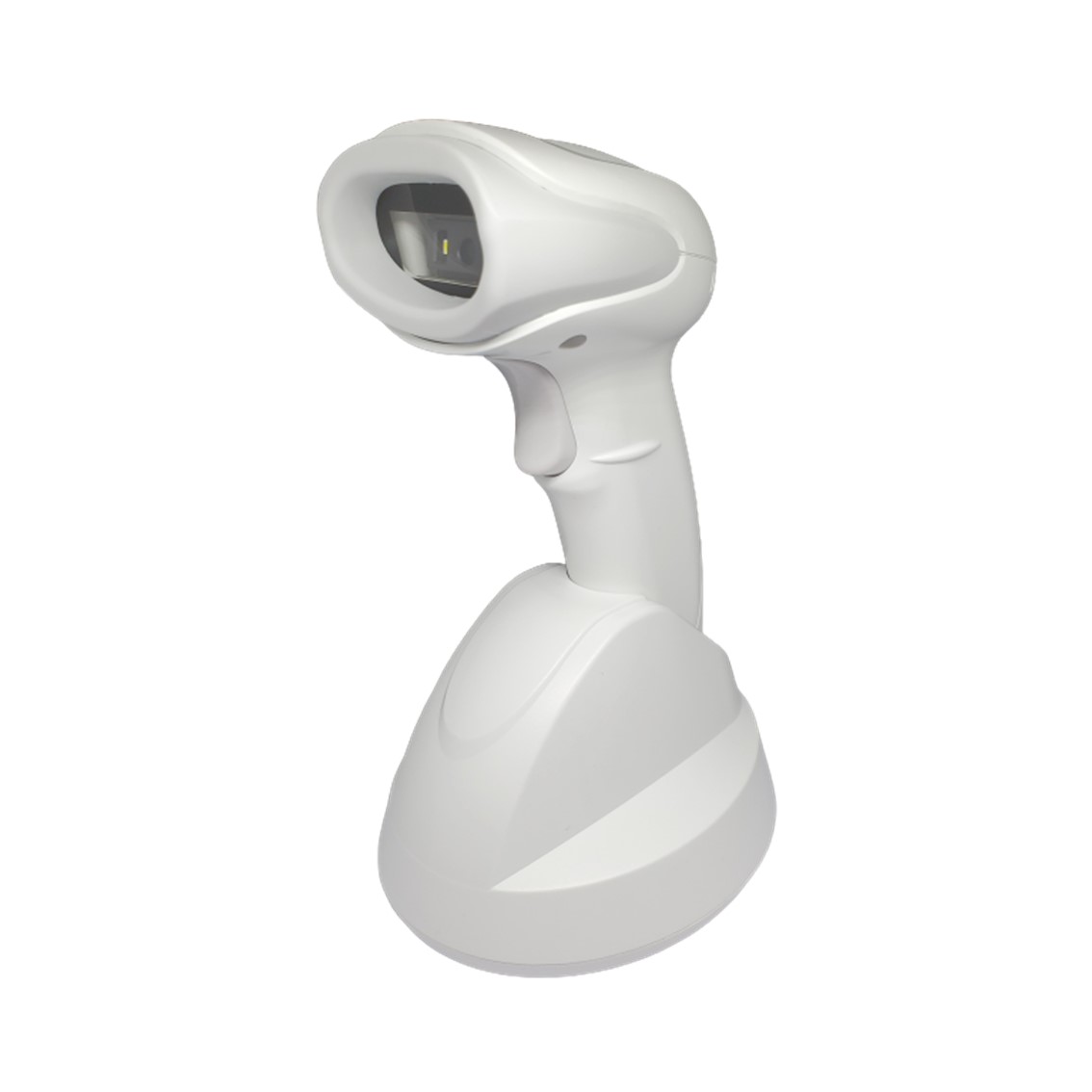

Wireless Antimicrobial Scanner BD-6530BT-HC is designed specifically for the application in a healthcare environment with antimicrobial protection to resist the growth of odor-and-stain-causing bacteria. It complies with JIS Z2801 : 2010 antimicrobial standard. The housing’s plastic material incorporates a silver inorganic antimicrobial agent that will not wear off during its lifetime and this provides an extra layer of protection against the growth of microorganisms. The BD-6530BT-HC delivers outstanding scanning performance on all common 1D and 2D barcodes which making it also perfect for general purpose applications.
specification
General
Interface
USB-KB / USB-COM / RS-232 / HID-USB
Barcode supported (1D)
All UPC/EAN/JAN, Code 39, Code 39 full ASCII, Code 32/ Italian Pharmacode, Code 128, CODABAR, Interleaved 2 of 5, MSI, Code 93, GS1 DataBar 14, GS1 DataBar Expanded, GS1 Expanded Stacked, GS1 DataBar Limited, GS1 Composite Component A/B/C
Barcode supported (2D)
PDF417, Micro PDF 417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec
Communication
RF standard
BT 4.2
Working Distance
80M (Open environment)
Optical
Optical sensor
640(H) x 480 (V) Pixels
Light Source
610 nm RED LED /White LED 6000- 6,500K
Resolution
4 mil (Code 39), 6.67 mil (DataMatrix)
Depth of Field
55 - 170 mm (13Mil)
Scan Rate
120 fps
PCS
30%
Indicator
Beeper, LED, Vibration
Electrical
Voltage
DC 3.3V ± 5%
Scanning Currents
<350 mA
Standby Currents
<100 mA
Environment
Operating Temperature
0℃ to 40℃ (32℉ to 104℉)
Storage Temperature
-40℃ to 70℃ (-40℉ to 158℉)
Operating Humidity
10% - 95% RH (Non-condensing)
Storage Humidity
10% - 85% RH (Non-condensing)
Shock Resistance
1.5m drops
Light Levels
100,000 lux
Physical
Weight
Scanner: 189g, Cradle: 119g
Dimensions
Scanner: 90mm (L) x 64mm (W) x158mm (H)
Cradle: 120mm (L) x 100mm (W) x 77mm (H)Housing Material
ABS plastic with Antimicrobial Additives (Silver inorganic antimicrobial agent)
Warranty
1 year
Certificate
FCC / CE / BSMI / NCC
Battery
Battery Type
Rechargeable Li-ion battery: 2600mAh
Number of Scan
50,000 scans ( full charge , 1 scan / 1 sec. )
Charge
By cradle charge
Time Of Charge
About 5 hours
