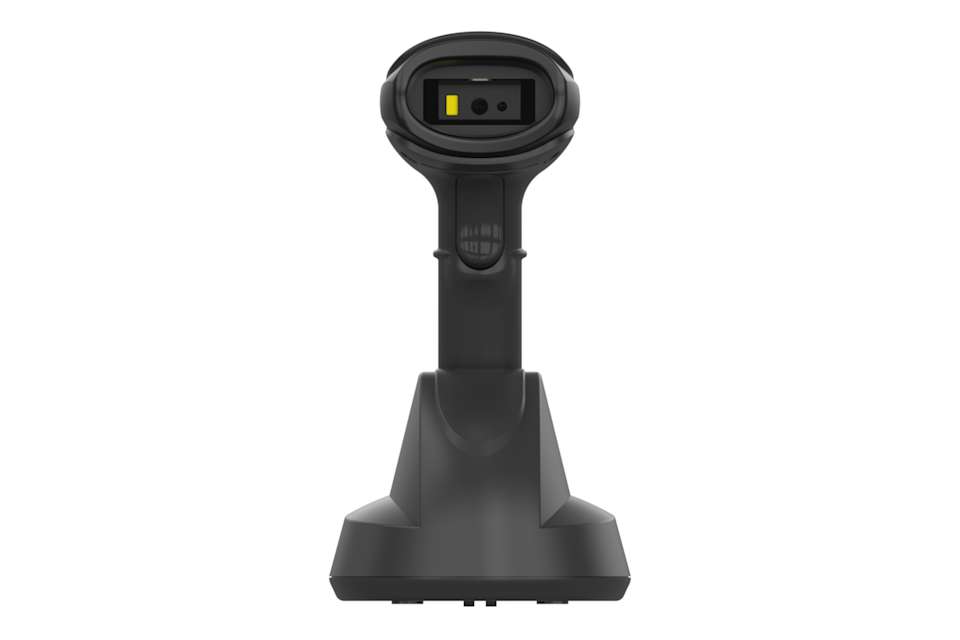

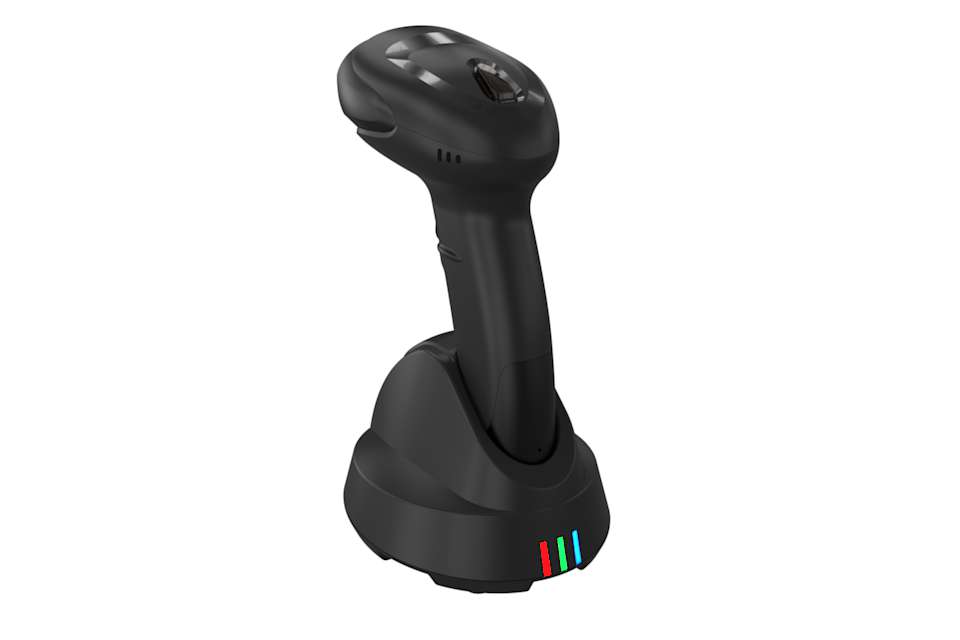

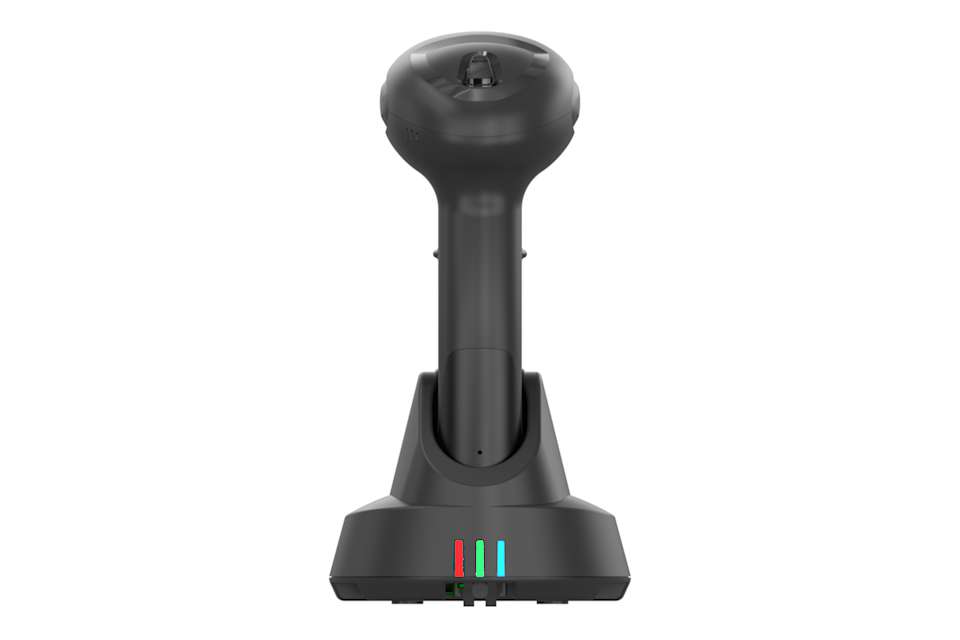

The BD-6530BT ESD offers exceptional scan performance for both linear barcodes and area imaging codes. Its ergonomic design is complemented by multiple interface options, including USB-KB, USB-COM, RS-232, and HID-USB. It is engineered specifically to satisfy the stringent requirements of cleanrooms and static-safe manufacturing environments, the BD-6530BT ESD features an integrated BT 4.2 module for direct device connection or data transmission via its cradle. The cradle itself functions as a battery charger, holder, and data receiver.
specification
General
Interface
USB-KB / USB-COM / RS-232 / HID-USB
Barcodes supported (1D)
All UPC/EAN/JAN, Code 39, Code 39 full ASCII, Code 32 /Italian Pharmacode, Code 128, CODABAR, Interleaved 2 of 5, MSI, Code 93, GS1 DataBAR 14, GS1 DataBar Expanded, GS1 Expanded Stacked, GS1 Data Bar Limited, GS1 Composite Component A/B/C
Barcodes supported (2D)
PDF417, Micro PDF417, DataMatrix, QR Code, Micro QR Code, Aztec, Maxicode
Communication
RF Standard
BT 4.2
Working Distance
80M (Open environment)
Optical
Optical Sensor
640(H) x 480 (V) pixels
Light Source
Red LED (610nm) / White LED 6000 – 6500K
Resolution
4 mil (Code 39), 6.67 mil (Datamatrix)
Depth of Field
55 – 170 mm (13Mil)
Frame Rate
120 fps
PCS
30%
Indicator
Beeper, LED and Vibration
Electrical
Voltage
DC 3.3V ± 5%
Scanning Currents
< 350 mA
Standby currents
<100 mA
Environment
Operating temperature
0℃ to 40℃ (32℉ to 104℉)
Storage temperature
-40℃ to 70℃ (-40℉ to 158℉ )
Operating Humidity
10% - 95% RH (Non-condensing)
Storage Humidity
10% - 85% RH (Non-condensing)
Shock Resistance
1.5m drops
Light Levels
100,000 lux
Physical
Weight
Scanner: 189g , Cradle: 119g
Dimensions
Scanner: 82.53mm (L) x 66.4mm (W) x 162.08mm (H)
Cradle: 120mm (L) x 100mm (W) x 77mm (H)Housing Material
ABS ESD plastic up to 10 5 – 10 9 ohms per square
Warranty
1 year
Certificate
CE / FCC
Battery
Battery Type
Rechargeable Li-ion battery: 2600mAh
Number of Scan
50,000 scans ( full charge , 1 scan / 1 sec. )
Charge
By cradle charge
Time of Charge
About 5 hours
