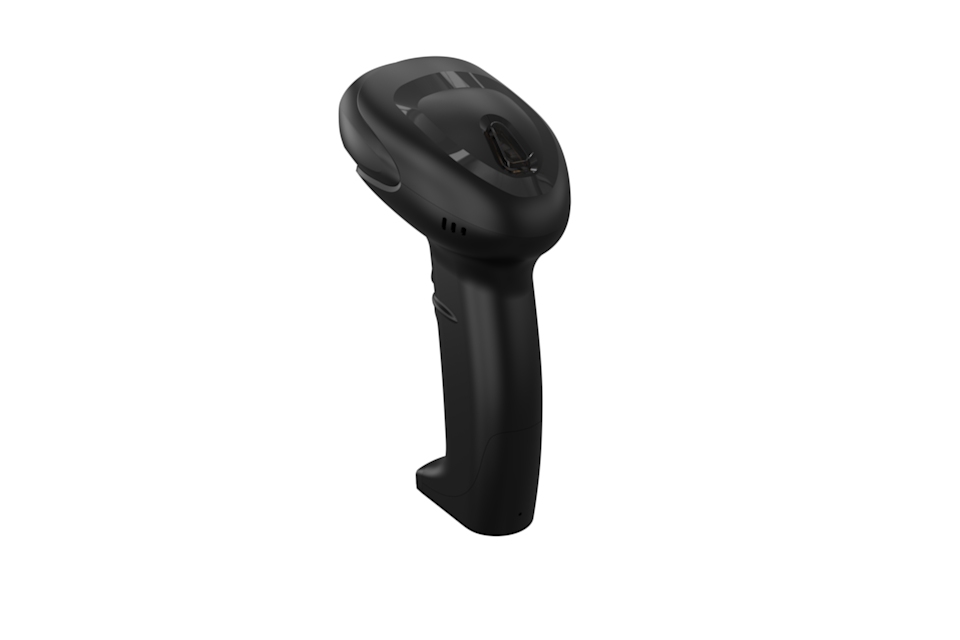

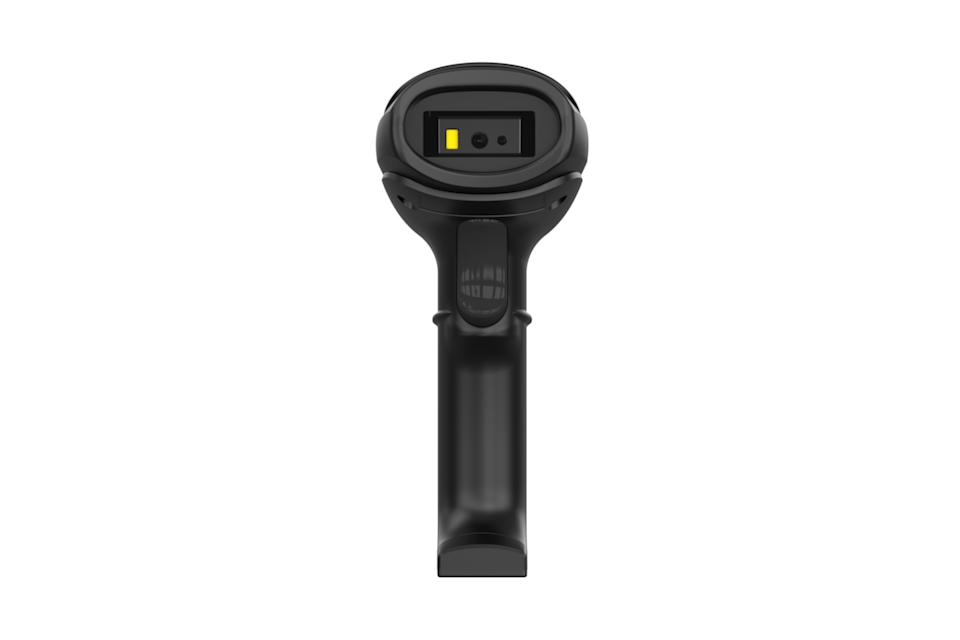

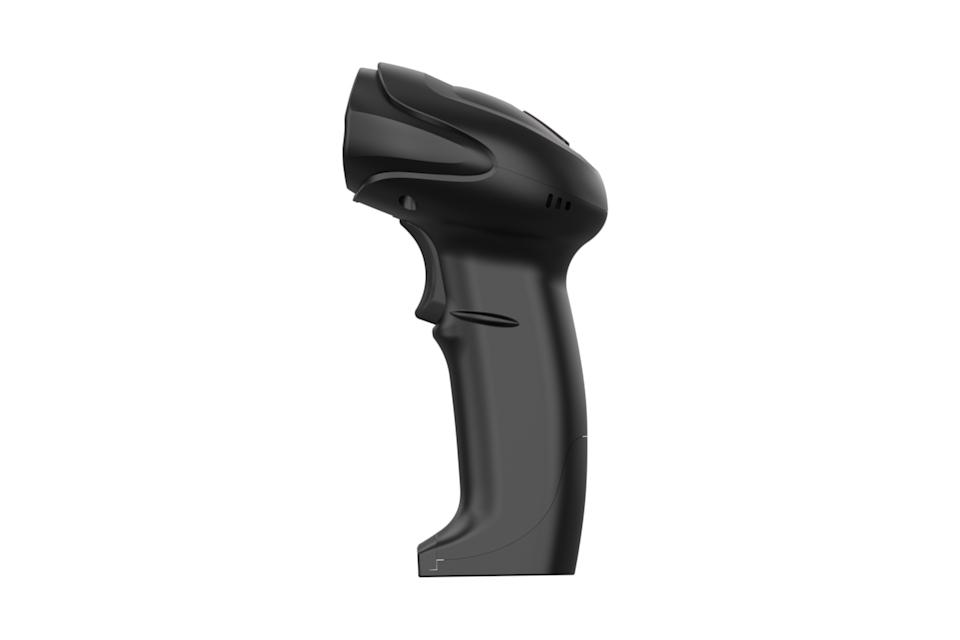

The BD-6530 ESD offers exceptional scan performance for both linear barcodes and area imaging codes. Its ergonomic design is complemented by multiple interface options, including USB-KB, USB-COM and RS-232. Specifically engineered to satisfy the stringent requirements of cleanrooms and static-safe manufacturing environments. It is manufactured using an internal mixed process with an antistatic agent to ensure protection. Both the scanner and its cable comply with the standards for ESD-protected areas and can withstand ESD up to 105 ~ 109 ohms per square.
specification
General
Interface
USB-KB / USB-COM / RS-232
Barcodes supported (1D)
UPC-A, UPC-E, EAN-13, EAN-8, Code 128, GS1-128, Code-39, Code-32, Code-93, Pharmacode, Codabar/NW7, MSI, Interleaved 2 of 5, GS1 DataBar-14, GS1 DataBar Stacked, GS1 DataBar Limited, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, Composite Component A / B / C
Barcodes supported (2D)
PDF 417, MicroPDF 417, QR Code, Micro QR Code, Dara Matrix, Aztec, Maxi Code, Dot Code
Optical
Optical sensor
640 (H) x 480 (V) pixels
Light Source
Aiming 610nm red LED + Illumination 6000-6500k white LED
Resolution
3 mil (Code 39), 6.67 mil (Data Matrix , QR Code)
Field of View
Horizontal: 28°; Vertical: 36°
Frame Rate
120 fps
PCS
30%
Electrical
Operating temperature
0℃ to 40℃ (32℉ to 104℉)
Storage temperature
-40℃ to 70℃ / -40℉ to 158℉
Operating Humidity
10% - 95% RH non-condensing
Storage Humidity
10% - 85% RH non-condensing
Shock resistance
1.5m drops
Physical
Weight
190g w/cable
Dimensions
82.5mm (L) x 66.4mm (W) x 161.3mm (H)
Housing Material
ABS ESD plastic up to 10 5 – 10 9 ohms per square
Cable
Length: 5ft (150cm) / USB Type A or C, RS-232
Warranty
1 year
Certificate
CE / FCC
