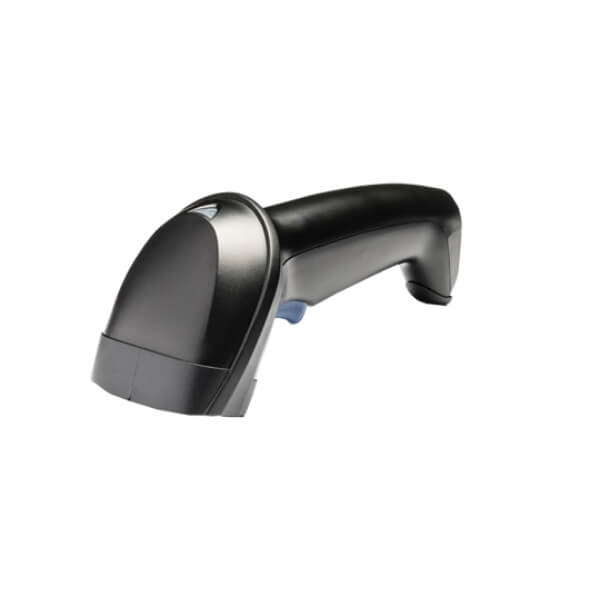

BD-1530 delivers aggressive scan performance on all linear barcodes and 2D codes. It provides fast and reliable scanning performance. It’s ergonomic design and available with multiple interfaces that changes interface by replacing cable. BD-1530 is valued product of general purpose cabled scanner. It’s perfect for using in retail, document/billing process and banking/finance environment, health care, medical industry.
specification
General
Interface
USB-KB / USB-COM / RS-232
Barcodes supported (1D)
UPC-A, UPC-E, EAN-13, EAN-8, Code 128, GS1-128, Code-39, Code-32, Code-93, Pharmacode, Codabar/NW7, MSI, Interleaved 2 of 5, GS1 DataBar-14, GS1 DataBar Stacked, GS1 DataBar Limited, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, Composite Component A / B / C
Barcodes supported (2D)
PDF 417, MicroPDF 417, QR Code, Micro QR Code, Dara Matrix, Aztec, Maxi Code, Dot Code
Optical
Optical sensor
640 (H) x 480 (V) pixels
Light Source
Aiming 610nm red LED + Illumination 6000-6500k white LED
Resolution
3 mil (Code 39), 6.67 mil (Data Matrix , QR Code)
Field of View
Horizontal: 36°; Vertical: 28°
Frame Rate
120 fps
PCS
30%
Indicator
Beeper and LED
Electrical
Voltage
DC 5V
Scanning Currents
130 mA
Standby Currents
95 mA
Environment
Operating temperature
0℃ to 40℃ (32℉ to 104℉)
Storage temperature
-40℃ to 70℃ / -40℉ to 158℉
Operating Humidity
10% - 95% RH non-condensing
Storage Humidity
10% - 85% RH non-condensing
Shock Resistance
1.5m drops
Light Levels
100,000 lux
Physical
Weight
182g w/ Cable
Dimensions
173.3mm (L) x 69.7mm (W) x 72.6mm (H)
Housing Material
ABS plastic
Cable
Length: 5ft (150cm) / USB Type A or C, RS-232
Warranty
1 year
Certificate
CE / FCC
