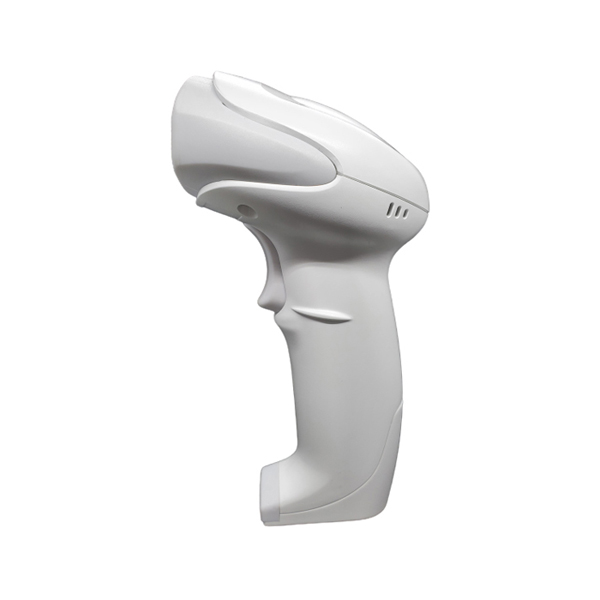

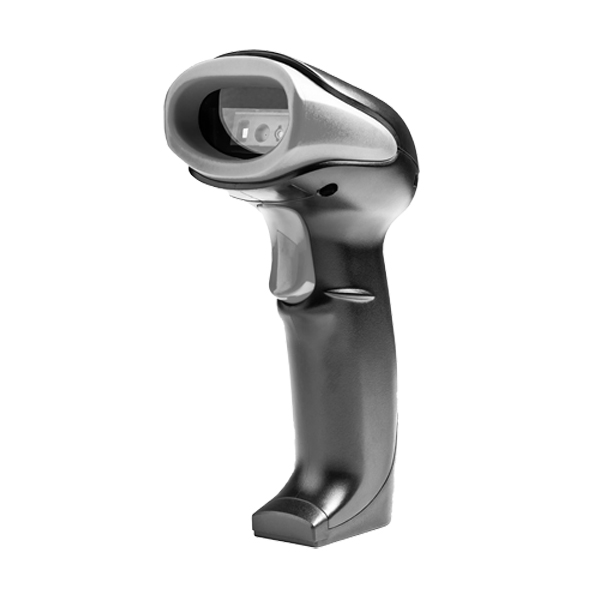

BC-6500 is a barcode scanner which has powerful scan engine makes the reading performance similar to more expensive laser barcode scanners. With this device you can reliably and consistently scan barcodes up to 45 cm.
specification
General
Interface
USB-HID / USB-COM / RS-232
Barcode supported
All UPC/EAN/JAN, EAN128 Code, Code 39, Code 39 Full ASCII, Code32 / Italian Pharmacode, Code 128, CODABAR/NW7, Interleave 2 of 5, Industrial 2 of 5, Matrix 2 of 5, MSI/PLESSEY, Telepen, Code 93, Code 11, China Postage, GS1 DataBar
Optical
Optical sensor
2500 pixels
Light Source
Red LED (660mm)
Resolution
4 mil
Depth of Field
10 – 390mm
Scan rate
270 scans/sec
PCS
45%
Indicator
Beeper and LED
Electrical
Voltage
+ 5V ± 5%
Scannig currents
110mA
Standby currents
<90 mA
Environment
Operating temperature
0 °C to 40 °C / 32 °F to 104 °F
Storage temperature
-40 °C to 70 °C / -40 °F to 158 °F
Operating humidity
10% ~95% RH non-condensing
Storage humidity
10% ~85% RH non-condensing
Shock resistance
1.5m drops
Physical
Weight
140g w/ Cable
Dimensions
155mm (L) x 65mm (W) x 90mm (H)
Housing Material
ABS plastic
Cable
Length: 5ft (150cm) / USB A or C Type, RS-232
Warranty
1 year
Certificate
CE / FCC
