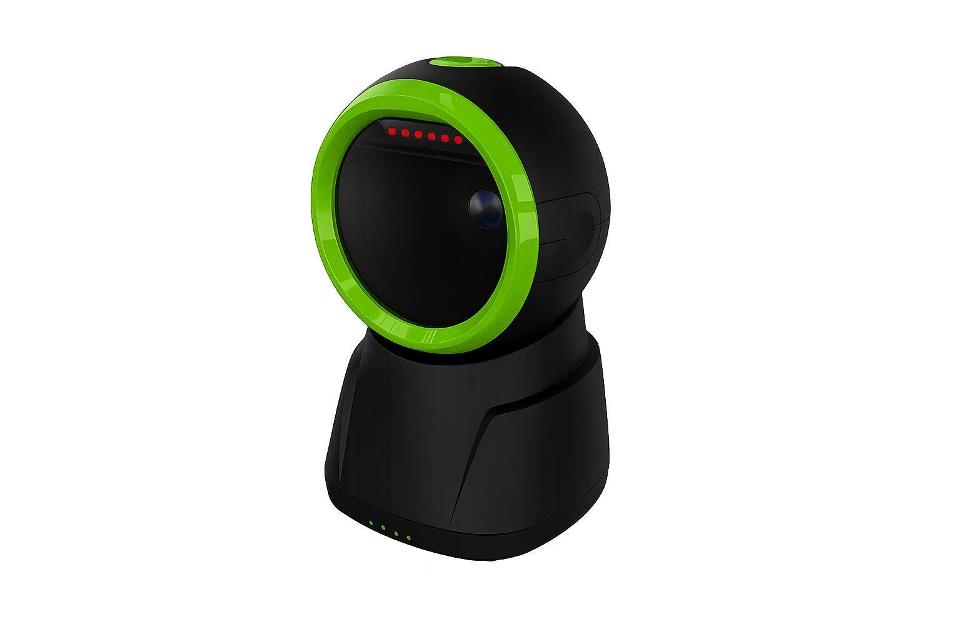

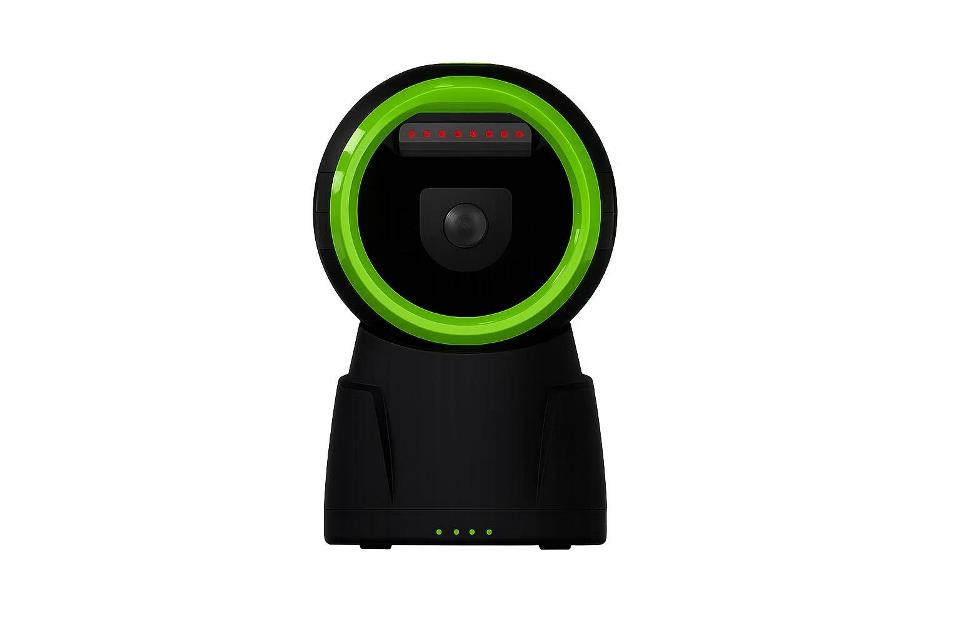

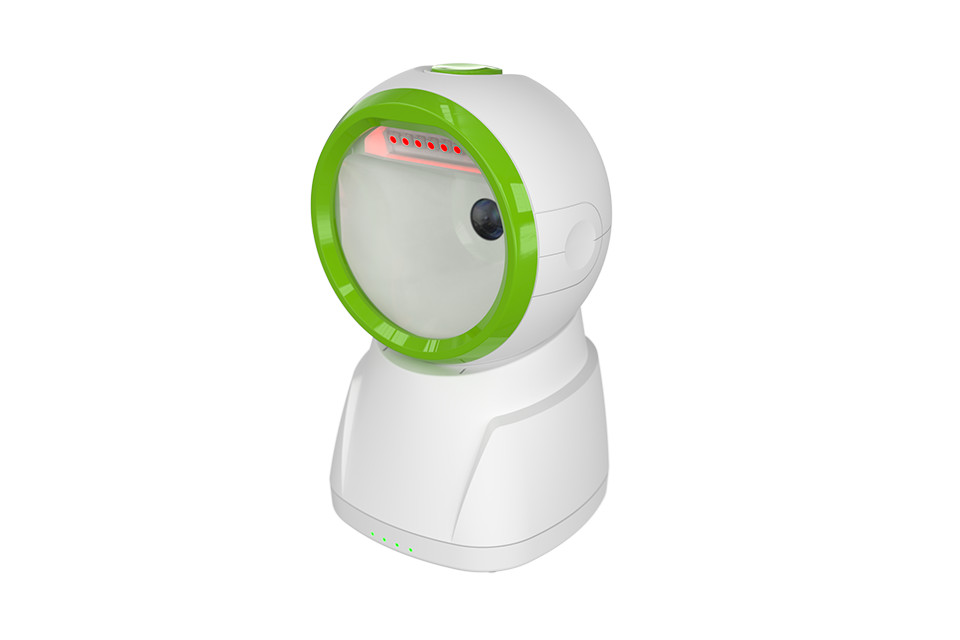

The DT-8600BT is a wireless megapixel presentation barcode scanner designed for checkout counters, kiosks, and access control applications. Featuring a 120fps megapixel CMOS imager and Bluetooth 5.0 and USB communication options, it delivers fast, accurate omnidirectional scanning of both paper and mobile barcodes. With its 2550mAh long-lasting battery, durable design with 1.5 m drop resistance, and plug-and-play operation, the DT-8600BT boosts productivity in retail, ticketing, and secure entry environments.
specification
Communication
Bluetooth
Ver. 5.0 Bluetooth Low Energy, HID (Human Interface Device), SPP (Serial Port Emulation)
USB
USB-KB, USB VCP/CDC (Virtual COM Port), HID (Human Interface Device)
2D Imager Optics
Light source
Red LED (illumination)
Scan method
CMOS area sensor, 1280 x 800 pixels
Scan rate
120fps
Imager field of view
Horizontal 61°, Vertical 41°
Min. resolution at pcs 0.9
3mil
Min. pcs value
20%
Depth of field at code 39
14 - 89 mm (3 mil)
Depth of field at EAN13
0 - 230 mm (13 mil)
Depth of field at QR code
0 - 216 mm (20 mil)
Depth of field at DataMatrix
0 - 130 mm (10 mil)
Operating Indicators
Visual
LEDs
Non-visual
Buzzer
Operation
CPU
32-bit RISC
RTC
Supports year, month, day, hour, minute, second
Operation keys
Entry options
1 scan key
Memory
Flash
244 KB
Supported Symbologies
1D code
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 39, Code 93, Code 32, Code 128, GS1-128, MSI, GS1 Databar, GS1 Databar 14, GS1 Databar Expanded, GS1 Expanded Stacked, GS1 Data Bar Limited, GS1 Composite Component A/B/C, Interleaved 2 of 5
2D code
PDF417, MicroPDF417, QR Code, Micro QR Code, Datamatrix, Aztec Code, MaxiCode, Dot Code
Power
Rechargeable battery
Lithium Ion 2550 mAh
Operating time
9.5hrs (Scan 1 time per 5 seconds when fully charged)
Max. charging time
5 hrs
Durability
Temperature in operation
-20°C to 50 °C
Temperature in storag
-40°C to 70 °C
Humidity in operation
5% - 90% (non-condensing)
Humidity in storage
5% - 90% (non-condensing)
Ambient light immunity
Sunlight 100,000 lux max.
Drop test
1.5m drop onto concrete surface
Physical
Dimensions (WxHxD)
90.18mm x 152.69mm x 90.18m
Weight
Scanner: 317g
Regulatory & Safety
CE, FCC, IEC/EN 62471, TELEC, NCC
