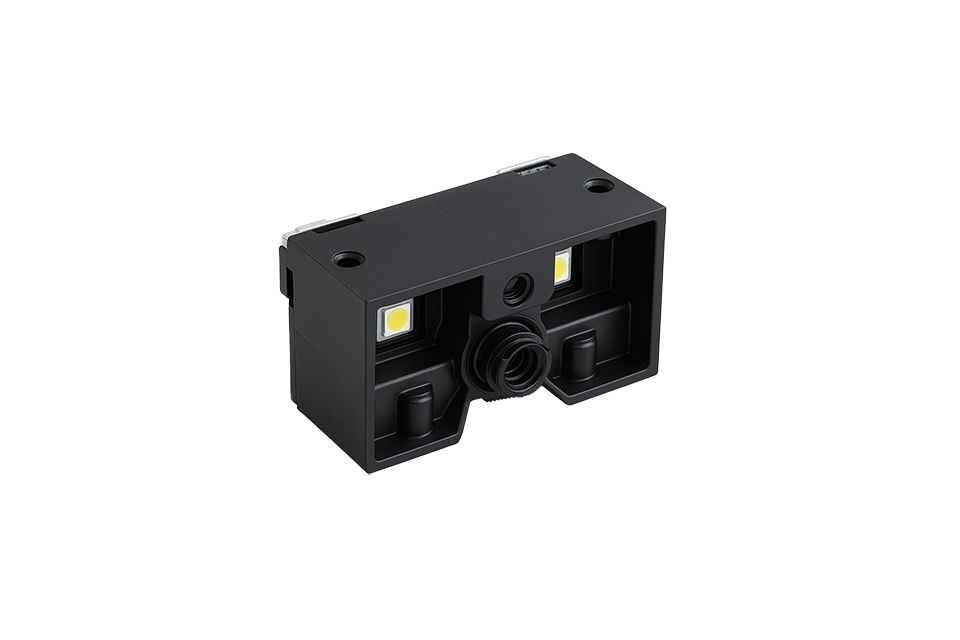

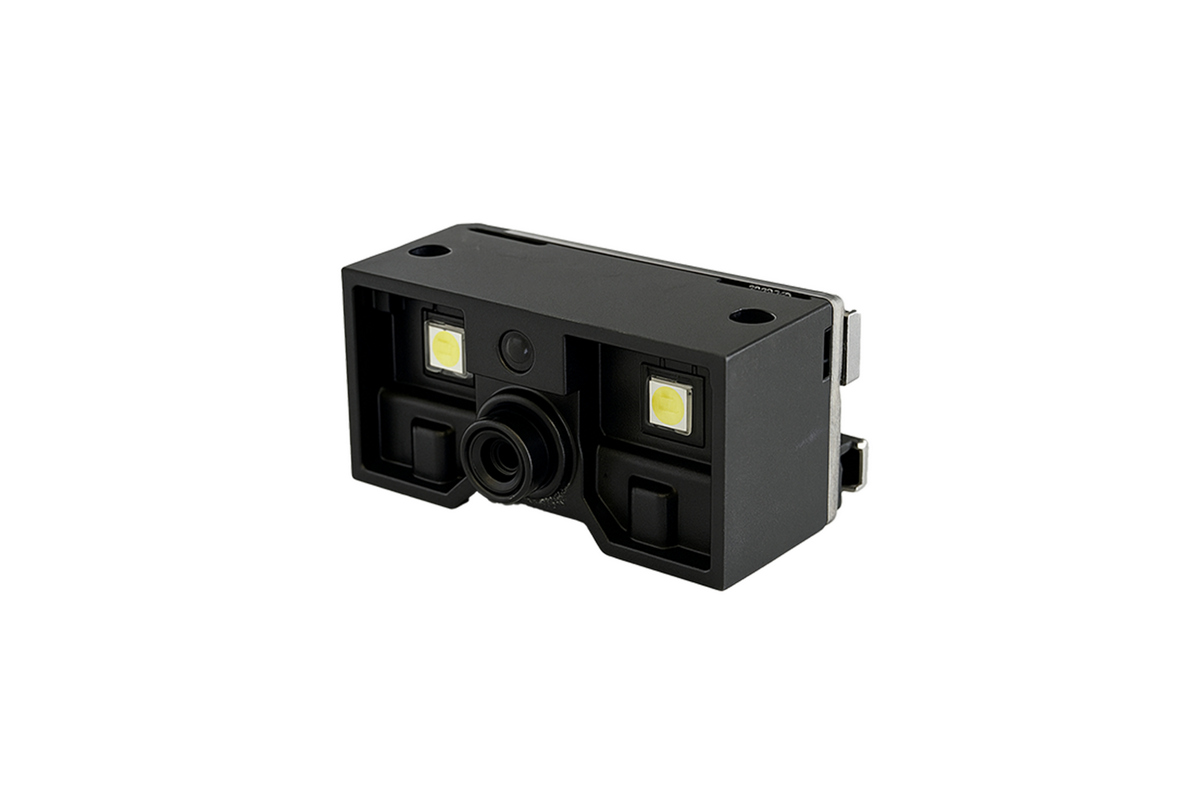

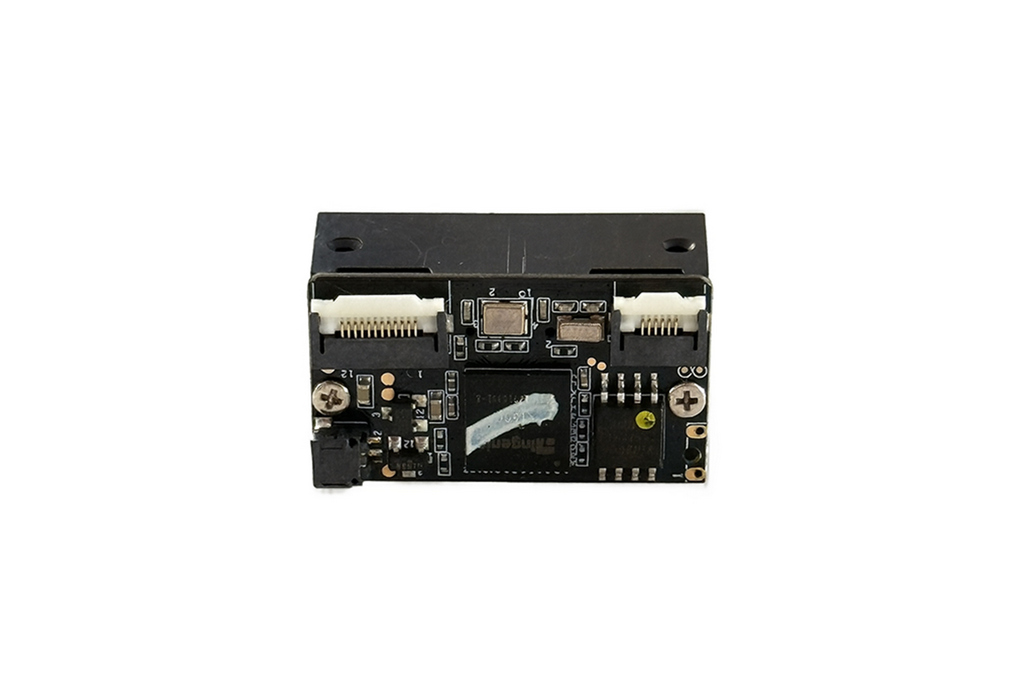

The NUMA SE-3180 is a compact, high-performance 1D/2D barcode scan engine featuring a 1280×800 megapixel CMOS sensor, red LED aimer, and wide field of view for fast and accurate decoding of both printed and on-screen barcodes. With its lightweight 6g design, low power consumption, and USB/TTL interfaces, the SE-3180 is ideal for integration into kiosks, POS terminals, handheld devices, and medical or industrial systems requiring high-speed, high-density barcode scanning.
specification
Interface
USB
USB-KB, USB VCP/CDC (Virtual COM Port)
RS-232
TTL Serial (UART)
2D Imager optics
Light source
Red LED (aiming) and warm white LED (illumination)
Scan method
CMOS area sensor, 1280 x800 pixels
Scan rate
120fps
Imager field of view
Horizontal 56°, Vertical 37°
Min. resolution at pcs 0.9
3mil
Min. pcs value
20%
Depth of field at code 39
30 - 110 mm (3 mil); 40 - 230 mm (10 mil); 60 - 320 mm (20 mil)
Depth of field at QR code
30 - 60 mm (5 mil); 20 - 150 mm (10 mil); 20 - 210 mm (15 mil); 20 - 250 mm (20 mil)
Depth of field at Code 128
30 - 170 mm (7 mil)
Depth of field at EAN/UPC
30 - 270 mm (13 mil)
Depth of field at PDF417
30 - 110 mm (5 mil); 30 - 230 mm (15 mil)
Depth of field at Data Matrix
30 - 90 mm (5 mil); 20 - 170 mm (10 mil); 30 - 250 mm (15 mil); 30 - 270 mm (20 mil)
Supported Symbologies
1D code
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 39, Code 93, Code 32, Code 128, GS1-128, MSI, GS1 Databar, GS1 Databar 14, GS1 Databar Expanded, GS1 Expanded Stacked, GS1 Data Bar Limited, GS1 Composite Component A/B/C, Interleaved 2 of 5
2D code
PDF417, MicroPDF417, QR Code, Micro QR Code, Datamatrix, Aztec Code, MaxiCode, Dot Code
Power
Voltage requirement
3.3V~ 5V
Current consumption
Max. 250 mA
Standby current
40 mA
Durability
Temperature in operation
-20°C to 50 °C
Temperature in storage
-40°C to 70 °C
Humidity in operation
mA5% - 90% (non-condensing)
Humidity in storage
5% - 90% (non-condensing)
Ambient light immunity
Sunlight 100,000 lux max.
Drop test
Packed in dummy case 1.8 m / 6 ft drop onto concrete surface.
Physical
Dimensions (WxHxD)
30.3mm x 17mm x 13mm
Weight
6g
Regulatory & safety
IEC62471
