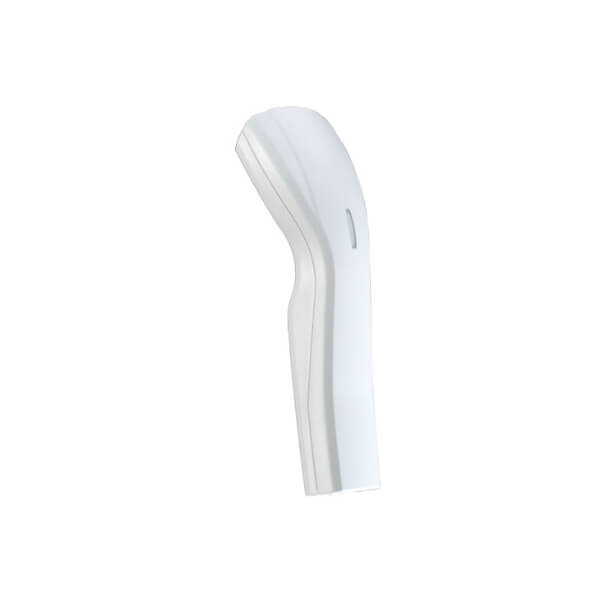

Featuring an aggressive scan engine with no moving parts, the extremely low cost, durable and reliable CCD barcode scanner is perfect solution in medical, retail or light/medium industry. SC-8200 is equipped with powerful 32bit CPU, provides you rapid reading speed and high scanning performance. New streamline-design allows the user to easily target the desired bar code and complete the data transmission with a simple press of button. It can be set up to vibration mode when quiet environment is needed. LED lights can be set with the environment needs to On or Off.
specification
General
Interface
USB-HID / USB-COM / RS-232
Barcode supported
All UPC/EAN/JAN, EAN128 Code, Code 39, Code 39 Full ASCII, Code32 / Italian Pharmacode, Code 128, CODABAR/NW7, Interleave 2 of 5, Industrial 2 of 5, Matrix 2 of 5, MSI/PLESSEY, Telepen, Code 93, Code 11, China Postage, GS1 DataBar
Optical
Optical sensor
2500 pixels
Light Source
Red LED (660mm)
Resolution
4 mil
Depth of Field
5 – 200mm
Scan rate
270 scans/sec
PCS
30%
Indicator
Beeper and LED
Electrical
Voltage
DC 5V
Scanning currents
50 mA
Standby currents
30 mA
Environment
Operating temperature
-20°C to 55°C (-4 ℉ to 131℉)
Storage temperature
-40 °C to 70 °C / -40 °F to 158 °F
Operating humidity
10% - 95% RH (Non-condensing)
Storage humidity
10% - 85% RH (Non-condensing)
Shock resistance
1.5m drops
Physical
Weight
180g (w/cable)
Dimensions
164.5mm (D) x 71.7 mm (W) x36.2mm (H)
Housing Material
ABS plastic
Cable
Length: 5ft (150cm) / USB Type: A , RS-232
Warranty
1 year
Certificate
VCCI
