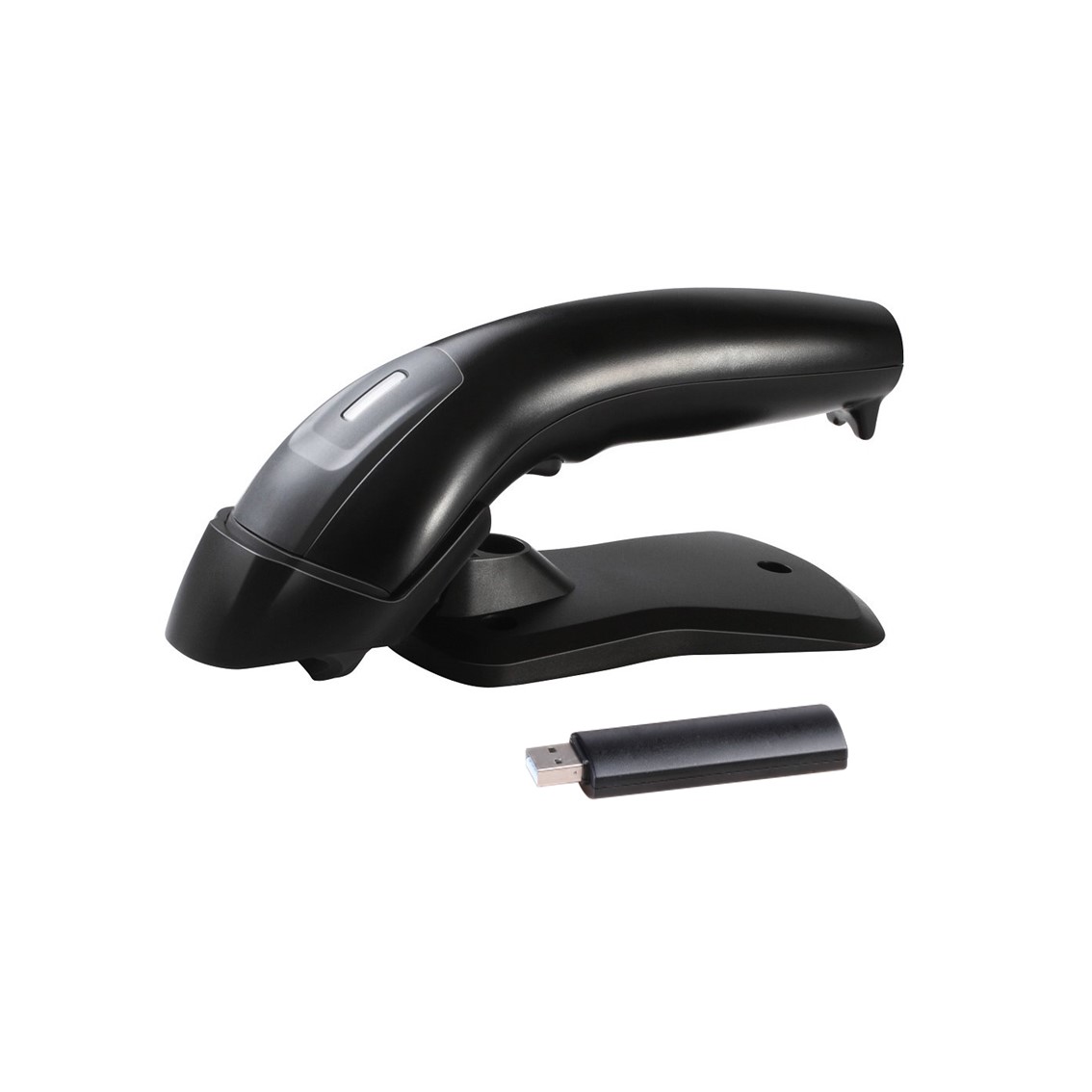

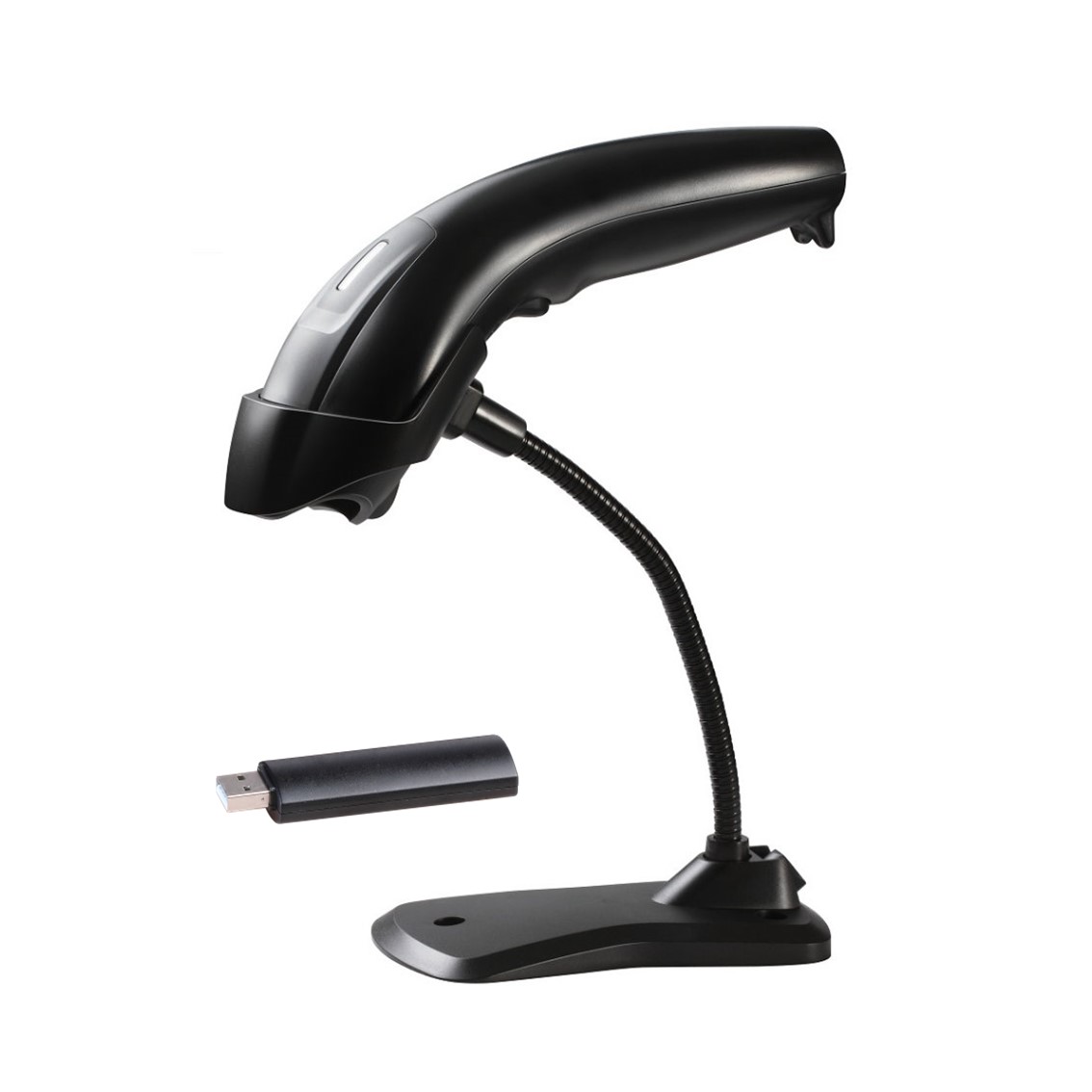

KC-5200ZB combines energy efficiency and high performance with the unprecedented versatility of a wireless barcode scanner. Our innovative energy efficient design and “cradle free” charging system ensures the KC-5200ZB is always operational. KC-5200ZB has a secure range of up to 100 meters and an aggressive and robust linear imager that scans 270 times per second. KC-5200ZB’s high performance, ergonomic design and plug and play installation combines simple reliability with the flexibility and convenience of a wireless scanner.
specification
General
Interface
HID-USB / USB-COM
Barcodes supported
All UPC/EAN/JAN, EAN128 Code, Code 39, Code 39 Full ASCII, Code32 / Italian Pharmacode, Code 128, CODABAR/NW7, Interleave 2 of 5, Industrial 2 of 5, Matrix 2 of 5, MSI/PLESSEY, Telepen, Code 93, Code 11, China Postage, GS1 DataBar
Communication
RF standard
2.4G
Working Distance
100M (Open environment)
Optical
Optical sensor
2500 pixels
Light Source
Red LED (660nm)
Resolution
4 mil
Depth of Field
30 – 200mm (13mil)
Scan rate
270 scans/sec
PCS
45%
Indicator
Beeper and LED
Electrical
Voltage
DC 3.3V ± 5%
Scanning Currents
120mA Typical
Standby currents
70 mA
Environment
Operating temperature
0 to 40 (32℉ to 104℉)
Storage temperature
-40℃ to 70℃ / -40℉ to 158℉
Operating Humidity
10% - 95% RH non-condensing
Humidity
10% - 85% RH non-condensing
Shock resistance
1.5m drops
Battery
Battery Type
Polymer 3.7V
Battery Capacity
1150mAh good for 40,000 scan per charge
Charge
By USB power retrieving cable
Time Of Charge
About 4 hours
Physical
Weight
140g
Dimensions
186mm (L) x 67mm (W) x91mm (H)
Housing Material
ABS plastic
Warranty
1 year
Certificate
CE, FCC, EN-301 489, EN-300 328, EN 60950-1, EN 62368, TELEC
