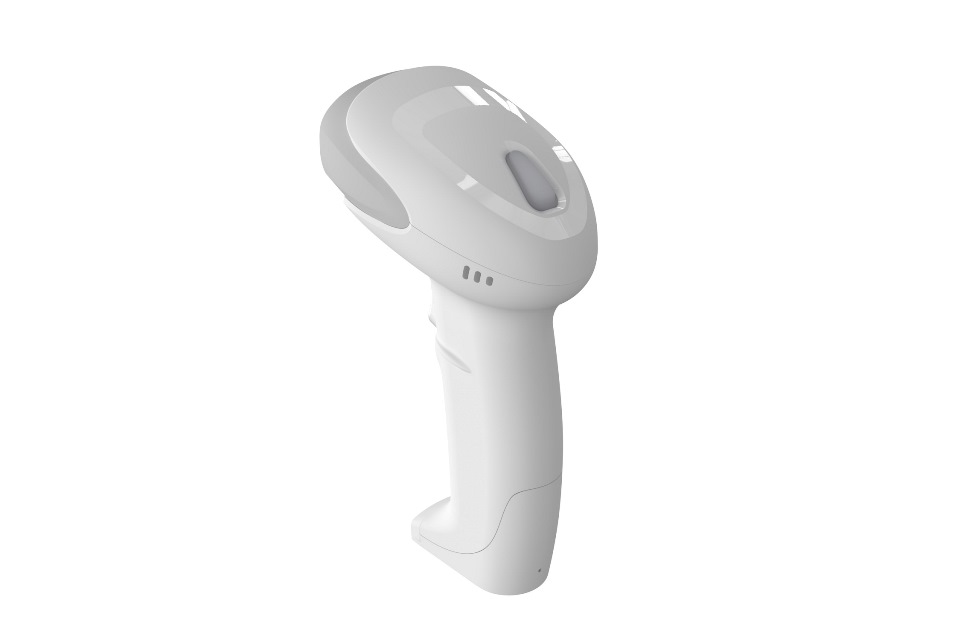

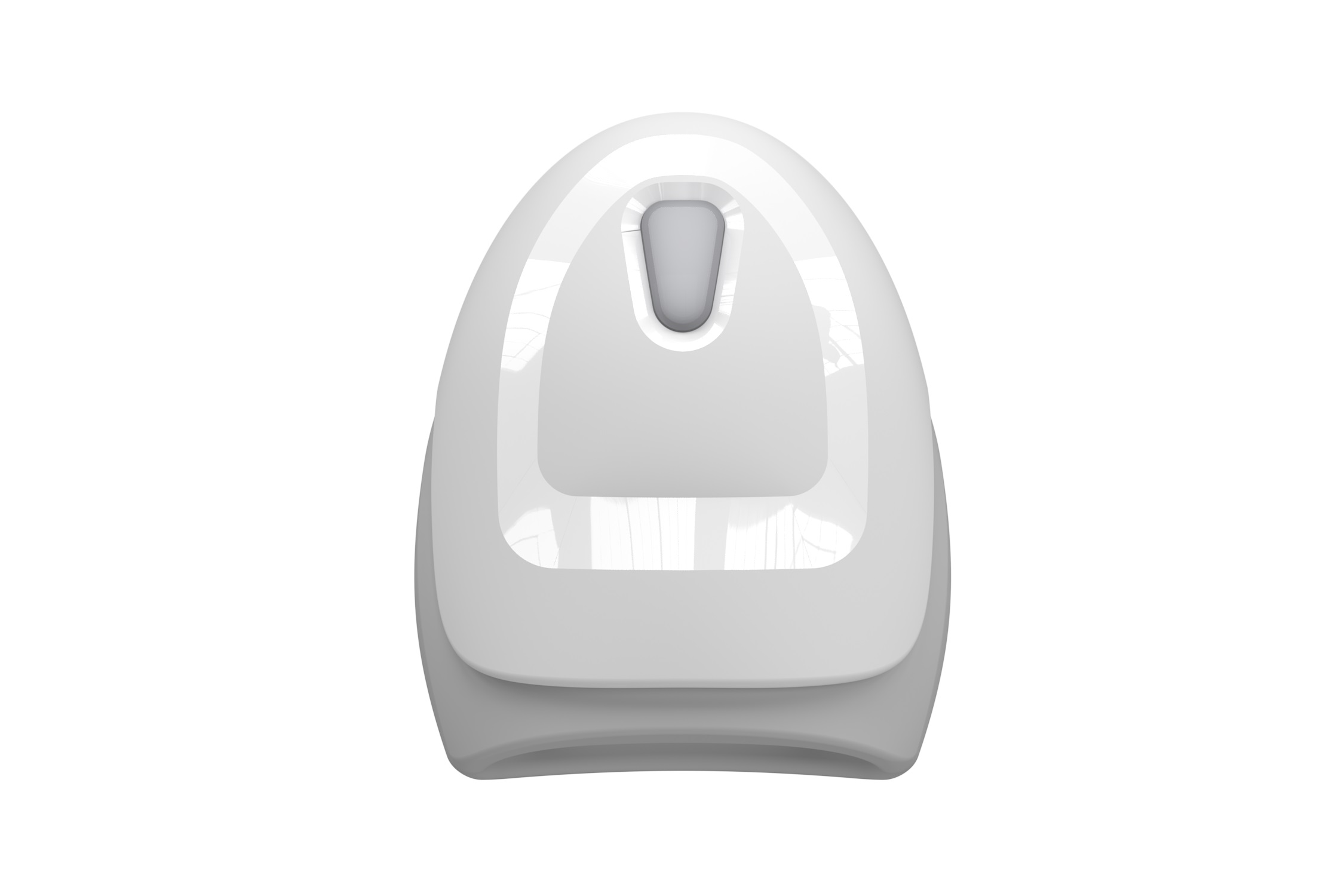

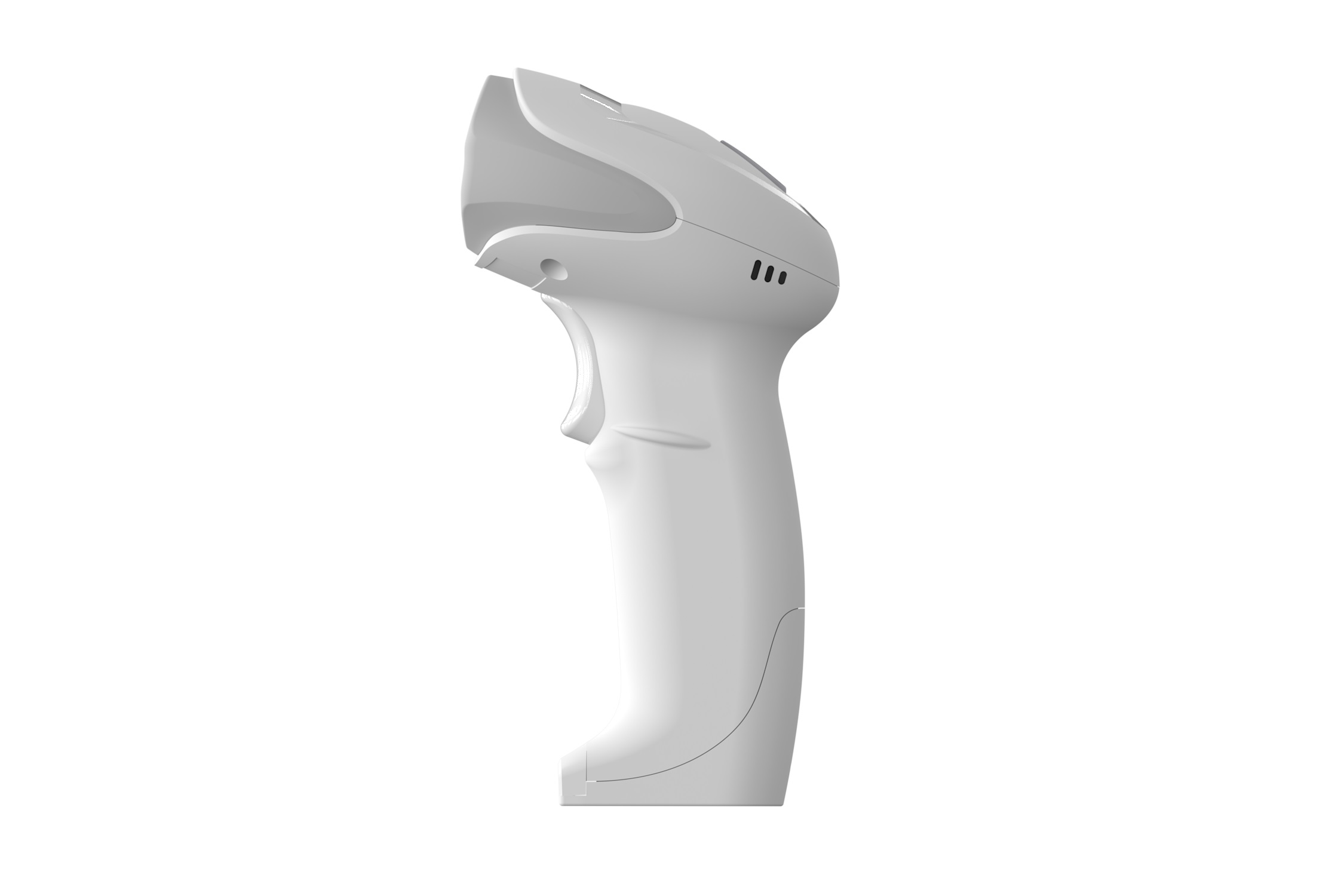

Antimicrobial Area Imaging Scanner
BD-6530 HC
- CMOS 640 x 480 pixel
- Resolution:1D 3 mil , 2D 6.67mil
- Reading 1D & 2D codes
- Multiple interface
Antimicrobial Scanner BD-6530HC is designed specifically for the application in a healthcare environment with antimicrobial protection to resist the growth of odor-and-stain-causing bacteria. It complies with JIS Z2801 : 2010 antimicrobial standard. The housing’s plastic material incorporates a silver inorganic antimicrobial agent that will not wear off during its lifetime and this provides an extra layer of protection against the growth of microorganisms. The BD-6530HC delivers outstanding scanning performance on all common 1D and 2D barcodes which making it also perfect for general purpose applications.
specification
General
Interface
USB-KB / USB-COM / RS-232
Barcodes supported (1D)
UPC-A, UPC-E, EAN-13, EAN-8, Code 128, GS1-128, Code-39, Code-32, Code-93, Pharmacode Codabar/NW7, MSI, Interleaved 2 of 5, GS1 DataBar-14, GS1 DataBar Stacked, GS1 DataBar Limited GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, Composite Component A / B / C
Barcodes supported (2D)
PDF 417, MicroPDF 417, QR Code, Micro QR Code, Data Matrix, Aztec, Maxi Code, Dot Code
Optical
Optical sensor
CMOS area sensor, 640 x 480 pixels
Light Source
610 nm RED LED /White LED 6000- 6,500K
Resolution
3 mil (Code 39), 6.67 mil (Data Matrix , QR Code)
Scan Rate
120 fps
Field of View
Horizontal: 36°; Vertical: 28°
PCS
30%
Indicator
Beeper and LED
Electrical
Voltage
DC 5V
Scanning Currents
130 mA
Standby Currents
95 mA
Environment
Operating Temperature
0℃ to 40℃ (32℉ to 104℉)
Storage Temperature
-40℃ to 70℃ (-40℉ to 158℉)
Operating Humidity
10% - 95% RH (Non-condensing)
Storage Humidity
10% - 85% RH (Non-condensing)
Shock Resistance
1.5m drops
Light Levels
100,000 lux
Physical
Weight
190g (with cable)
Dimensions
82.5mm (L) x 66.4mm (W) x 161.3mm (H)
Housing Material
ABS plastic with Antimicrobial Additives (Silver inorganic antimicrobial agent)
Cable
Length: 5ft (150cm) / USB Type A or C, RS-232
Warranty
1 year
Certificate
CE / FCC
